3XKGN7050F01 05 – FREEZER LINER
Written by
in

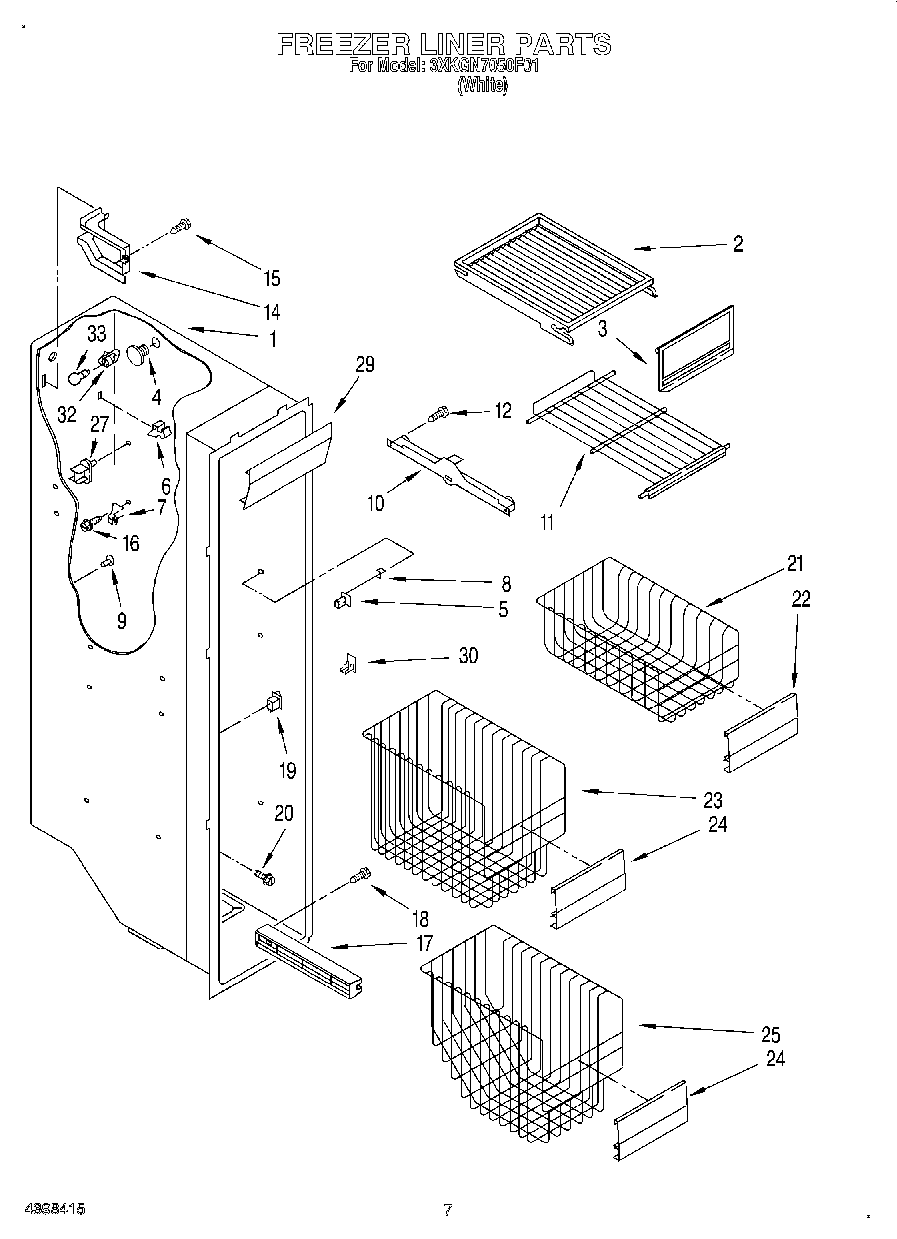

3XKGN7050F01 05 – FREEZER LINER
Products
Position
Product
1
Liner (Not A Serviceable Part)
2
Shelf, Top Compartment
3
WP2171713 Whirlpool Refrigerator Ice Door
4
940014 Whirlpool Refrigerator Primary Button Plug
5
Stud, Front R.S.
6
2215823 Whirlpool Refrigerator Clip
7
4388405 Whirlpool Refrigerator Shelf Stud
8
Stud, Support
9
Grommet
10
W10845583 Whirlpool Refrigerator Track
10
W10845585 Whirlpool Refrigerator Track
11
WP2174267 Whirlpool Refrigerator Wire Shelf
12
718257 Whirlpool Dishwasher Screw
14
Cover, Wiring
15
SCREW
16
W10142289 Whirlpool Air Conditioner Screw
17
Slide, Basket (Left Side (2))
17
Slide, Basket (Right Side (2))
18
W10759522 Whirlpool Screw
19
W11457217 Whirlpool Refrigerator Rocker Switch Combination
20
WP489478 Whirlpool Refrigerator Screw
21
Basket
22
Front, Basket
23
Basket, Tall
24
2305580K Whirlpool Refrigerator Basket Trim
25
Basket, Slope
27
Stud, Shelf (4)
29
2171705 Whirlpool Refrigerator Light Lens
30
Stud, Rear R.S.
32
4387478 Whirlpool Refrigerator Light Socket
33
WP67002552 Whirlpool Refrigerator Light Bulb
←
