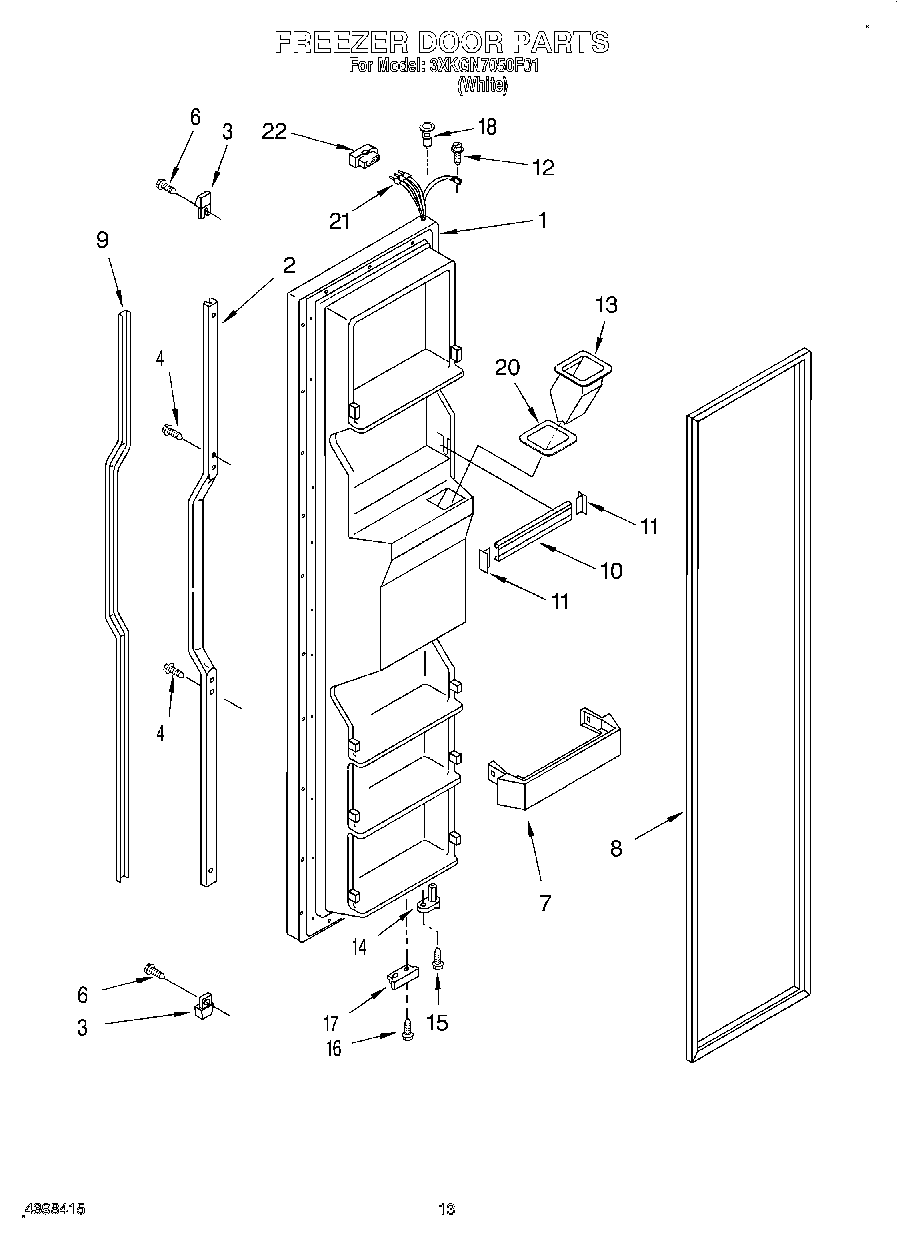

3XKGN7050F01 08 – FREEZER DOOR

3XKGN7050F01 08 – FREEZER DOOR

Written by

in

3XKGN7050F01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Retainer, Insert
3End Cap, Handle
6WP3400852 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Insert, Handle
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12WP488234 Whirlpool Air Conditioner Screw
13Chute, Ice
14WP2182179 Whirlpool Cam Closer
15WP3400012 Whirlpool Refrigerator Screw
16WP999367 Whirlpool Refrigerator Screw
17Bracket, Door Stop (Chrome)
18WP2182181 Whirlpool Refrigerator Thimble
20Seal, Housing
21Wire Harness
22WP2154473 Whirlpool Refrigerator Connector
