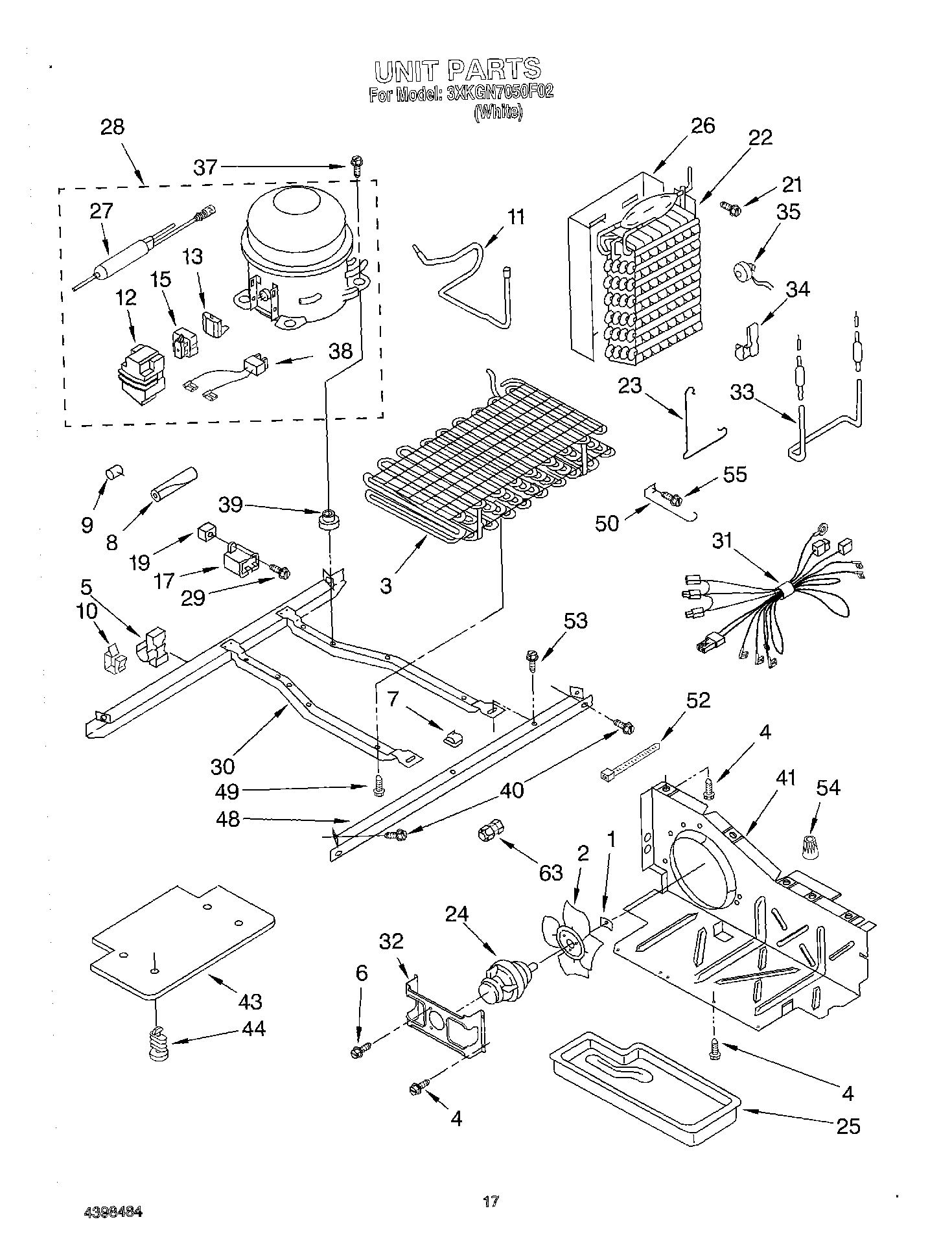

3XKGN7050F02 10 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
7	Clip, Tube (3)
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	W10169512 Whirlpool Clip
11	WP2205765 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	Overload (Production)
13	2176790 Whirlpool Refrigerator Overload
15	WP2262184 Whirlpool Refrigerator Start Relay
17	WP2201147 Whirlpool Refrigerator Capacitor
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	8201703 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309997 Whirlpool Refrigerator Compressor
29	W11693756 Whirlpool Screw Assembly
30	2304904 Whirlpool Frame Assembly
31	Unit, Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WPW10123653 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
63	VALVE, ACCESS (5/8“)
63	978030 Whirlpool Refrigerator Valve
63	876764 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	WP978025 Whirlpool Refrigerator Valve
63	WP4318044 Whirlpool Refrigerator Connector
