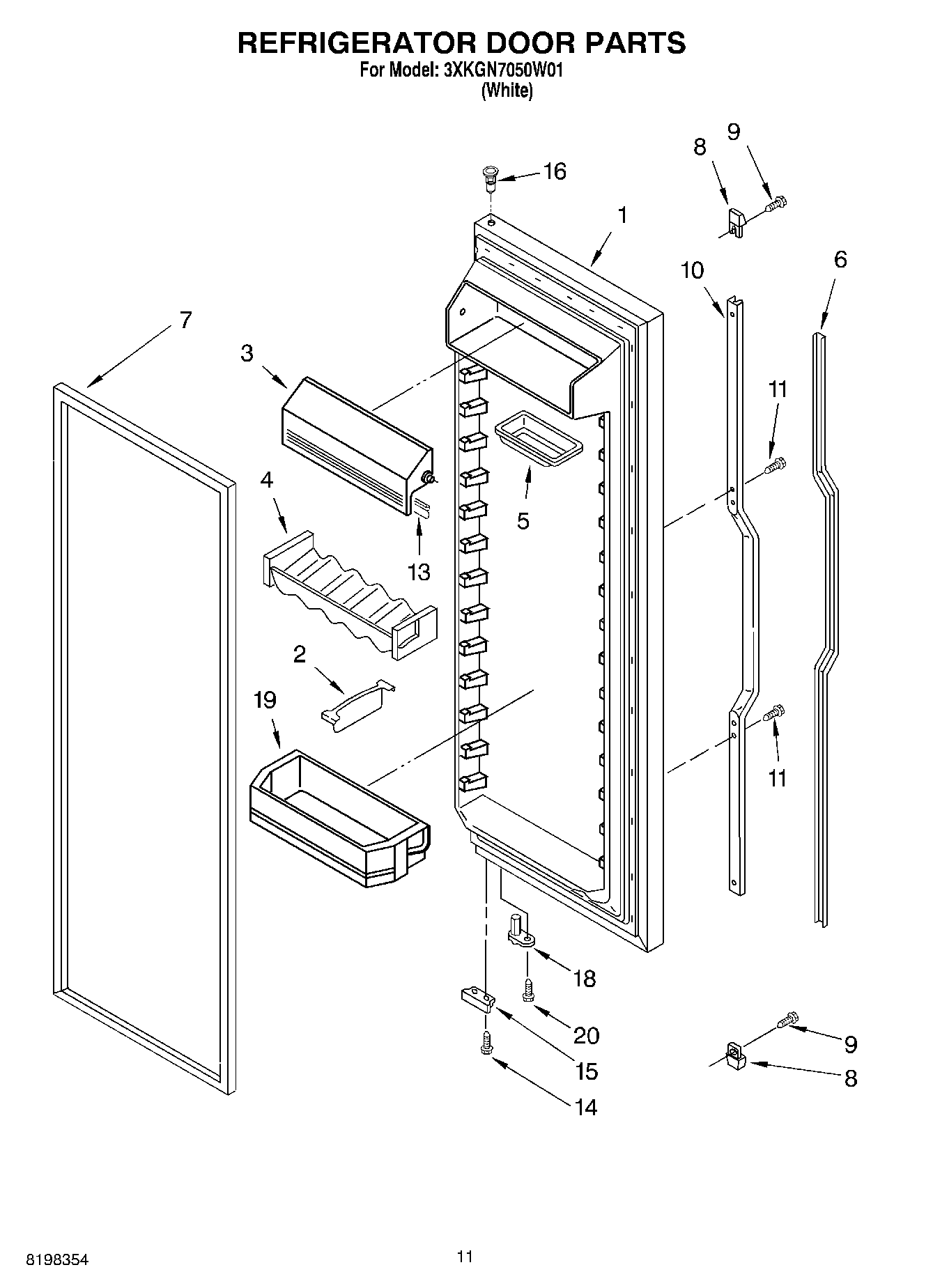

3XKGN7050W01 07 – REFRIGERATOR DOOR

3XKGN7050W01 07 – REFRIGERATOR DOOR

Written by

in

3XKGN7050W01 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes 7) (White)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Insert, Handle
72159075 Whirlpool Door Gasket Seal
8End Cap, Handle
9WP3400852 Whirlpool Refrigerator Screw
10Retainer, Insert
11WP489491 Whirlpool Refrigerator Screw
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16WP2182181 Whirlpool Refrigerator Thimble
18WP2182179 Whirlpool Cam Closer
19Bin, Door Shelf
20WP3400012 Whirlpool Refrigerator Screw
