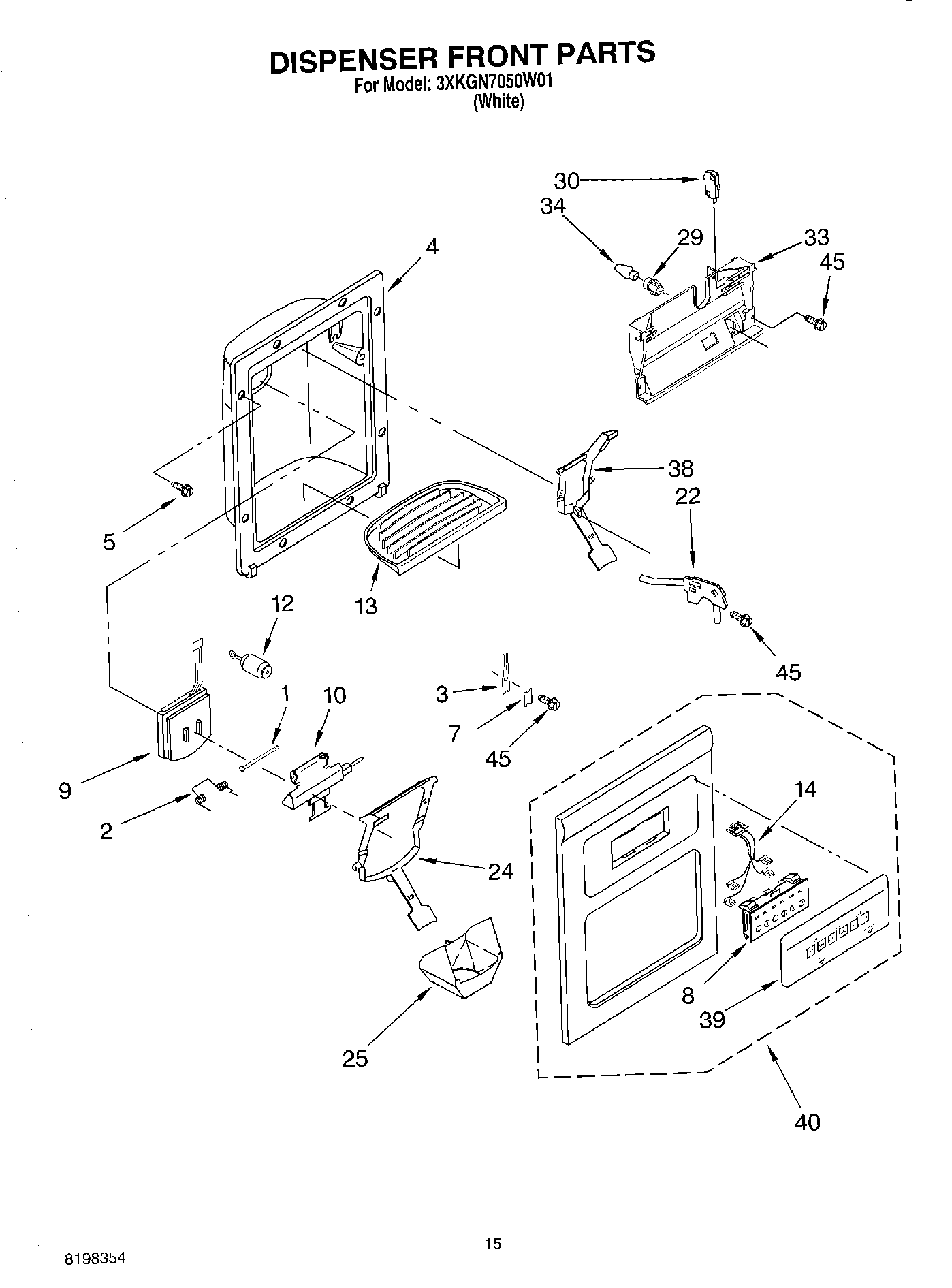

3XKGN7050W01 09 – DISPENSER FRONT

3XKGN7050W01 09 – DISPENSER FRONT

Written by

in

3XKGN7050W01 09 – DISPENSER FRONT

Products

PositionProduct
1WP2196195 Whirlpool Refrigerator Door Pin
2WPW10224328 Whirlpool Refrigerator Spring
3WP2194719 Whirlpool Refrigerator Clip
4Housing Dispenser (Not A Servicable Item)
5WP3196175 Whirlpool Screw
7WP2195051 Whirlpool Refrigerator Clip
8Switch Assembly (Not Available Order No.40)
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12Delay Mechanism
13WP2206670W Whirlpool Dispenser Tray
142311650 Whirlpool Refrigerator Wire Harness
228201537 Whirlpool Water Tubing Assembly
24Lever, Ice Dispenser (White (White Shadow Pad))
25WP2180224 Whirlpool Dispenser Funnel Guide
292180200 Whirlpool Refrigerator Socket
30WP2162361 Whirlpool Switch
33WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34Bulb, Light
38WPW10152858 Whirlpool Refrigerator Dispenser Arm
39Overlay, Front Cover (Not Available Order No.40)
40Front Cover Assembly (Includes Items 8, 14 & 39)
45WP3400906 Whirlpool Refrigerator Screw
