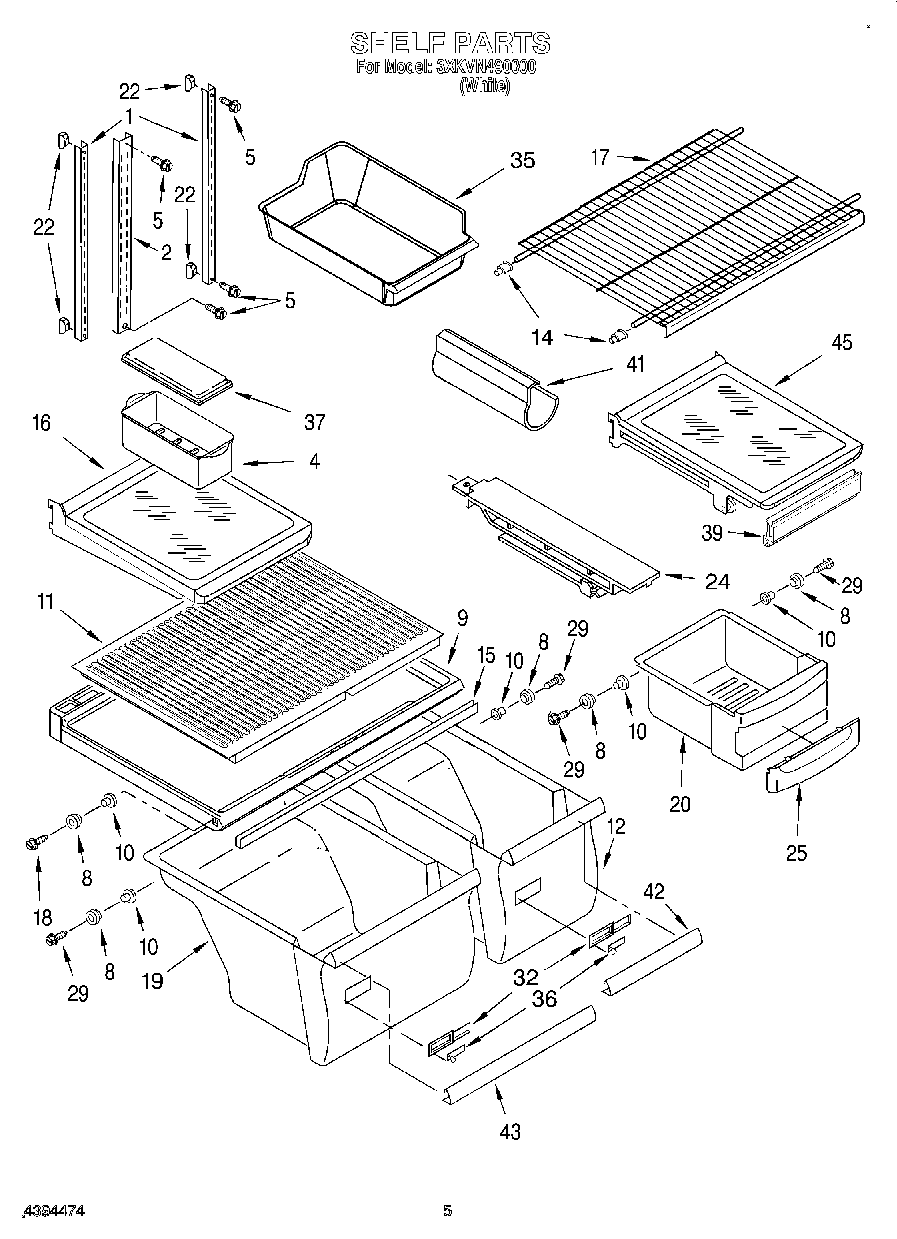

3XKVN490000 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
8	Roller
9	WP2314548 Whirlpool Refrigerator Cover
10	Eyelet, Roller
11	Insert, Crisper Cover
12	W10856580 Whirlpool Crisper Pan
14	2163762 Whirlpool Refrigerator Cup Assembly
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	Pan, Meat (Includes Rollers)
22	520965 Whirlpool Refrigerator Support
24	WP2163835 Whirlpool Track Assembly
25	Window, Meat Pan
29	WP489261 Whirlpool Refrigerator Screw
32	WP2212446 Whirlpool Refrigerator Control Body
35	2254352A Whirlpool Refrigerator Ice Container
36	WP2176222 Whirlpool Refrigerator Slide
37	Cover
39	Gasket, Front
41	W10777924 Whirlpool Refrigerator Wine Rack
42	Trim, Crisper Pan
43	Trim, Crisper Pan
45	Shelf Assembly, Spillguard
