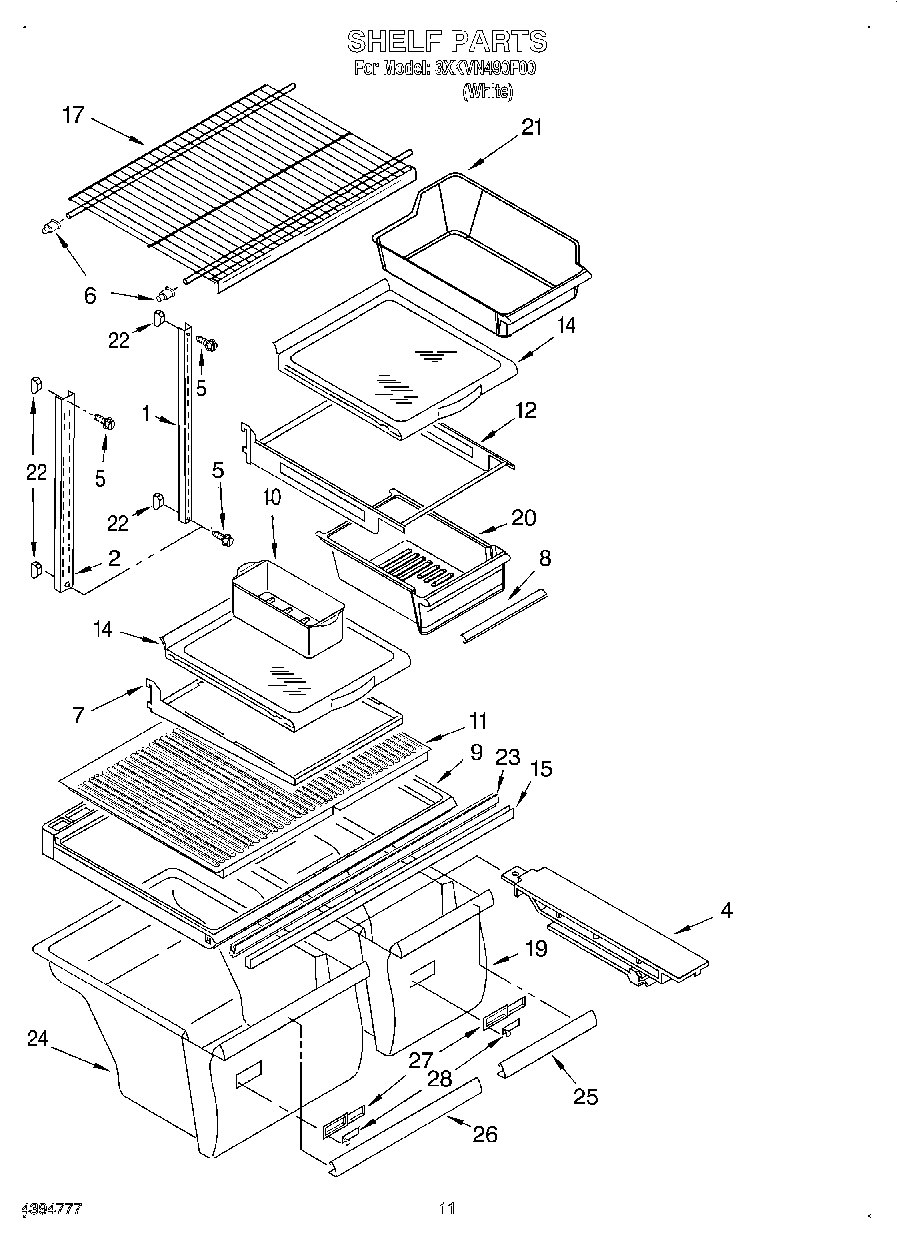

3XKVN490F00 06 – SHELF

3XKVN490F00 06 – SHELF

Written by

in

3XKVN490F00 06 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
4WP2163835 Whirlpool Track Assembly
5W11544659 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Frame Assembly, Shelf (3)
8Trim, Meat Pan
9Shelf, Assembly Spillguard (4)
10W10136387A Whirlpool Refrigerator Egg Container
11Insert, Crisper Cover
12Frame Assembly, Meat Shelf
14Shelf Assembly, Spillguard
15WP2172748 Whirlpool Drawer Support
17WP2176275 Whirlpool Refrigerator Wire Shelf
19W10856580 Whirlpool Crisper Pan
20PAN-MEAT
212254352A Whirlpool Refrigerator Ice Container
22Support, Screw
23Gasket, Crisper Cover
24W10854037 Whirlpool Refrigerator Crisper Pan
25Trim, Crisper Pan
26WP2195341 Whirlpool Refrigerator Pan Trim
27WP2176222 Whirlpool Refrigerator Slide
28WP2212446 Whirlpool Refrigerator Control Body
100FeaturePak (Includes 7,8,10, 12,13,14,20) Also See Door Page.
