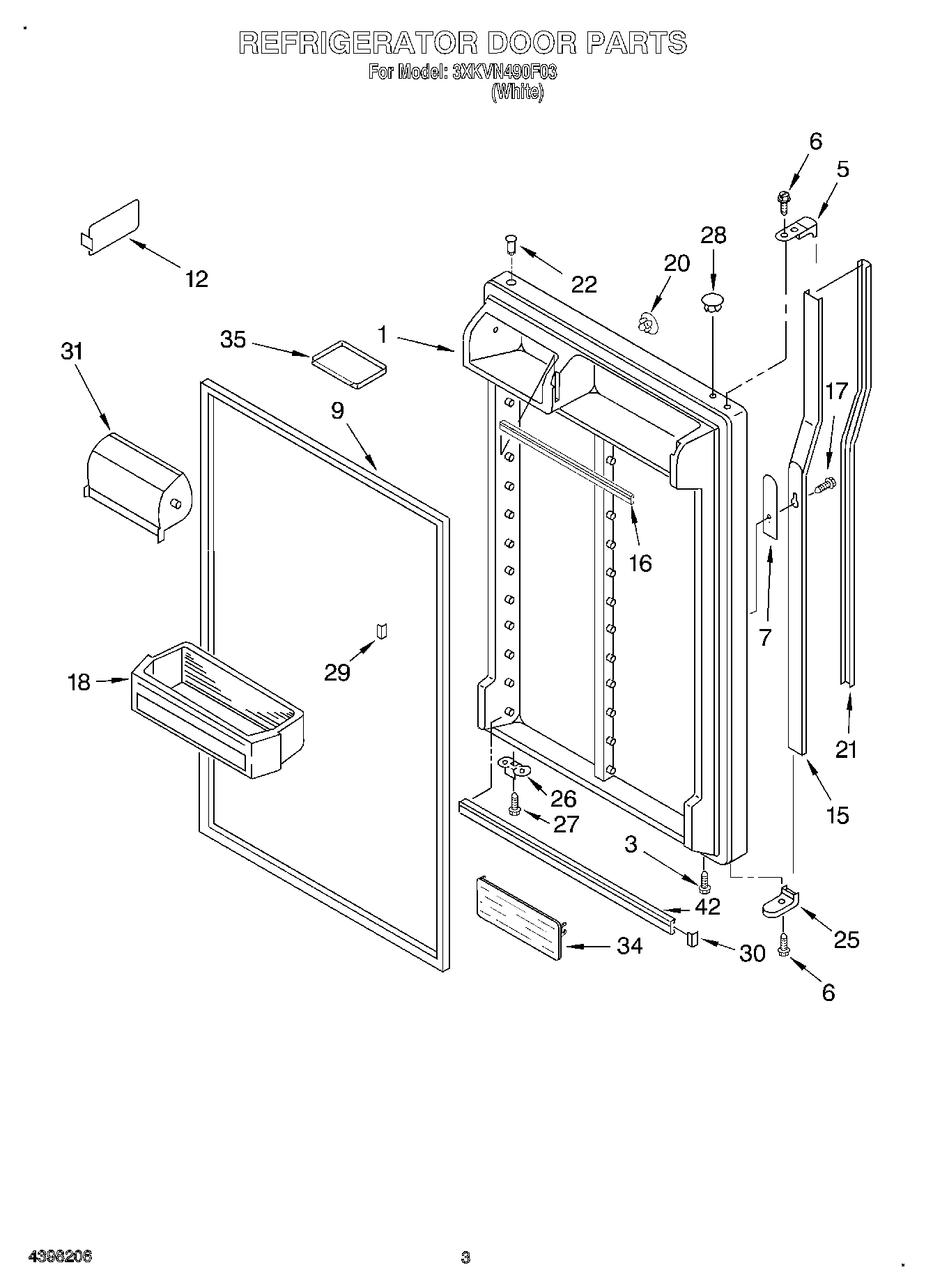

3XKVN490F03 02 – REFRIGERATOR DOORadmin2025-04-26T12:28:24+00:003XKVN490F03 02 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White) |
| 3 | WP8281206 Whirlpool Refrigerator Screw |
| 5 | Endcap |
| 6 | WP489357 Whirlpool Recessed Screw |
| 7 | Spacer |
| 9 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 12 | Divider-Door |
| 15 | Retainer, Insert (White) |
| 16 | TRIM-DOOR |
| 17 | Screw |
| 18 | Door Bin (3) |
| 20 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 21 | Insert, Handle (White) |
| 22 | WP2183003 Whirlpool Thimble |
| 25 | Endcap, Handle (White) |
| 26 | W11745278 Whirlpool Bracket |
| 27 | WP488921 Whirlpool Refrigerator Screw |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 29 | ENDCAP-TRM |
| 30 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 31 | WP2218113 Whirlpool Dairy Door |
| 34 | WP2188234 Whirlpool Shelf |
| 35 | Butter Tray |
| 42 | WPW10421484 Whirlpool Refrigerator Door Trim |
| 100 | FeaturePak (Includes 12,16, 18,29,30,34, 42) Also See Shelf Page. |
