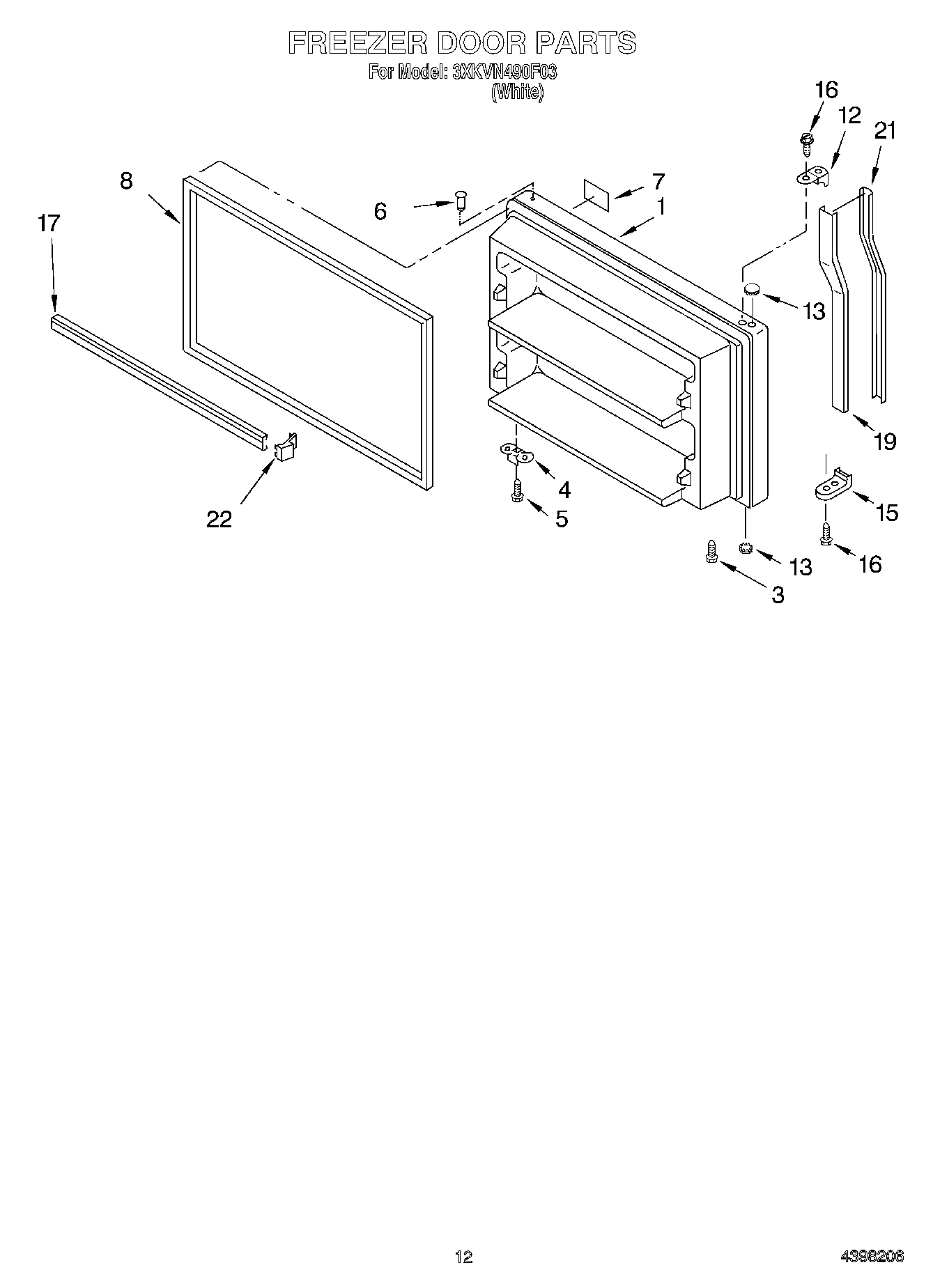

3XKVN490F03 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2183770
	WPL LIT2166904
	WPL LIT2198830
	WPL LIT628371
	WPW10190943 Whirlpool Refrigerator Icemaker
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT677971
1	Freezer Door (Includes Illus. 4, 17 & 18) (White)
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Nameplate
8	2159327 Whirlpool Refrigerator Door Gasket
12	Endcap
13	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
19	Insert, Retainer (White)
21	Insert, Handle (White)
22	TAPE, VINYL (3/4 X 108``)
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	WPL 799833
22	Almond (Uncut)
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	Door Reversal Instructions
22	350930 Whirlpool White Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	ENDCAP
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	833938 Whirlpool Refrigerator Terminal
22	WPL 799832
22	606755 Whirlpool Refrigerator Bag
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	WPL 876029
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
