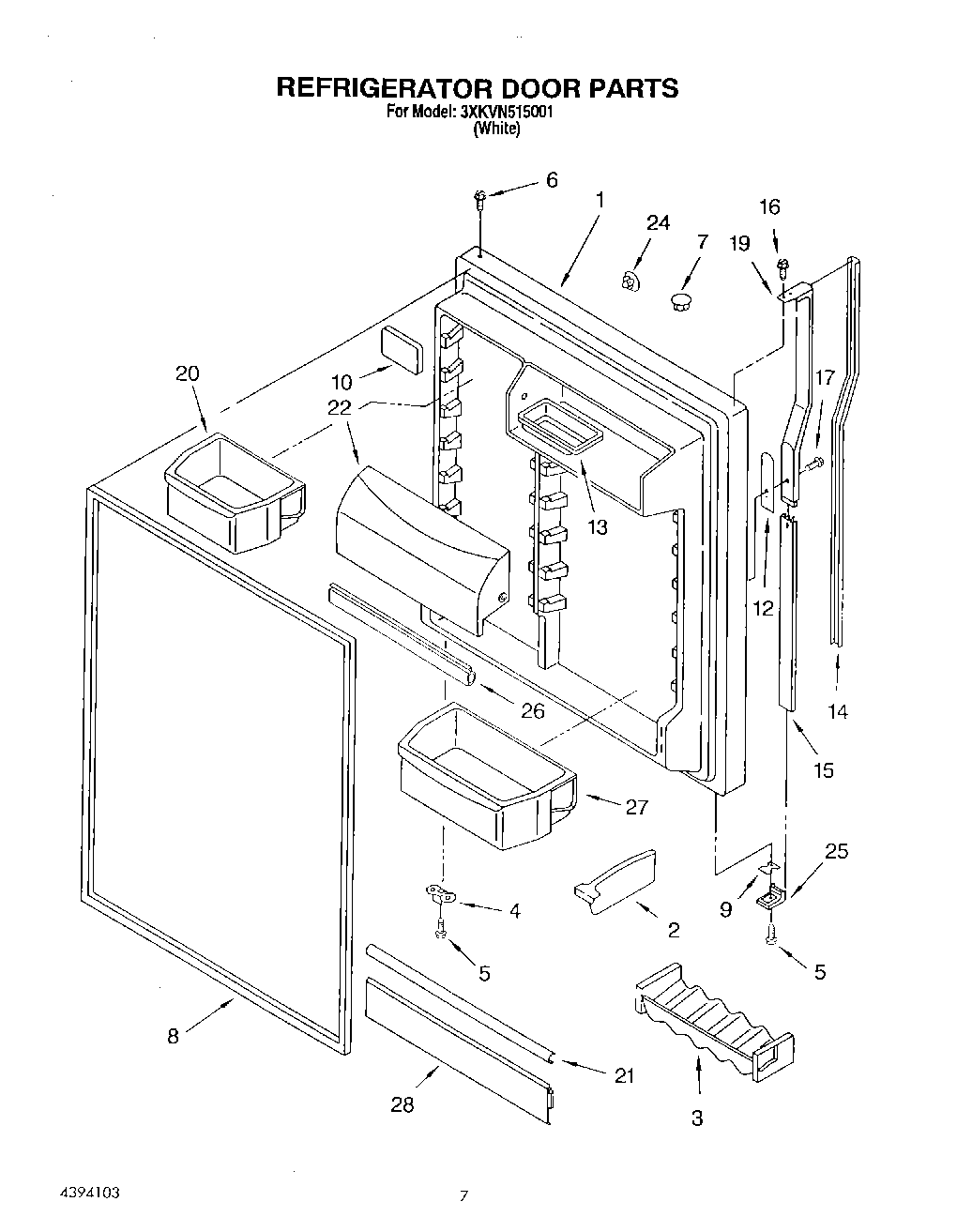

3XKVN515001 04 – REFRIGERATOR DOORadmin2025-04-26T11:36:20+00:003XKVN515001 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.8) |
| 2 | Divider, Door Bin (2) |
| 3 | WPL 1125981 |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 9 | Shim, Bottom |
| 10 | WP2177331 Whirlpool Refrigerator Square Plastic |
| 12 | Spacer, Handle |
| 13 | Butter, Tray |
| 14 | Insert, Handle (White) |
| 15 | Retainer, Insert |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | Handle |
| 20 | Bin, Door Shelf (3) |
| 22 | WP2313637 Whirlpool Cutting Grid Assembly |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 25 | Handle End |
| 26 | Gasket, Door Compartment |
| 27 | Bin, Door Shelf |
| 28 | WPW10421484 Whirlpool Refrigerator Door Trim |
