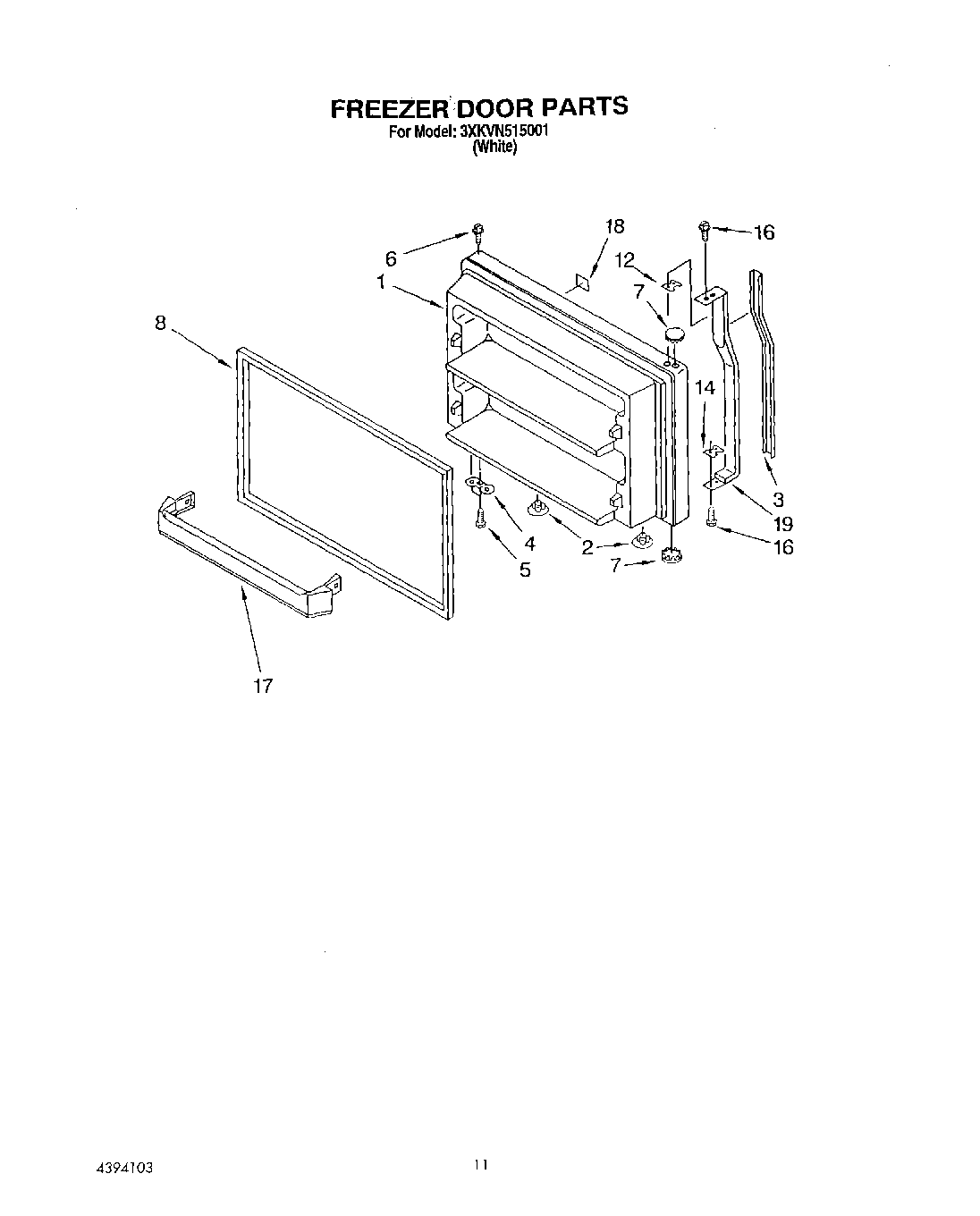

3XKVN515001 06 – FREEZER DOOR, LIT/OPTIONAL

3XKVN515001 06 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

3XKVN515001 06 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2166779
Torx Key
WPL LIT2166904
WPL LIT2166903
1Freezer Door (Includes No.8)
2Hole Plug (2)
3Insert, Handle (White)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic (Service)
12Spacer, Handle
14Shim, Bottom
16WP488920 Whirlpool Refrigerator Screw
17Trivet, Door
18Nameplate
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
19Handle
19Almond (Uncut)
19Door Reversal Instructions
19WPL 876029
19350956 Whirlpool Spray Assembly
1972017 Whirlpool Appliance Touch-Up Paint White
19799344 Whirlpool Refrigerator Paint
19WP72107 Whirlpool Touchup
19212643 Whirlpool Refrigerator Permagum Sealer
19350942 Whirlpool Spray Paint
19511873 Whirlpool Refrigerator Paint
19606755 Whirlpool Refrigerator Bag
19833938 Whirlpool Refrigerator Terminal
19876370 Whirlpool Refrigerator Insulation
19WP503695 Whirlpool Refrigerator Sealer
19WP505587 Whirlpool Refrigerator Sealer
19WP542638 Whirlpool Refrigerator Grease
19TAPE, VINYL (3/4 X 108“)
19CEMENT, ALUMILASTIC (1 1/4 OZ.)
19WPL 799832
19WPL 799833
19350930 Whirlpool White Spray Paint
