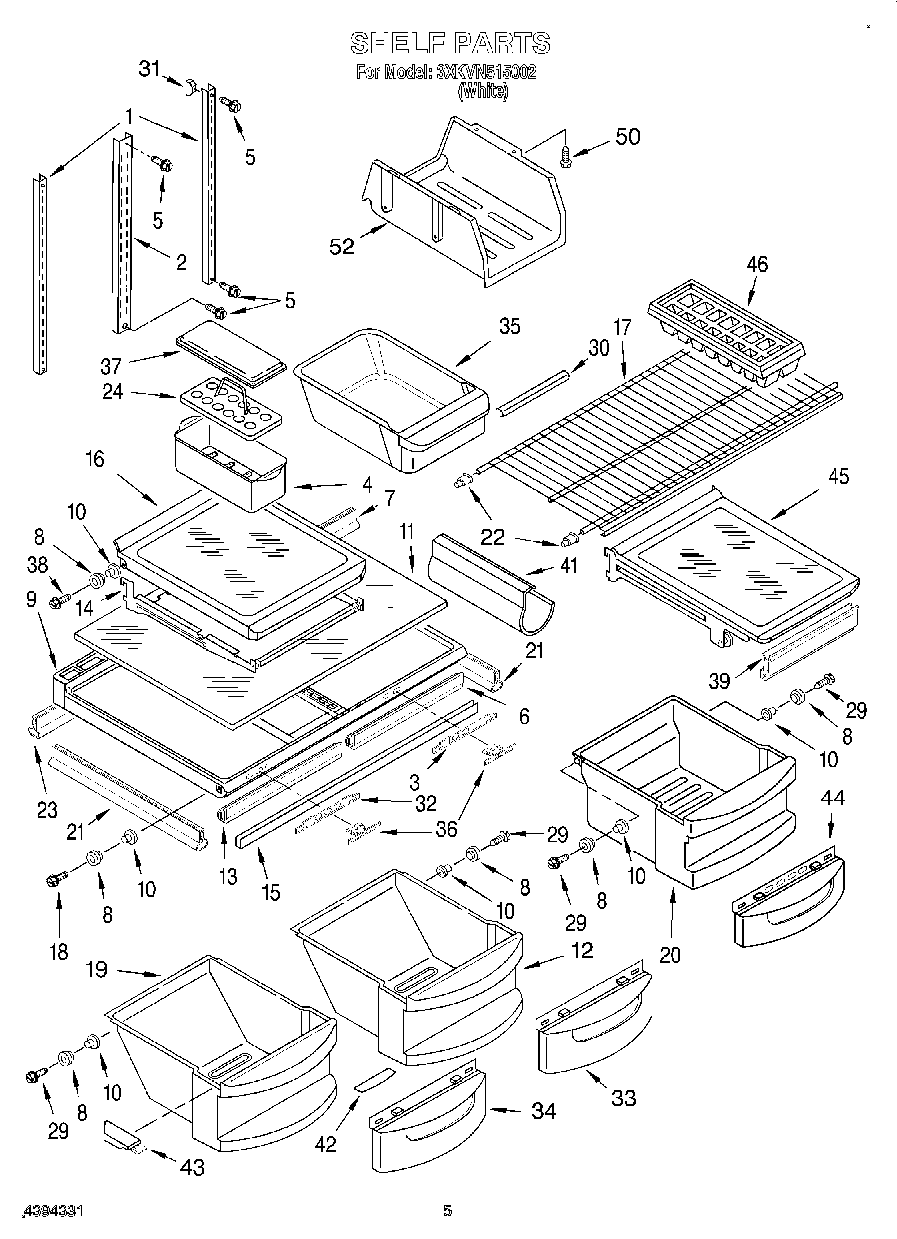

3XKVN515002 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Slide, Humidity
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Crisper Cover (Rear)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Pan, Crisper (Includes Rollers and Window)
14	Frame Assembly, Spillguard
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes 3, 7, 8, 10, 12, 29)
20	Pan, Meat (Includes Rollers and Window)
21	Gasket, Crisper Cover (Side) (4)
22	2163762 Whirlpool Refrigerator Cup Assembly
23	Gasket, Pan Cover-Rear
24	WP2177817 Whirlpool Refrigerator Egg Container
29	WP489261 Whirlpool Refrigerator Screw
30	Trim, Ice Bucket
31	520965 Whirlpool Refrigerator Support
32	Slide, Humidity
33	Window
34	Window
35	Ice Cube Pan
36	Button, Humidity Control
37	Cover
38	Screw
39	Gasket, Front
41	W10777924 Whirlpool Refrigerator Wine Rack
42	Nameplate
43	Cap, Crisper (Right Side)
43	Cap, Crisper (Left Side)
44	Window, Meat Pan
45	Shelf Assembly, Spillguard
46	WP841180A Whirlpool Microwave Glass Turntable Tray
50	WP489442 Whirlpool Refrigerator Screw
52	Shelf
