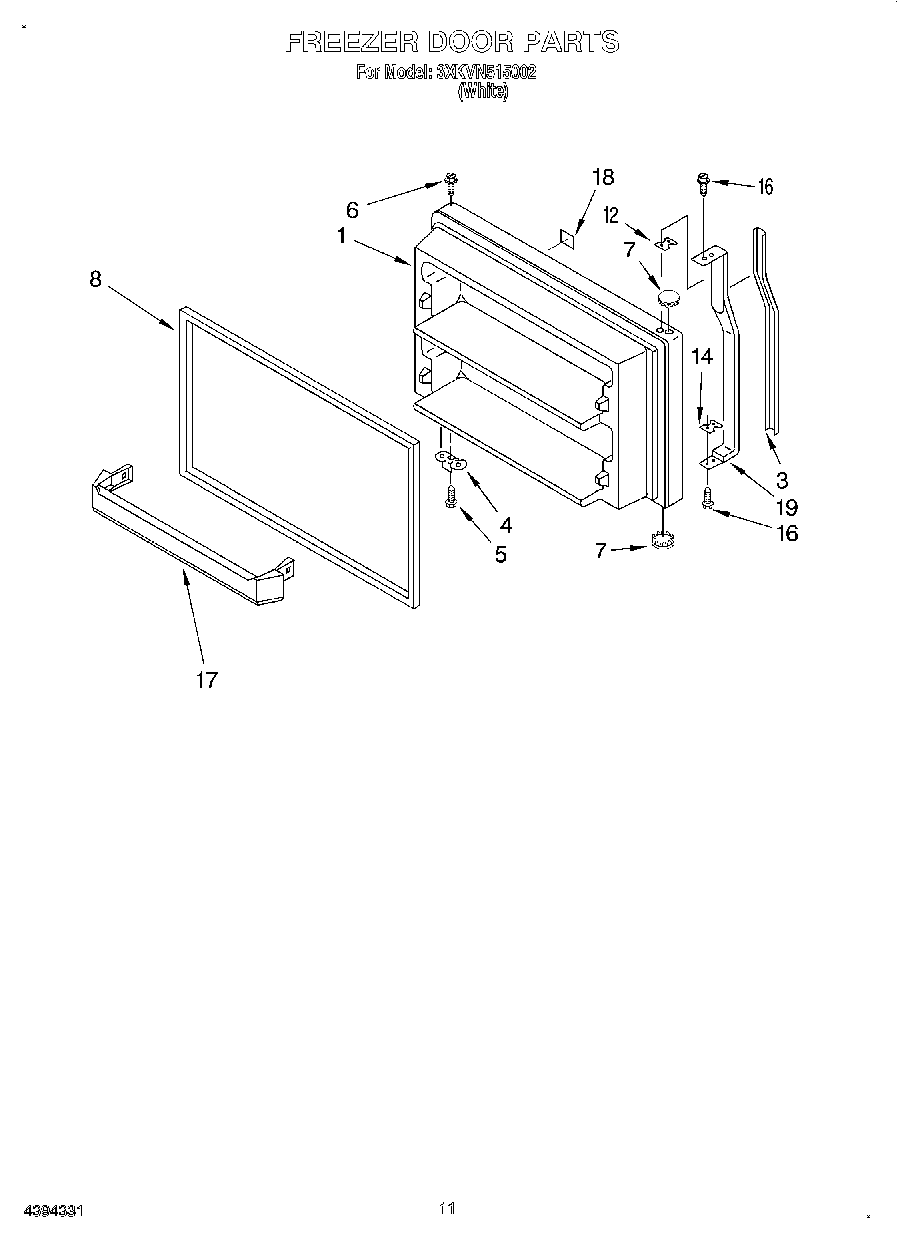

3XKVN515002 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2183770
	Torx Key
	WPL LIT2166904
	WPL LIT2193093
1	Freezer Door (Includes No.6 & No.8) (White)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trivet, Door
18	Nameplate
19	285006 Whirlpool Spray
19	Handle
19	72032 Whirlpool Touch Up Paint Black
19	Door Reversal Instructions
19	WPL 876029
19	WPL 799833
19	350956 Whirlpool Spray Assembly
19	72017 Whirlpool Appliance Touch-Up Paint White
19	799344 Whirlpool Refrigerator Paint
19	WP72107 Whirlpool Touchup
19	Almond (Uncut)
19	212643 Whirlpool Refrigerator Permagum Sealer
19	350942 Whirlpool Spray Paint
19	511873 Whirlpool Refrigerator Paint
19	606755 Whirlpool Refrigerator Bag
19	833938 Whirlpool Refrigerator Terminal
19	876370 Whirlpool Refrigerator Insulation
19	WP503695 Whirlpool Refrigerator Sealer
19	WP505587 Whirlpool Refrigerator Sealer
19	WP542638 Whirlpool Refrigerator Grease
19	TAPE, VINYL (3/4 X 108“)
19	CEMENT, ALUMILASTIC (1 1/4 OZ.)
19	WPL 799832
19	350930 Whirlpool White Spray Paint
