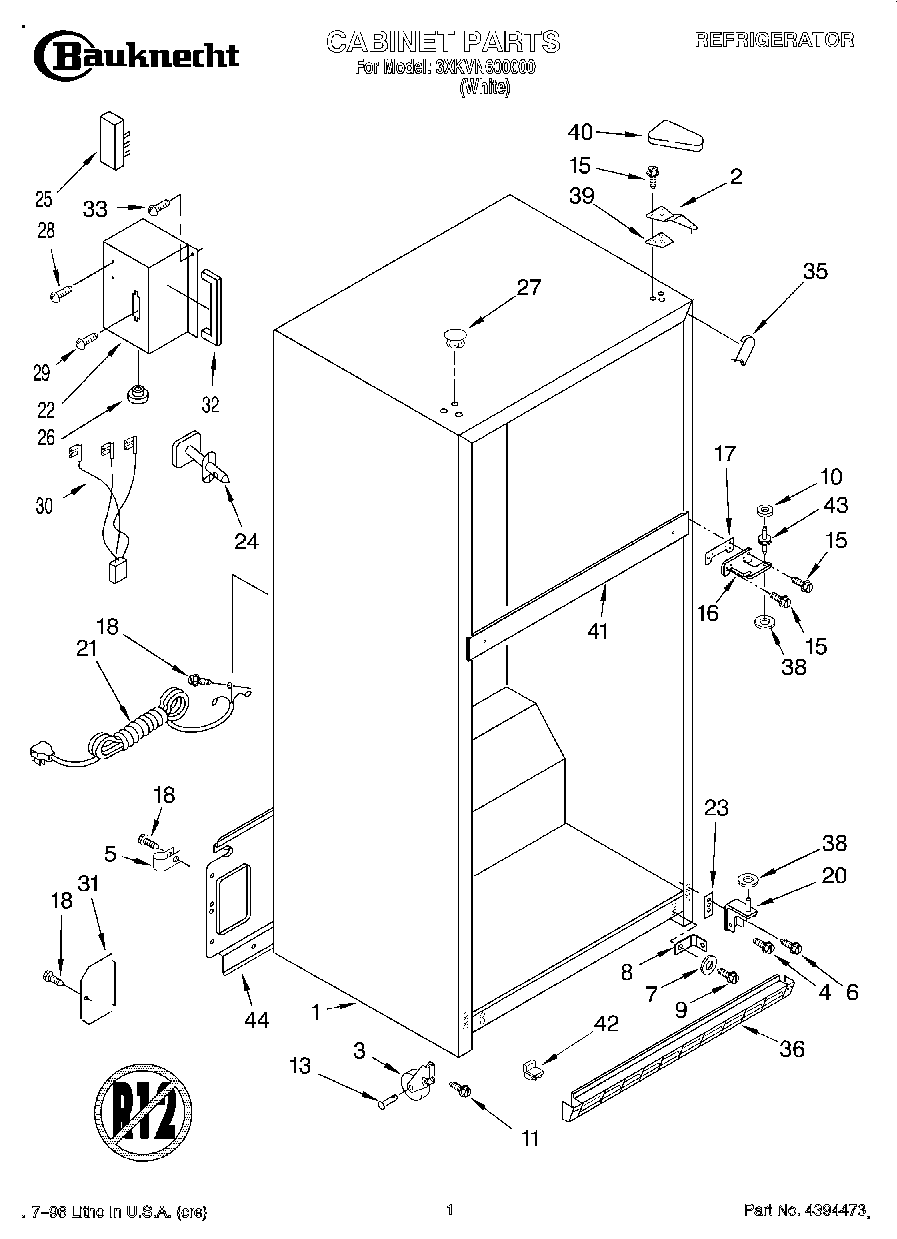

3XKVN600000 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Hinge (Top)
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	489348 Whirlpool Refrigerator Tube Clamp
6	Screw
8	Bracket, Bottom Hinge
9	Screw
10	WP487576 Whirlpool Washer
11	Screw
13	W11594405 Whirlpool Axle
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP489464 Whirlpool Refrigerator Screw
20	Hinge Butt
21	Service Cord
22	Enclosure, Term.
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
25	Terminal Block
26	Bushing
27	WP2151652 Whirlpool Refrigerator Button Plug
28	WP489399 Whirlpool Refrigerator Screw
29	WPW10272364 Whirlpool Refrigerator Screw
30	Wire Assembly, Terminal Box
31	Cover, Water Valve
32	Gasket
33	WP250830 Whirlpool Refrigerator Screw
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille (White)
38	WP489467 Whirlpool Hinge Shim
39	Shim
40	Cover-Hinge (White)
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (White)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
