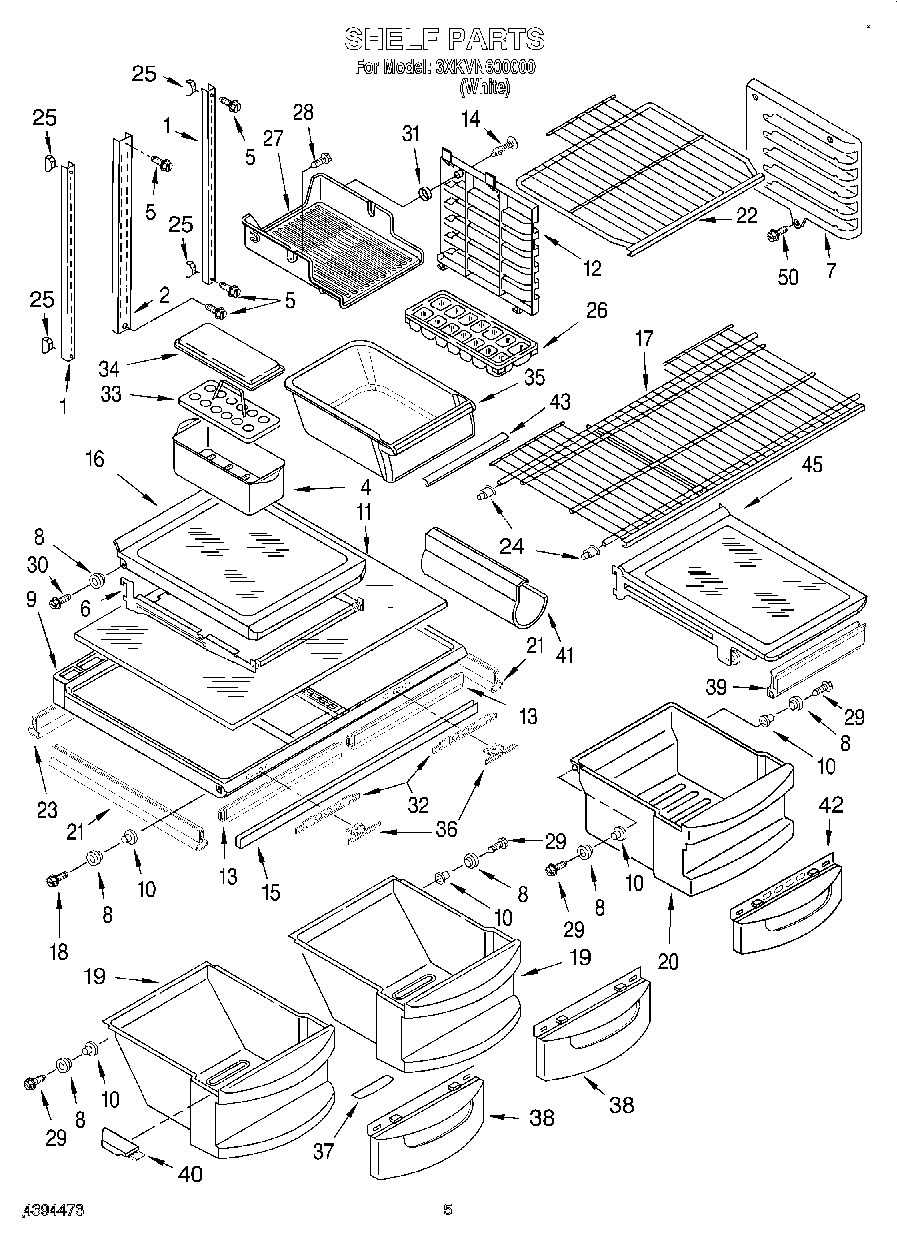

3XKVN600000 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	Frame Assembly, Cantilever
7	Bracket, Shelf Mounting (R.S.)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Bracket, Shelf Mounting (L.S.)
13	WP1125528 Whirlpool Refrigerator Gasket
14	Fastener
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes 3, 7, 8, 10, 12, 29)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
22	Shelf, Freezer (Top)
23	Gasket, Pan Cover-Rear
24	2163762 Whirlpool Refrigerator Cup Assembly
25	520965 Whirlpool Refrigerator Support
26	WP841180A Whirlpool Microwave Glass Turntable Tray
27	Shelf, Ice Tray
29	WP489261 Whirlpool Refrigerator Screw
30	Screw
31	Support, Ice Tray Shelf
32	Slide, Humidity
33	WP2177817 Whirlpool Refrigerator Egg Container
34	Cover
35	Ice Cube Pan
36	Button, Humidity Control
37	Nameplate
38	Window
39	Gasket, Front
40	Cap, Crisper (Right Side)
40	Cap, Crisper (Left Side)
41	W10777924 Whirlpool Refrigerator Wine Rack
42	Window, Meat Pan
43	Trim, Ice Bucket
45	Shelf Assembly, Spillguard
50	WP489442 Whirlpool Refrigerator Screw
