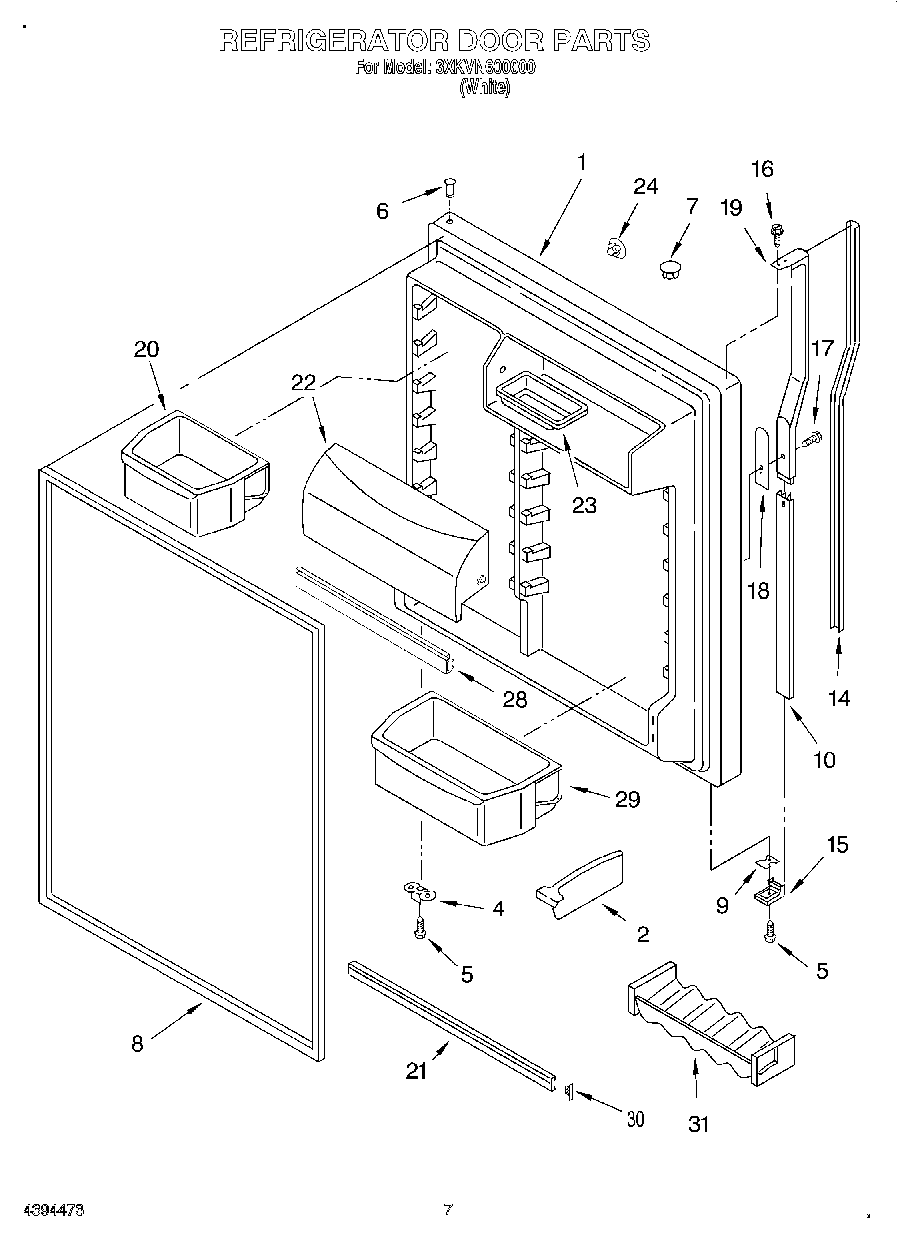

3XKVN600000 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6 & No.8)
2Divider, Door Bin (2)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9Shim, Bottom
10Retainer, Insert
14Insert, Handle (White)
15Handle End
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Spacer, Handle
19Handle
20Bin, Door Shelf (2)
21WPW10421486 Whirlpool Refrigerator Door Trim
22WP2313637 Whirlpool Cutting Grid Assembly
23Butter Tray
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket, Door Compartment
29Bin, Door Shelf
30Plug, Trim (2)
31Beverage Holder
