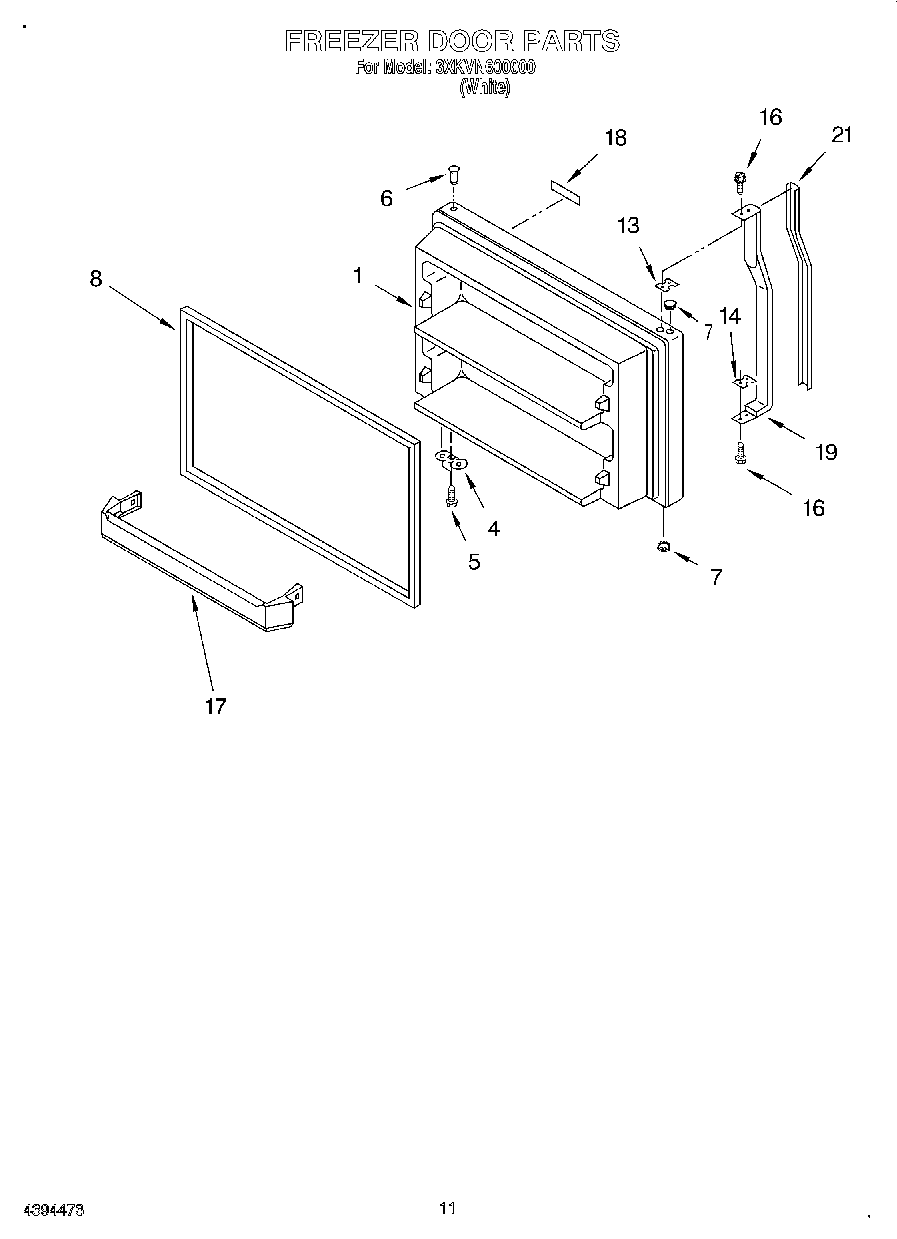

3XKVN600000 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2193091
	WPL LIT2179221
	WPL LIT2183770
	Modular Icemaker Service Sheet
	Torx Key
1	Freezer Door (Includes No.8) (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
13	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door
18	Nameplate
19	Handle
21	WP542638 Whirlpool Refrigerator Grease
21	285006 Whirlpool Spray
21	72032 Whirlpool Touch Up Paint Black
21	Almond (Uncut)
21	Insert, Handle (White)
21	Door Reversal Instructions
21	WPL 876029
21	350956 Whirlpool Spray Assembly
21	72017 Whirlpool Appliance Touch-Up Paint White
21	799344 Whirlpool Refrigerator Paint
21	WP72107 Whirlpool Touchup
21	212643 Whirlpool Refrigerator Permagum Sealer
21	350942 Whirlpool Spray Paint
21	511873 Whirlpool Refrigerator Paint
21	606755 Whirlpool Refrigerator Bag
21	833938 Whirlpool Refrigerator Terminal
21	876370 Whirlpool Refrigerator Insulation
21	WP503695 Whirlpool Refrigerator Sealer
21	WP505587 Whirlpool Refrigerator Sealer
21	TAPE, VINYL (3/4 X 108“)
21	CEMENT, ALUMILASTIC (1 1/4 OZ.)
21	WPL 799832
21	WPL 799833
21	350930 Whirlpool White Spray Paint
