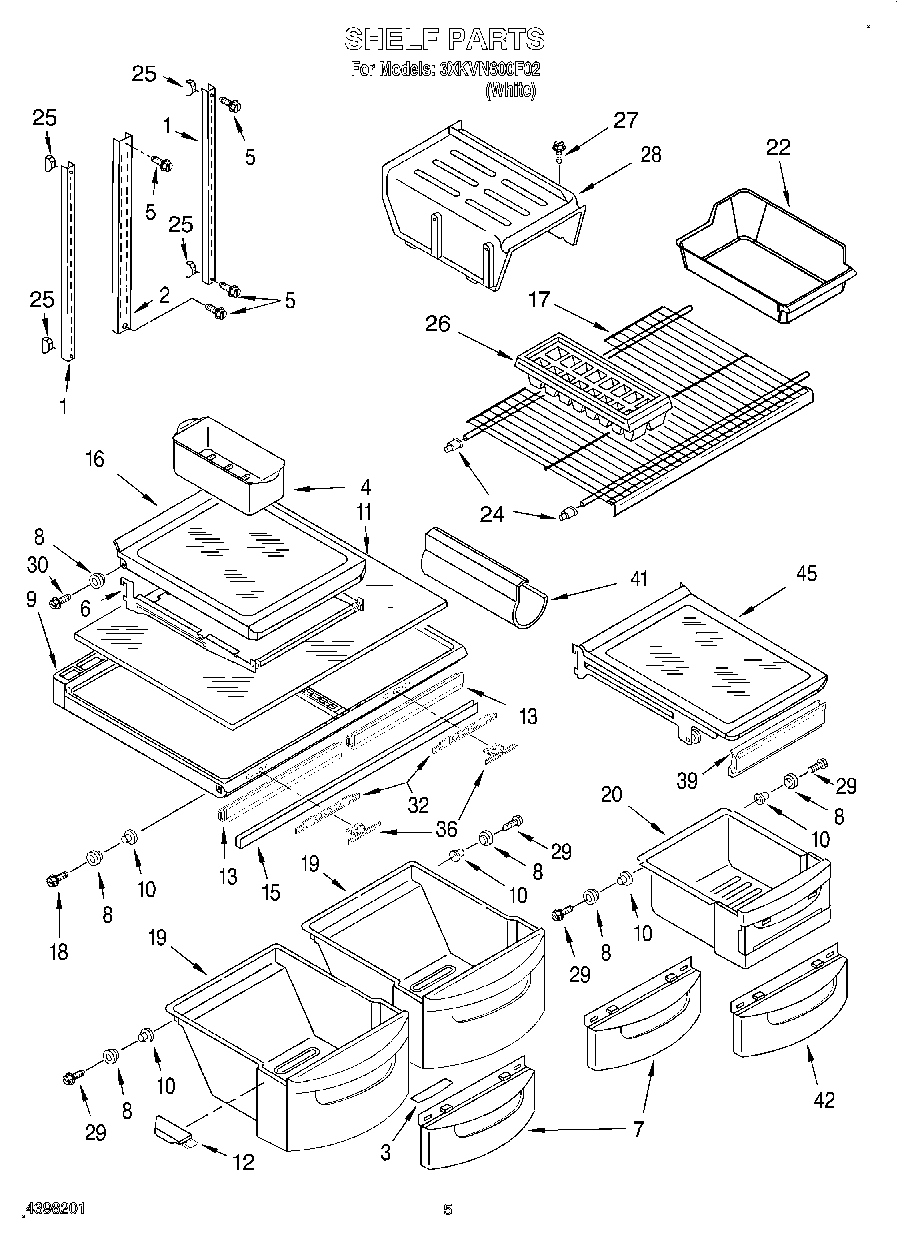

3XKVN600F02 03 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Nameplate
4W10136387A Whirlpool Refrigerator Egg Container
5W11544659 Whirlpool Refrigerator Screw
6Frame Assembly, Cantilever
7Window
8Roller
9Crisper Cover (Includes Rollers)
10Eyelet, Roller
11Glass, Crisper Cover
12Cap, Crisper (Right Side)
12Cap, Crisper (Left Side)
13WP1125528 Whirlpool Refrigerator Gasket
15WP2172748 Whirlpool Drawer Support
16Shelf Assembly, Spillguard (3) (Includes Rollers)
17Shelf, Freezer
18WPW10272364 Whirlpool Refrigerator Screw
19Pan, Crisper (Includes 3, 7, 8, 10, 12, 29)
20Pan, Meat (Includes Rollers)
222254352A Whirlpool Refrigerator Ice Container
242163762 Whirlpool Refrigerator Cup Assembly
25520965 Whirlpool Refrigerator Support
26WP841180A Whirlpool Microwave Glass Turntable Tray
27WP489478 Whirlpool Refrigerator Screw
28Shelf, Ice Tray
29WP489261 Whirlpool Refrigerator Screw
30Screw
32Slide, Humidity
36Button, Humidity Control
39Gasket, Front
41W10777924 Whirlpool Refrigerator Wine Rack
42Window, Meat Pan
45Shelf Assembly, Spillguard
51Featurepak (Includes 3, 20 21, 23, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts page.)
