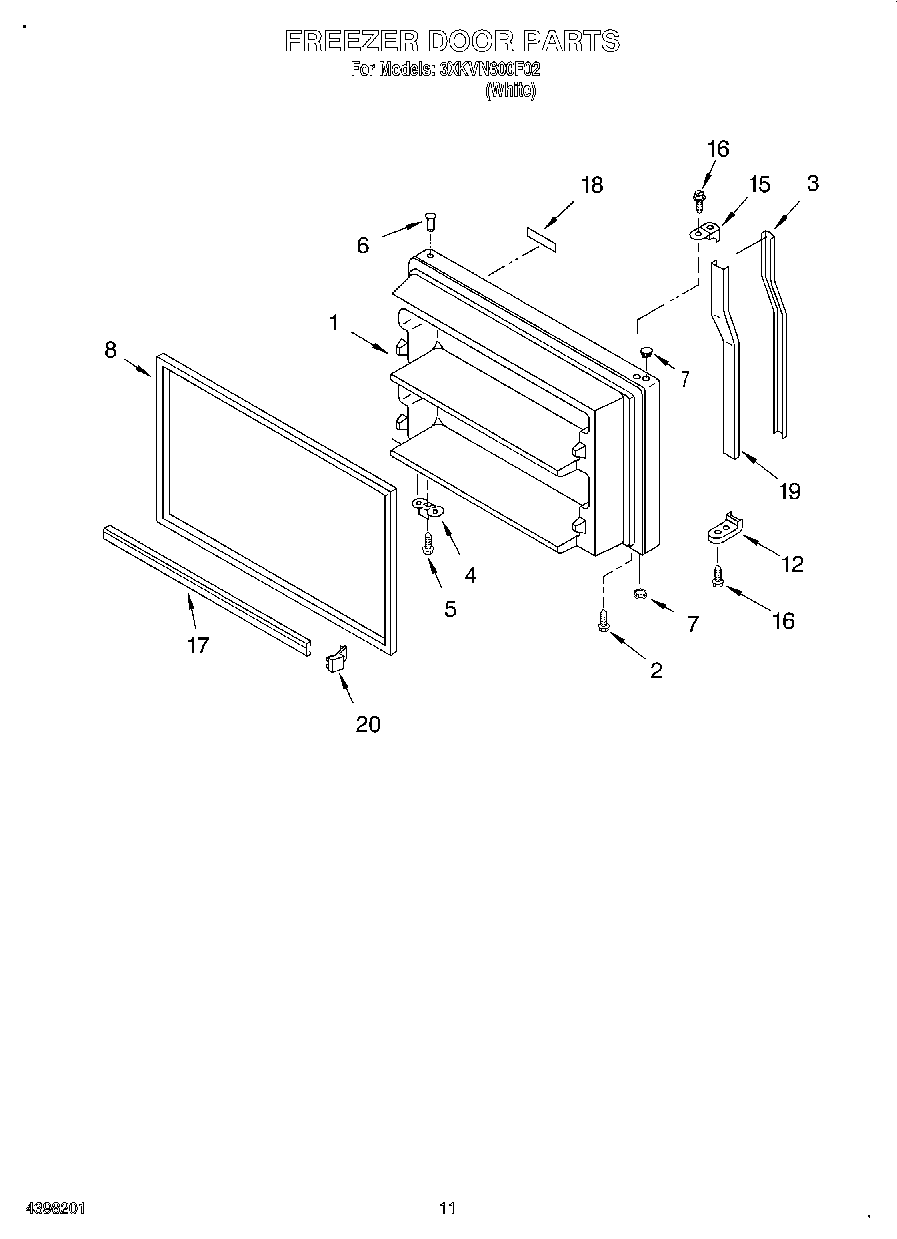

3XKVN600F02 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2183770
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2195676
	WPL LIT2198830
1	W11023679 Whirlpool Refrigerator Door Assembly
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
12	Endcap
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate
19	Insert, Retainer (White)
20	ENDCAP
22	72032 Whirlpool Touch Up Paint Black
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	Almond (Uncut)
22	350956 Whirlpool Spray Assembly
22	Featurepak (Includes 3, 20 21, 23, 29, 30 & 31. See also Shelf Parts and Freezer Door Parts page.)
22	350930 Whirlpool White Spray Paint
22	833938 Whirlpool Refrigerator Terminal
22	285006 Whirlpool Spray
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	606755 Whirlpool Refrigerator Bag
22	TAPE, VINYL (3/4 X 108“)
22	511873 Whirlpool Refrigerator Paint
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	Door Reversal Instructions
