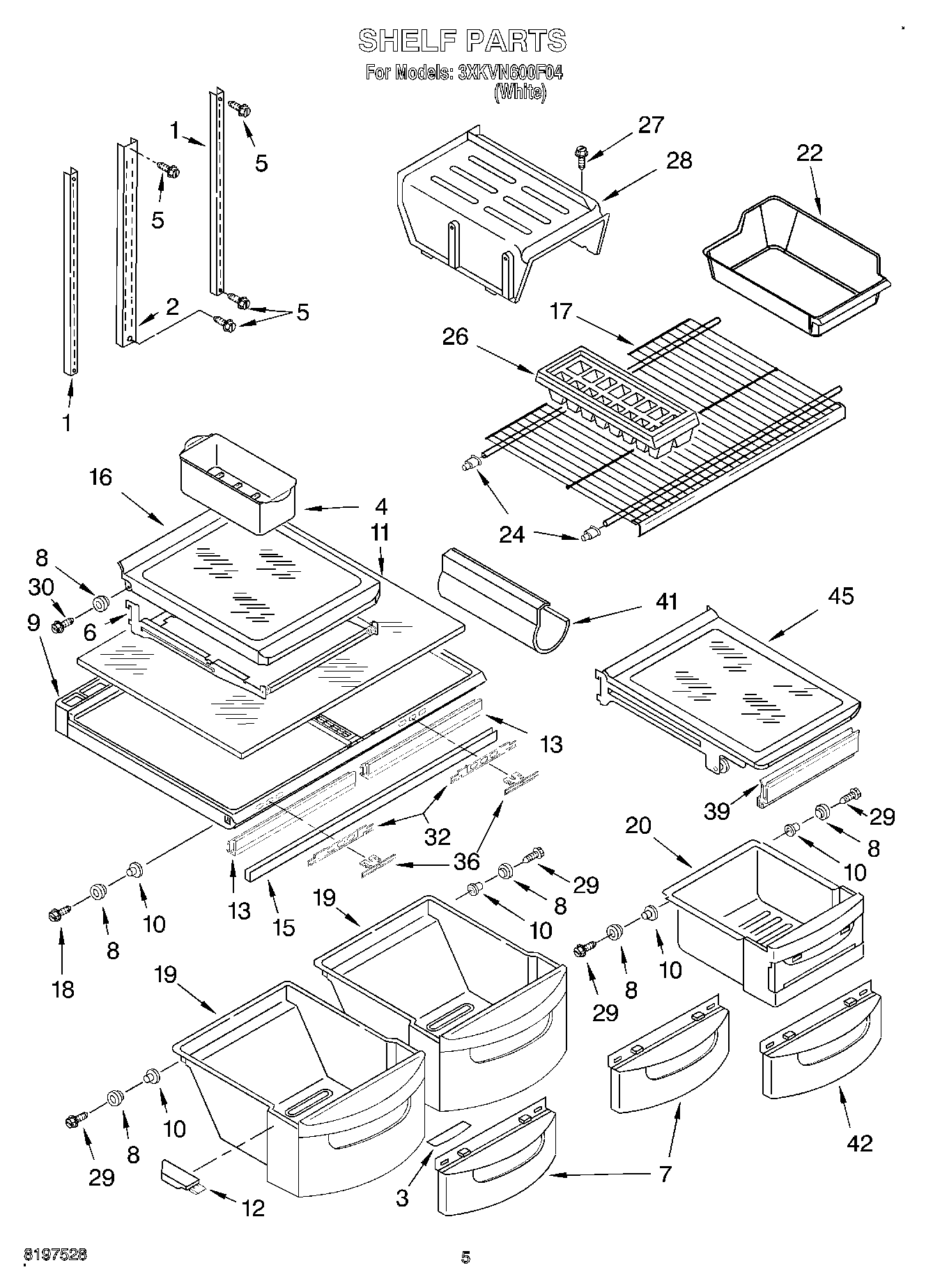

3XKVN600F04 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder
3	Nameplate
4	W10136387A Whirlpool Refrigerator Egg Container
6	Frame Assembly, Cantilever
7	Window, Crisper
8	Roller
9	Crisper Cover
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Cap, Crisper (Left Side)
12	Cap, Crisper (Right Side)
13	WP1125528 Whirlpool Refrigerator Gasket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes 3,7,8,10, 12,29)
20	Pan, Meat (Includes Rollers)
22	2254352A Whirlpool Refrigerator Ice Container
24	2163762 Whirlpool Refrigerator Cup Assembly
26	WP841180A Whirlpool Microwave Glass Turntable Tray
27	WP489478 Whirlpool Refrigerator Screw
28	Shelf, Ice Tray
29	WP489261 Whirlpool Refrigerator Screw
30	Screw
32	Slide, Humidity
36	Button, Humidity Control
39	Gasket, Front
41	W10777924 Whirlpool Refrigerator Wine Rack
42	Window, Meat Pan
45	Shelf Assembly, Spillguard
