3XKVN600F04 05 – REFRIGERATOR DOOR

3XKVN600F04 05 – REFRIGERATOR DOOR

Written by

in

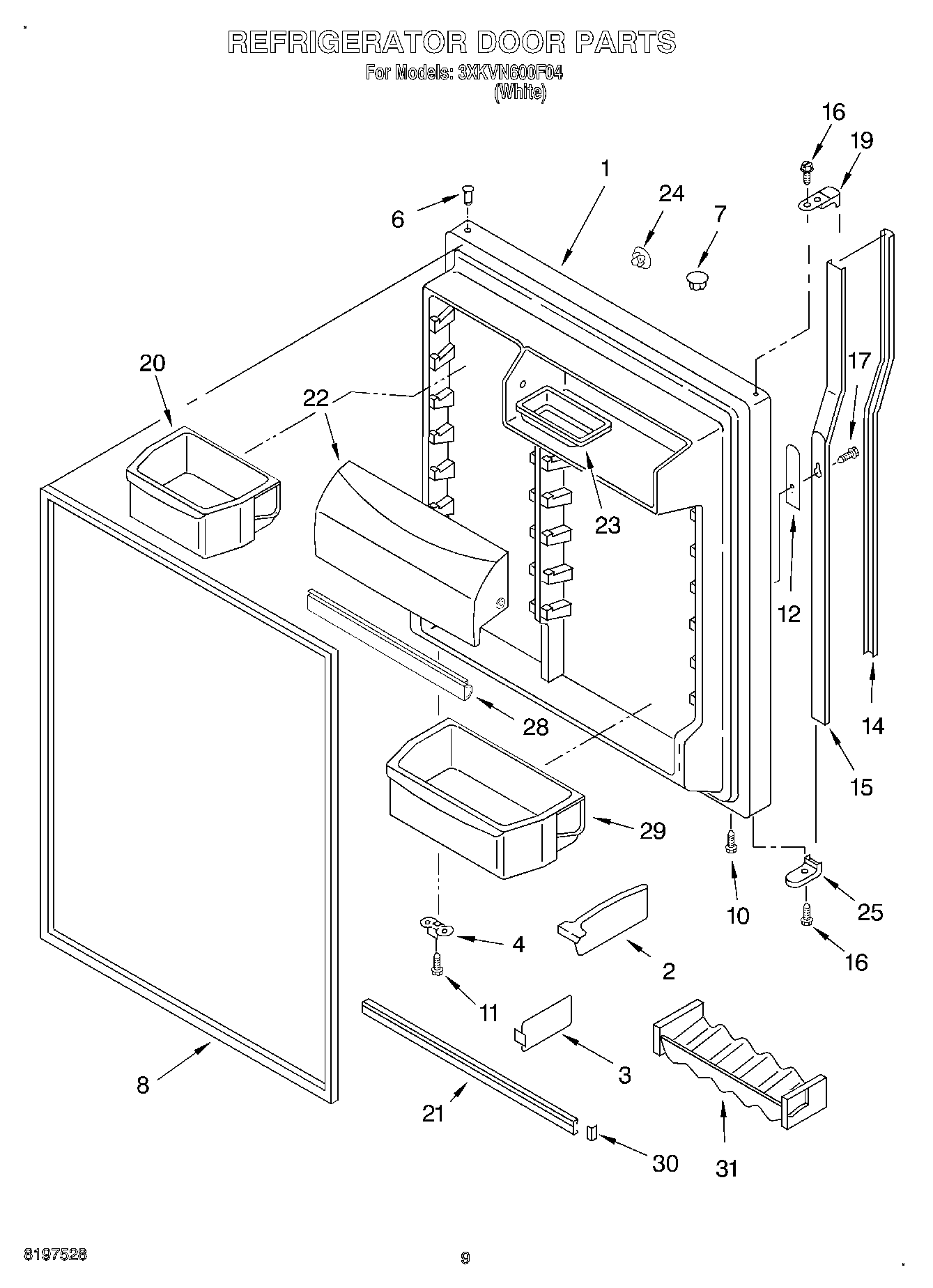

3XKVN600F04 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6 & No.8) (White)
3Divider-Door
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
10WP8281206 Whirlpool Refrigerator Screw
11WP488921 Whirlpool Refrigerator Screw
12Spacer
14Insert, Handle (White)
15Retainer, Insert (White)
16WP489357 Whirlpool Recessed Screw
17Screw
19Endcap
20Bin, Door Shelf Narrow (3)
21WPW10421486 Whirlpool Refrigerator Door Trim
22WP2313637 Whirlpool Cutting Grid Assembly
23Butter Tray
24WP2189000 Whirlpool Refrigerator Handle Plug
25Endcap, Handle (White)
28Gasket, Door Compartment
29Bin, Door Shelf
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Beverage Holder
