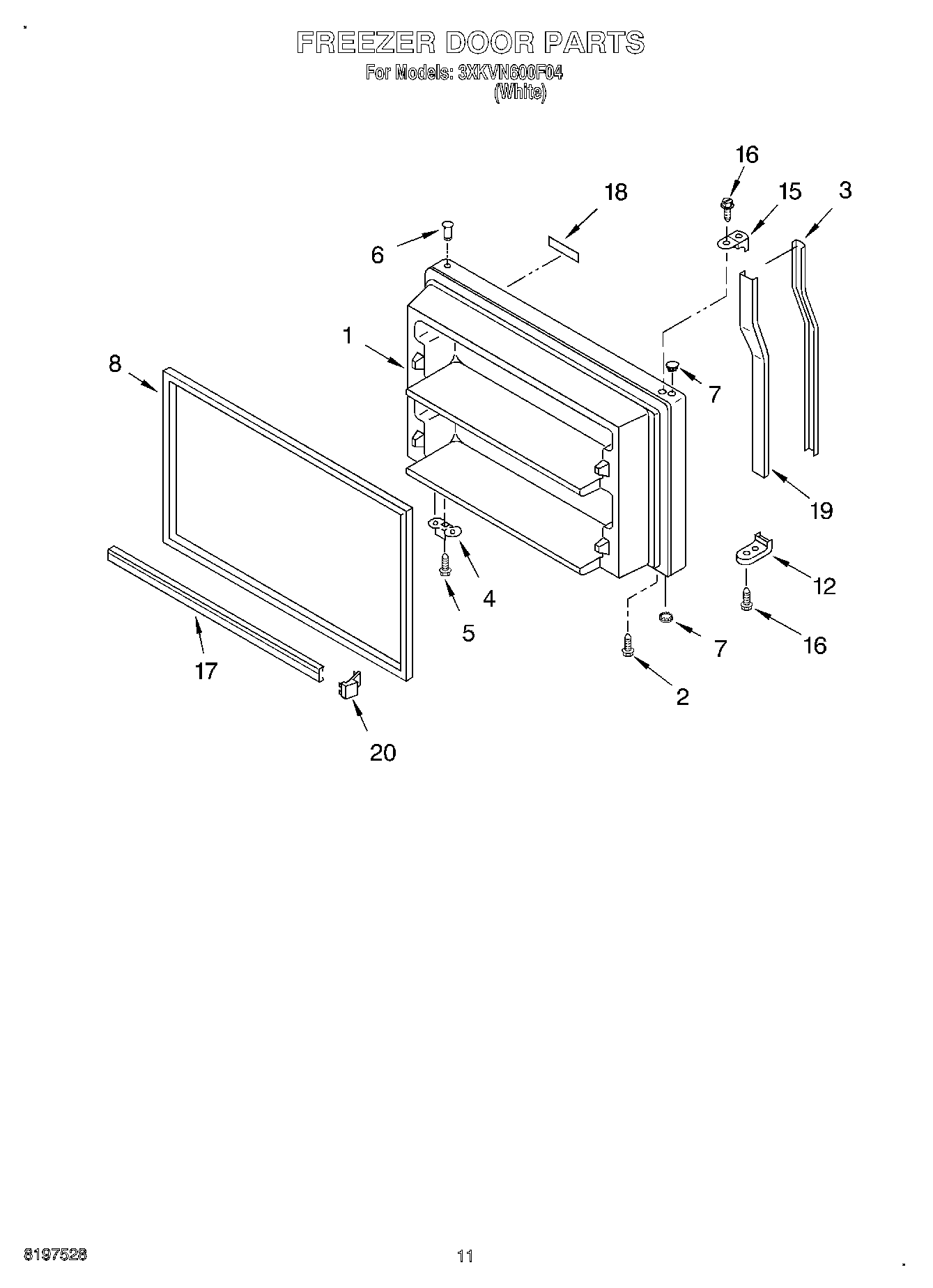

3XKVN600F04 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2183770
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195676
	WPL LIT677971
	WPL LIT2198830
	Torx Key
1	W11023679 Whirlpool Refrigerator Door Assembly
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
12	Endcap
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate
19	Insert, Retainer (White)
20	Door Reversal Instructions
20	350930 Whirlpool White Spray Paint
20	285006 Whirlpool Spray
20	350956 Whirlpool Spray Assembly
20	72017 Whirlpool Appliance Touch-Up Paint White
20	72032 Whirlpool Touch Up Paint Black
20	Almond (Uncut)
20	ENDCAP
20	799344 Whirlpool Refrigerator Paint
20	WP72107 Whirlpool Touchup
20	CEMENT, ALUMILASTIC (1 1/4 OZ.)
20	876370 Whirlpool Refrigerator Insulation
20	WP503695 Whirlpool Refrigerator Sealer
20	WP505587 Whirlpool Refrigerator Sealer
20	WP542638 Whirlpool Refrigerator Grease
20	606755 Whirlpool Refrigerator Bag
20	TAPE, VINYL (3/4 X 108“)
20	511873 Whirlpool Refrigerator Paint
20	WPL 799832
20	WPL 799833
20	WPL 876029
20	350942 Whirlpool Spray Paint
20	212643 Whirlpool Refrigerator Permagum Sealer
20	833938 Whirlpool Refrigerator Terminal
