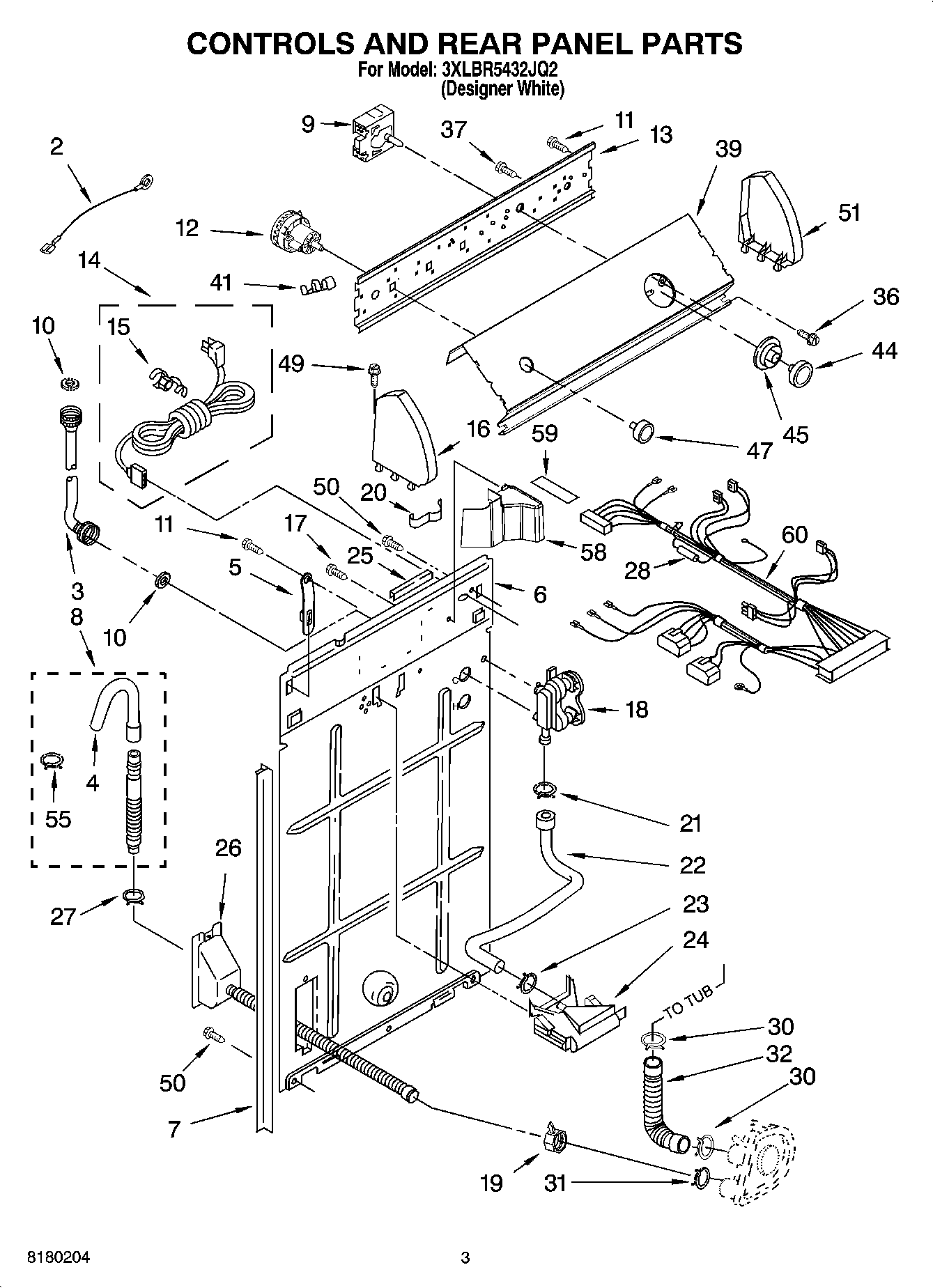

3XLBR5432JQ2 02 – CONTROLS AND REAR PANEL PARTS

3XLBR5432JQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

3XLBR5432JQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
2Wire, Ground
3WPW10615831 Whirlpool Fill Hose
3WPW10615809 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WPW10163650 Whirlpool Timer
10WP16123 Whirlpool Washer
11WP90767 Whirlpool Screw
12W10339228 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
19Clamp, Hose
208528351 Whirlpool Clip
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WPW10111181 Whirlpool Fuse Assembly
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
36WP3400818 Whirlpool Screw
37Screw (6)
39Panel, Console
41W10113937 Whirlpool Clamp
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
55WP3357331 Whirlpool Clamp
58Sh
59Extension, Shield
60Harness, Wiring (For Detail See Pages 9 & 10)
