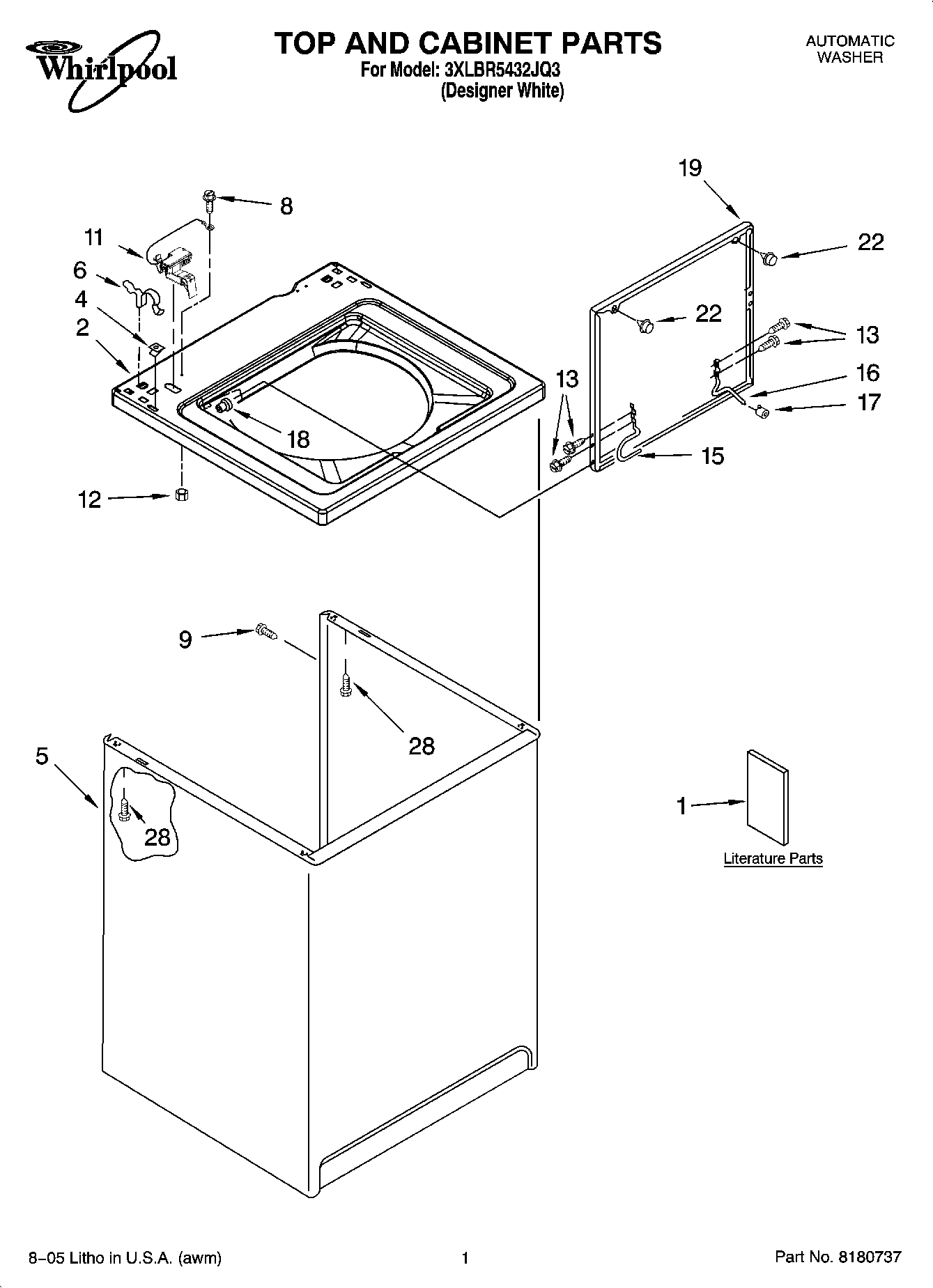

3XLBR5432JQ3 01 – TOP AND CABINET PARTS

3XLBR5432JQ3 01 – TOP AND CABINET PARTS

Written by

in

3XLBR5432JQ3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
2Top
4WP357213 Whirlpool Hinge Stopper
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
12W10080180 Whirlpool Nut
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
