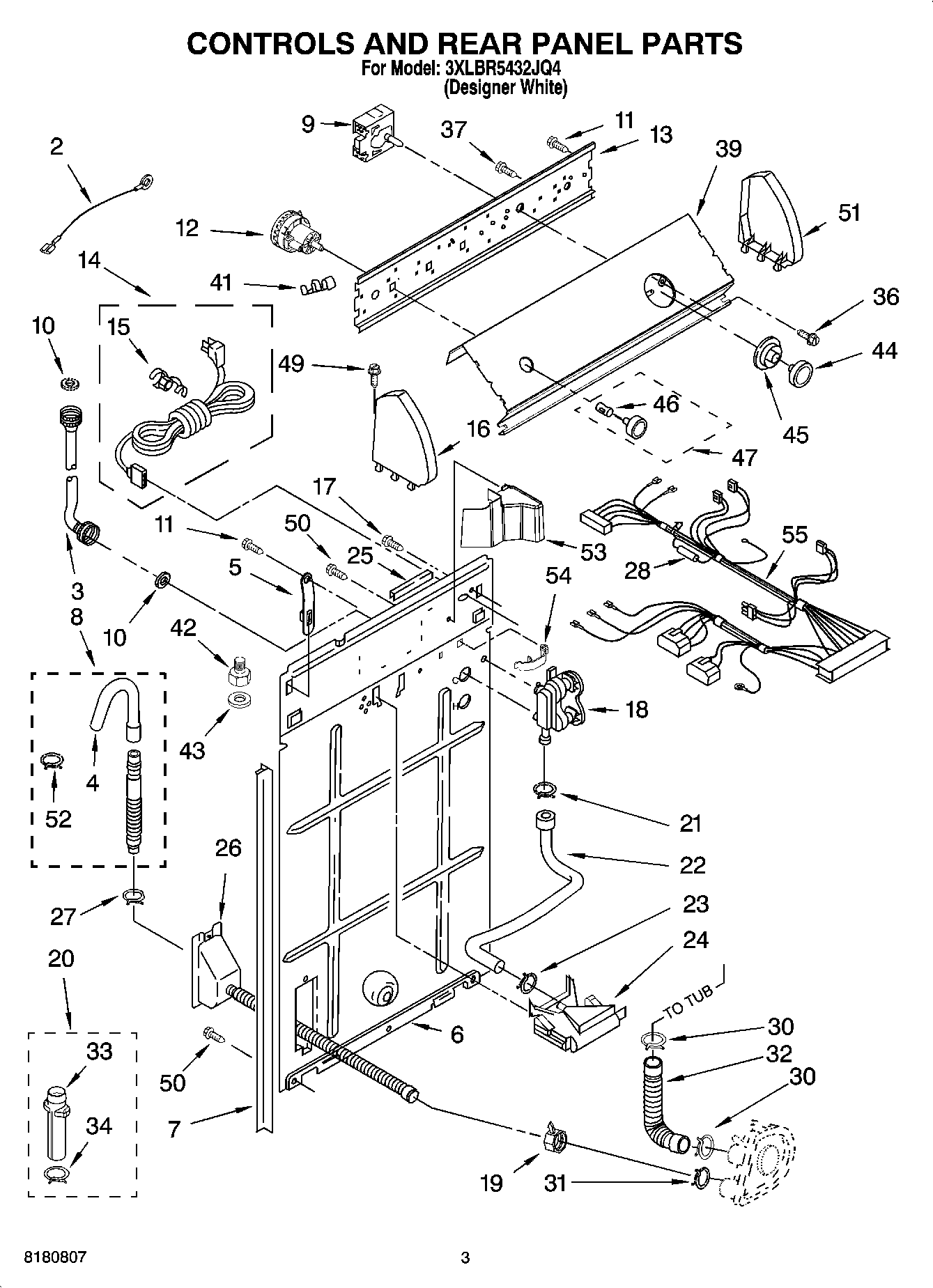

3XLBR5432JQ4 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
2	Wire, Ground
3	WPW10615809 Whirlpool Fill Hose
3	WPW10615831 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	WPW10163650 Whirlpool Timer
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	W10339228 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	Clamp, Hose
20	Kit, Adapter (Includes Illus. Nos. 17 & 29)
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WPW10111181 Whirlpool Fuse Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3363920A Whirlpool Adapter Assembly
36	WP3400818 Whirlpool Screw
37	Screw (6)
39	Panel, Console
41	W10113937 Whirlpool Clamp
42	WP3357397 Whirlpool Adapter
43	WP3357450 Whirlpool Washer Assembly
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
46	WP8536939 Whirlpool Spring Clip
47	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	WP3357331 Whirlpool Clamp
53	Sh
54	Clip, Harness
55	Miscellaneous Parts Bag
55	Harness, Wiring (For Detail See Pages 9 & 10)
55	WPL ARI140472A
