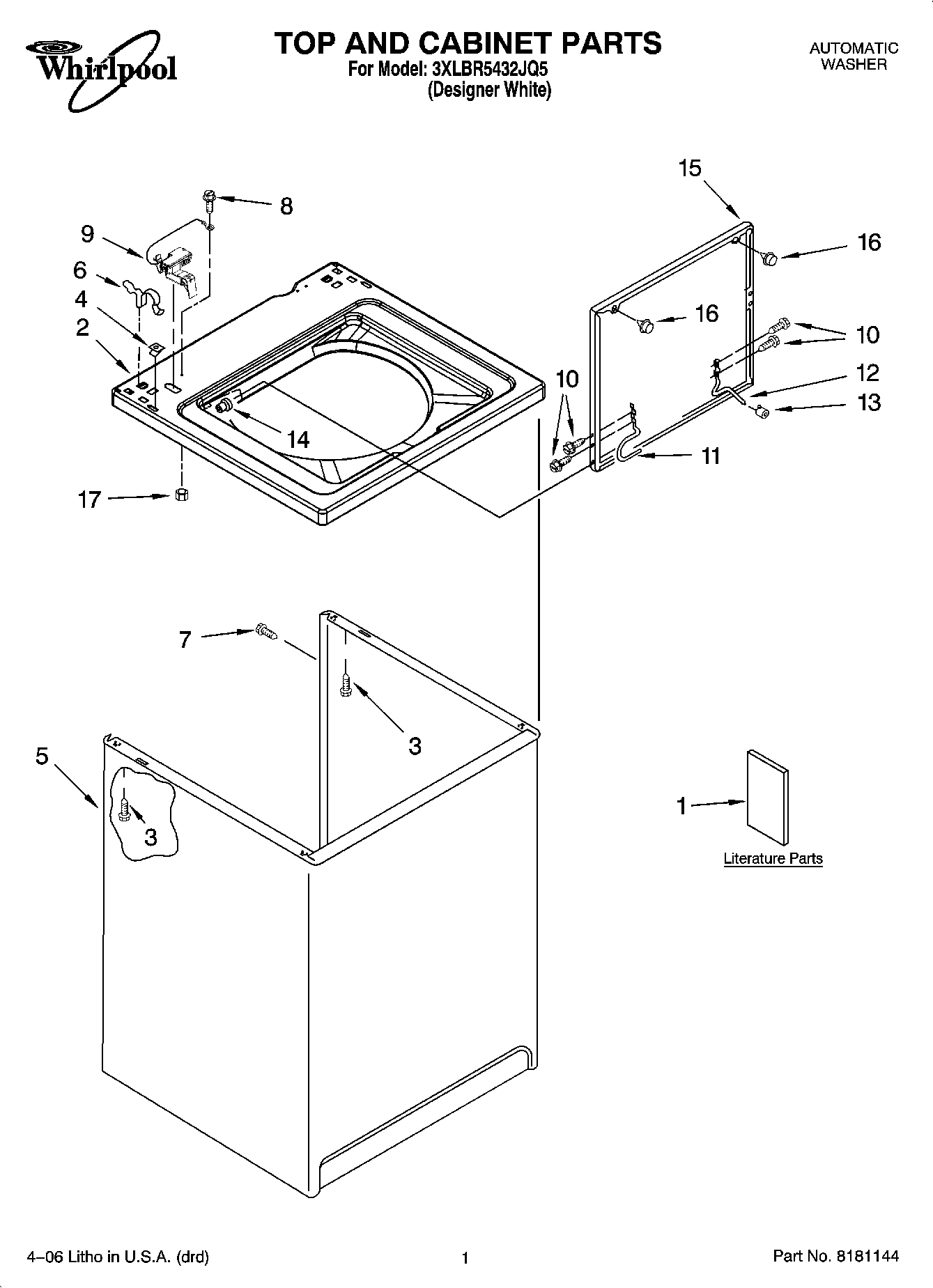

3XLBR5432JQ5 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
2	Top
3	Screw, 10-16 x 3/8 (4)
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	SCREW
11	8318088 Whirlpool Hinge Assembly
12	WP54583 Whirlpool Hinge
13	Bumper, Lid Hinge
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	Lid
16	WP9724509 Whirlpool Bumper
17	W10080180 Whirlpool Nut
