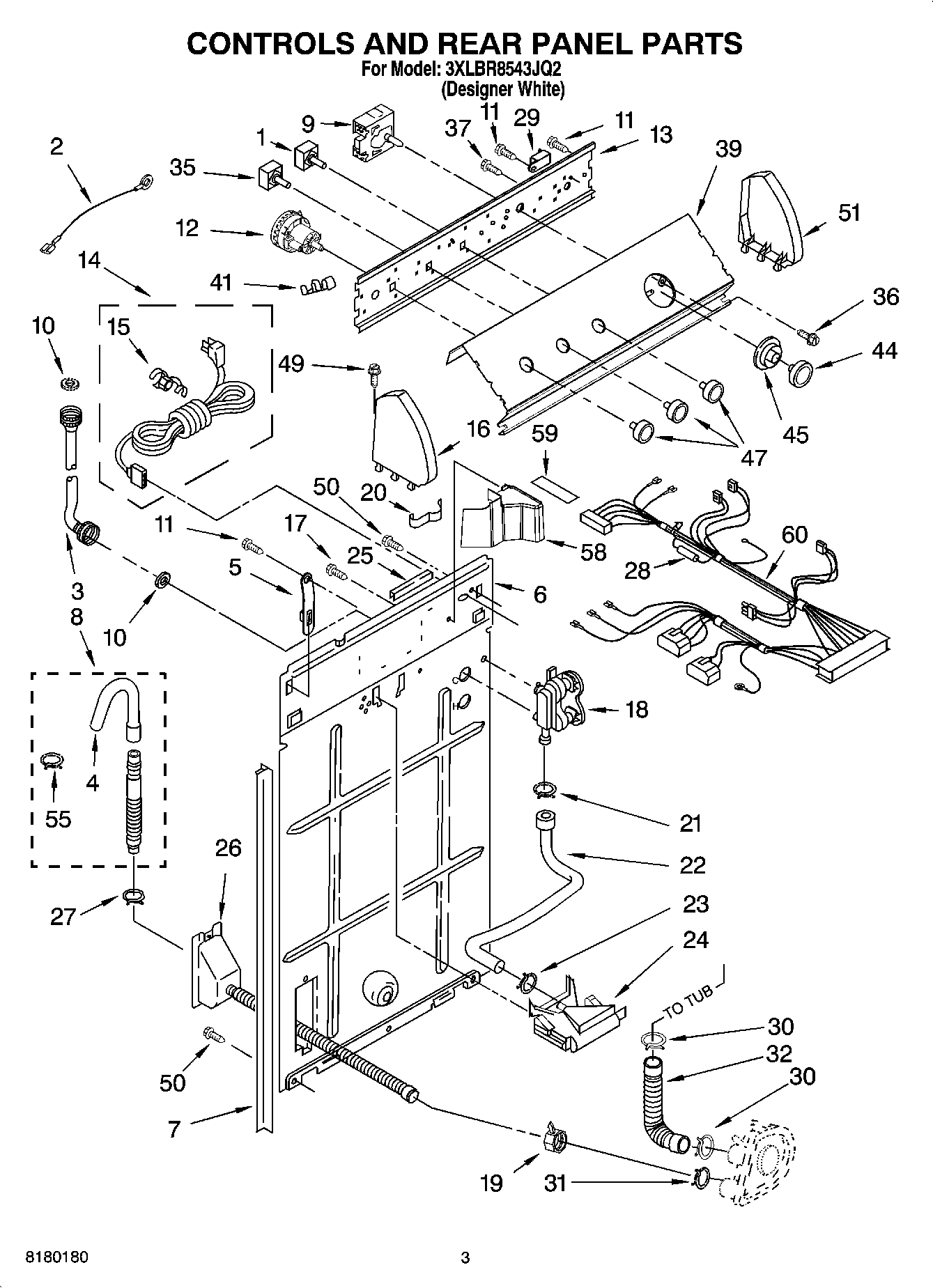

3XLBR8543JQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WPW10168257 Whirlpool Cycle Switch
2	Wire, Ground
3	WPW10615831 Whirlpool Fill Hose
3	WPW10615809 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	Clamp, Hose
20	8528351 Whirlpool Clip
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WPW10111181 Whirlpool Fuse Assembly
29	3952439 Whirlpool Buzzer
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	Screw (6)
39	Panel, Console
41	W10113937 Whirlpool Clamp
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
47	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
55	WP3357331 Whirlpool Clamp
58	Sh
59	Extension, Shield
60	WPL 3956873
