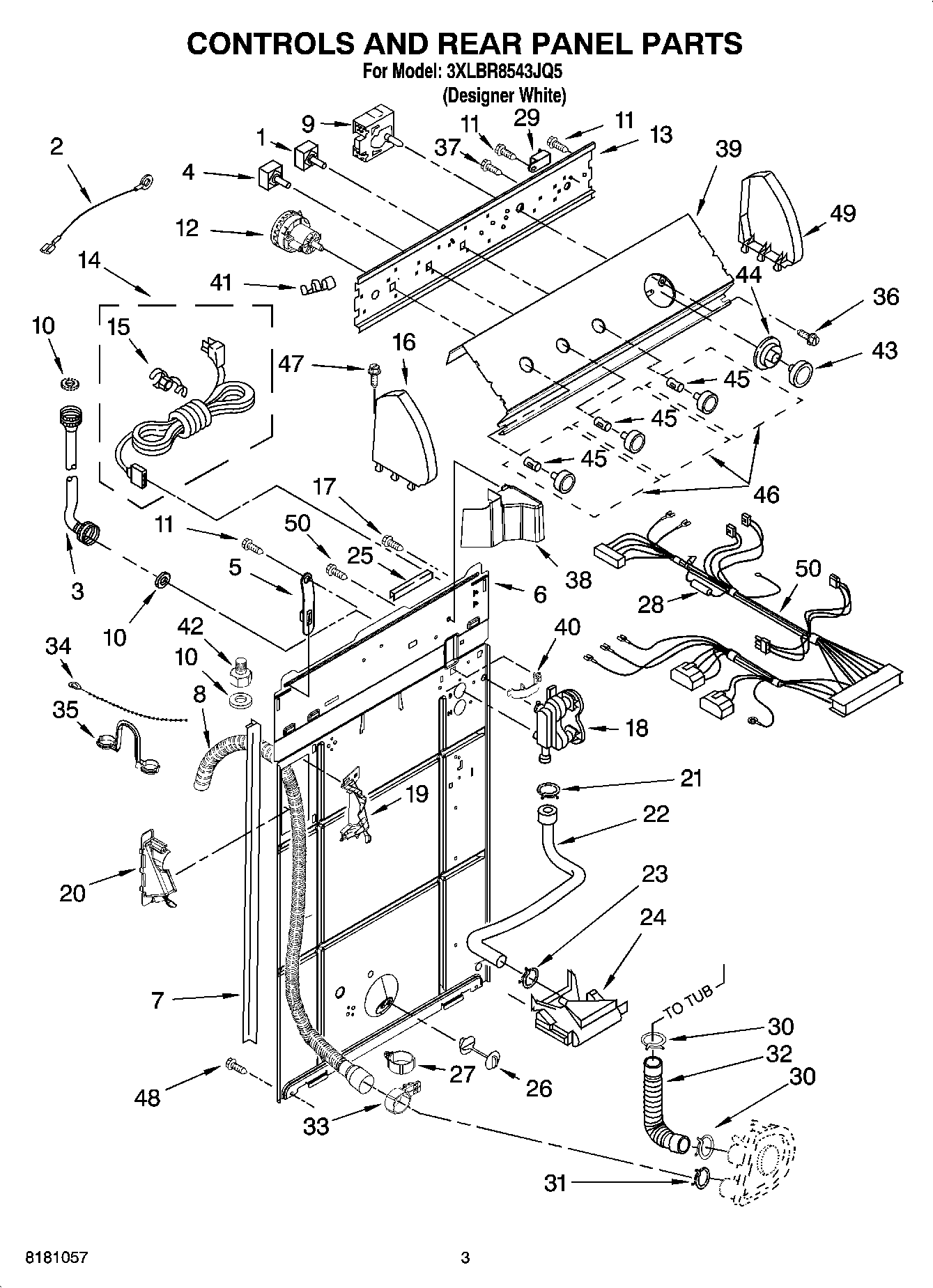

3XLBR8543JQ5 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WPW10168257 Whirlpool Cycle Switch
2	Wire, Ground
3	WPW10615809 Whirlpool Fill Hose
3	WPW10615831 Whirlpool Fill Hose
4	Switch, Water Temperature
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	W10111545 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
20	WPW10096921 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WPW10111181 Whirlpool Fuse Assembly
29	3952439 Whirlpool Buzzer
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	WPW10339879 Whirlpool Wire Tie
35	WP8577378 Whirlpool Retainer
36	WP3400818 Whirlpool Screw
37	Screw (6)
38	Sh
39	Panel, Console
40	Clip, Harness
41	W10113937 Whirlpool Clamp
42	WP3357397 Whirlpool Adapter
43	W10807860 Whirlpool White Control Knob
44	WP3957849 Whirlpool Timer Dial
45	WP8536939 Whirlpool Spring Clip
46	WP3957799 Whirlpool Knob
47	WP388326 Whirlpool Screw
48	WP3390631 Whirlpool Screw
49	W10820038 Whirlpool Endcap
50	WPL 3956873
