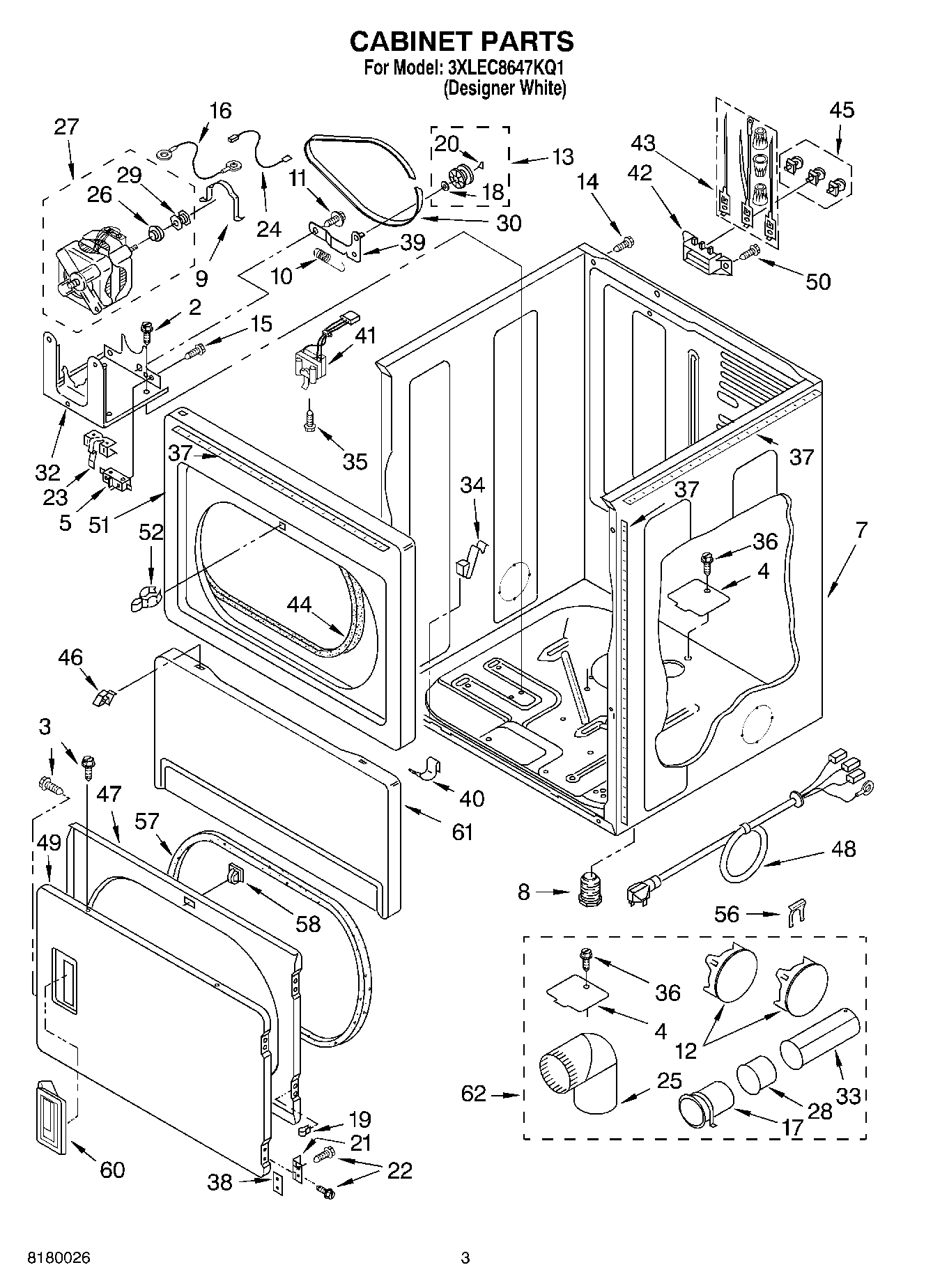

3XLEC8647KQ1 02 – CABINET PARTS – OPTIONAL PARTS (NOT INCLUDED)

3XLEC8647KQ1 02 – CABINET PARTS – OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3XLEC8647KQ1 02 – CABINET PARTS – OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
2303776 Whirlpool Dishwasher Screw
3WP694091 Whirlpool Screw
4WPW10354249 Whirlpool Cover
5WP8318457 Whirlpool Switch Plug
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14W10850756 Whirlpool Screw
153400934 Whirlpool Screw
16Wire, Ground
17WP8563747 Whirlpool Exhaust Pipe
18WPW10121334 Whirlpool Washer
19Nut, “U“ (4)
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22WP488627 Whirlpool Refrigerator Screw
23WP8066120 Whirlpool Lever Assembly
24Wire, Belt Switch
25WPW10416072 Whirlpool Elbow
26WP3393657 Whirlpool Belt Retainer
27W10416573 Whirlpool Drive Motor
28WPW10331278 Whirlpool Exhaust Pipe
293402548 Whirlpool Motor Pulley
30661570V Whirlpool Dryer Drum Belt
32WP3387118 Whirlpool Base Assembly
33WP8563749 Whirlpool Exhaust Pipe
34Clip, Lint Duct
35WP3395530 Whirlpool Screw
36WP693995 Whirlpool Screw
37Seal, Foam
38WP3390902 Whirlpool Clip
39W10837240 Whirlpool Dryer Idler Pulley
40WP297092 Whirlpool Clip
41SWITCH-DOOR DRYER
42WP3397659 Whirlpool Terminal Block
43279318 Whirlpool Terminal
44WP3387242 Whirlpool Seal
45279393 Whirlpool Terminal Block Screw and Nut Kit
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48Cord, Power
49W11663440 Whirlpool Door
50WP308685 Whirlpool Microwave Screw
51Upper Front Panel
56W11712577 Whirlpool Clip
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
603389522 Whirlpool Handle
61Optional Parts Not Included Dryer Exhaust K
61WP3406797 Whirlpool Toe Panel
6272017 Whirlpool Appliance Touch-Up Paint White
62350938 Whirlpool Spray Gun
62799344 Whirlpool Refrigerator Paint
628212450A Whirlpool Dryer Rack Assembly
62350930 Whirlpool White Spray Paint
624392067 Whirlpool Dryer Repair Kit
62W10470674 Whirlpool Dryer Side Vent Exhaust Kit
62W11224254 Whirlpool Test Kit
62WPL ARI13310A2
