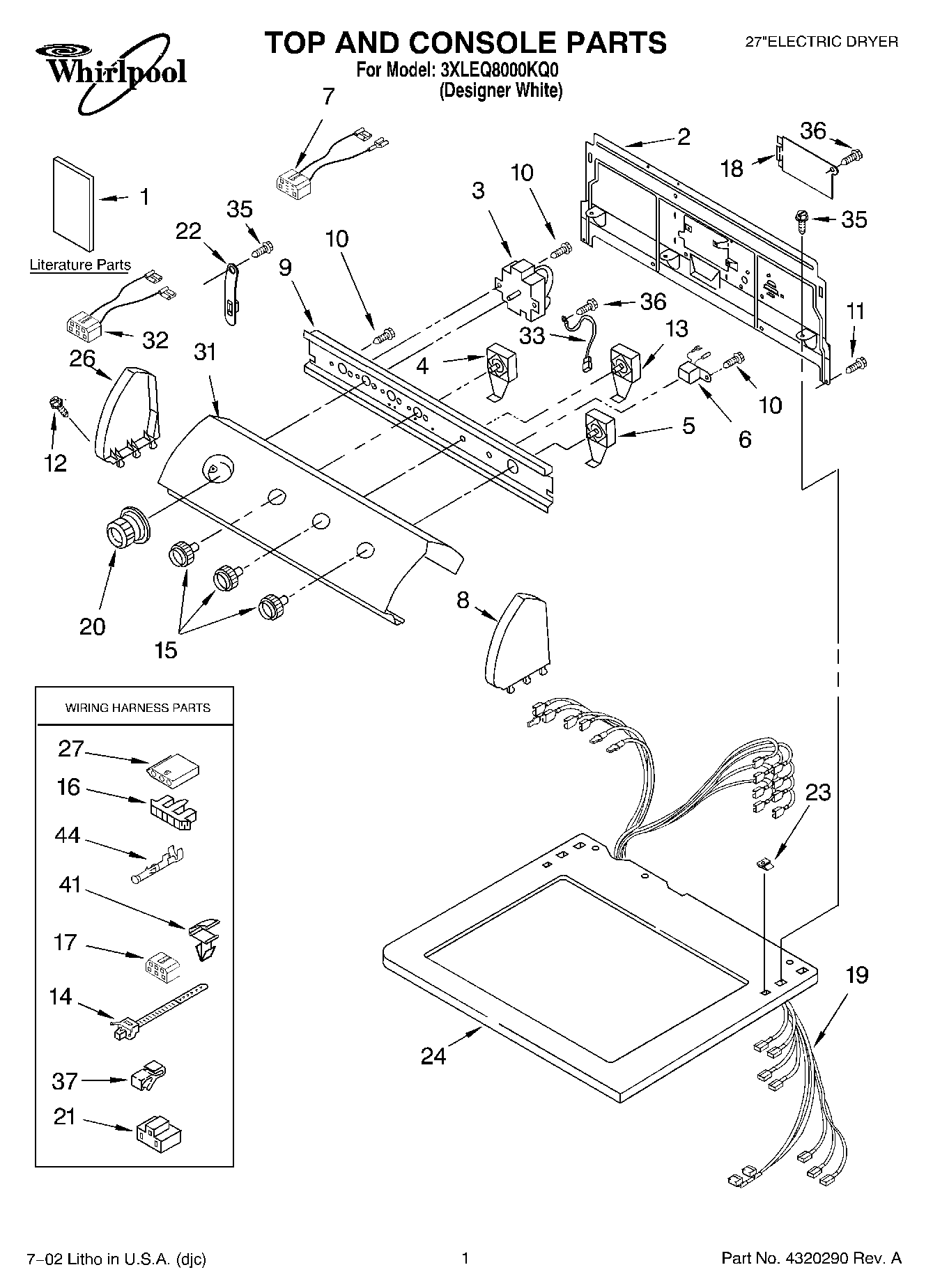

3XLEQ8000KQ0 01 – SECTION

Products

Position	Product
	Dryer
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Label, Wiring Diagram)
2	285909 Whirlpool Rear Panel
3	WPW10116281 Whirlpool Timer
4	W10168169 Whirlpool Switch
5	WPW10112633 Whirlpool Relay Parts
6	Buzzer, Mini
7	3397695 Whirlpool Wire Harness
8	W10820038 Whirlpool Endcap
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
11	WP693995 Whirlpool Screw
12	WP388326 Whirlpool Screw
13	W10168170 Whirlpool Switch
14	WP3391018 Whirlpool Wire Tie
15	WP3957799 Whirlpool Knob
16	Connector, Timer
17	Block, Disconnect
18	WPW10119283 Whirlpool Terminal Cover
19	Harness, Wiring
20	WP3957754 Whirlpool Knob Assembly
21	3401144 Whirlpool Connector
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
27	3936144 Whirlpool Connector
31	Panel, Control
32	Wire, Jumper (Temperature)
33	Wire, Ground
35	WP488729 Whirlpool Refrigerator Door Screw
36	303776 Whirlpool Dishwasher Screw
37	W10113937 Whirlpool Clamp
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
