3XLER5435HQ0 01 – SECTION

3XLER5435HQ0 01 – SECTION

Written by

in

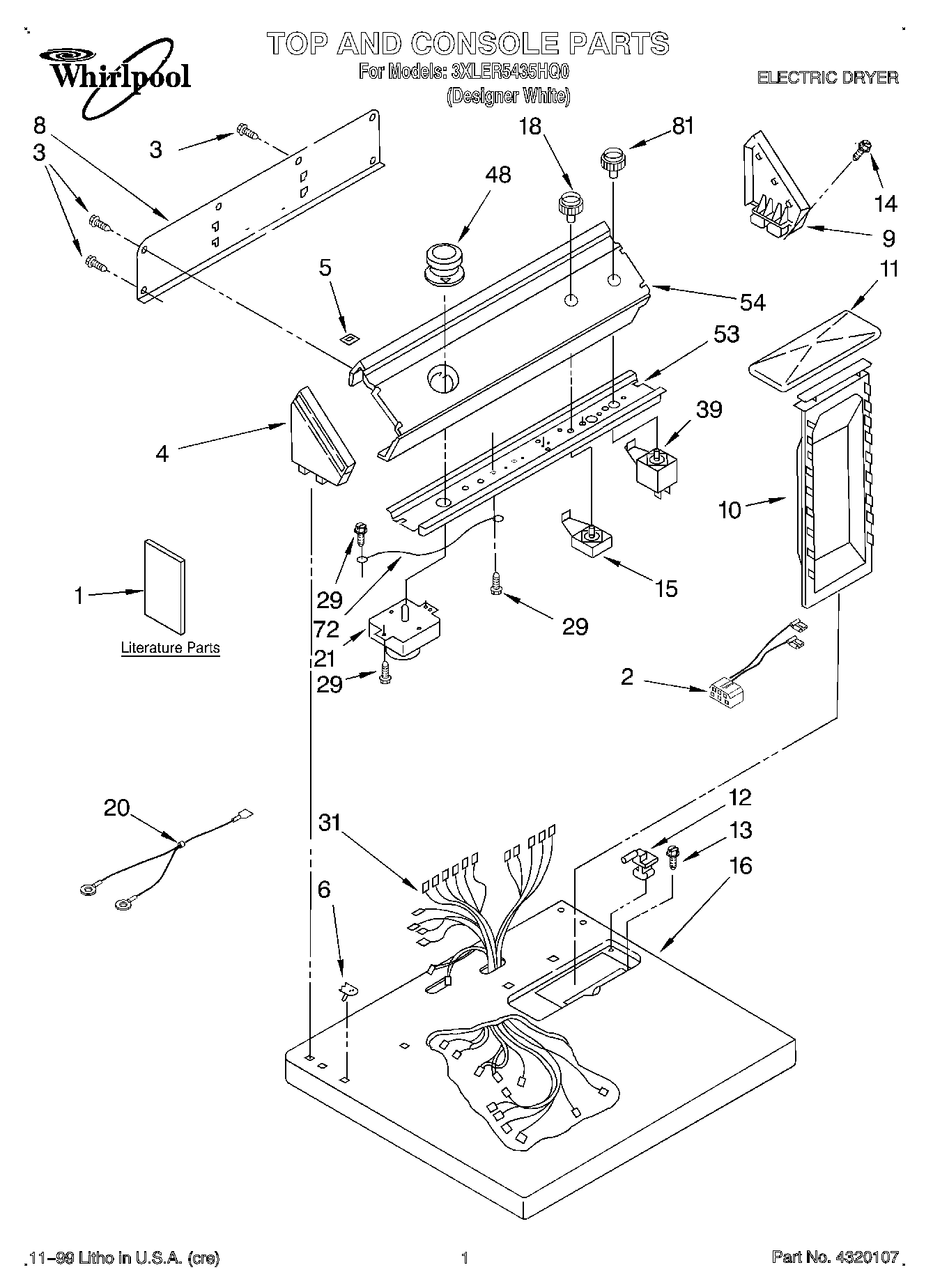

3XLER5435HQ0 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions (Spanish))
1Literature Parts (Installation Instructions (English))
1Label, Operating Instructions
1Guide, Use & Care
1Label, Wiring Diagram
28283286 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
5W10113937 Whirlpool Clamp
6WP357213 Whirlpool Hinge Stopper
8Panel, Rear Console
9Cap, End (R.H.)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top (White)
18WP3957796 Whirlpool Knob
20Harness, Ground
21WP3396215 Whirlpool Timer
29WPW10139210 Whirlpool Screw
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
81350938 Whirlpool Spray Gun
8172017 Whirlpool Appliance Touch-Up Paint White
81799344 Whirlpool Refrigerator Paint
81350956 Whirlpool Spray Assembly
81WP72107 Whirlpool Touchup
81Leveler (Thinner)
81Almond (Uncut)
81WP3957800 Whirlpool Knob
81350930 Whirlpool White Spray Paint
