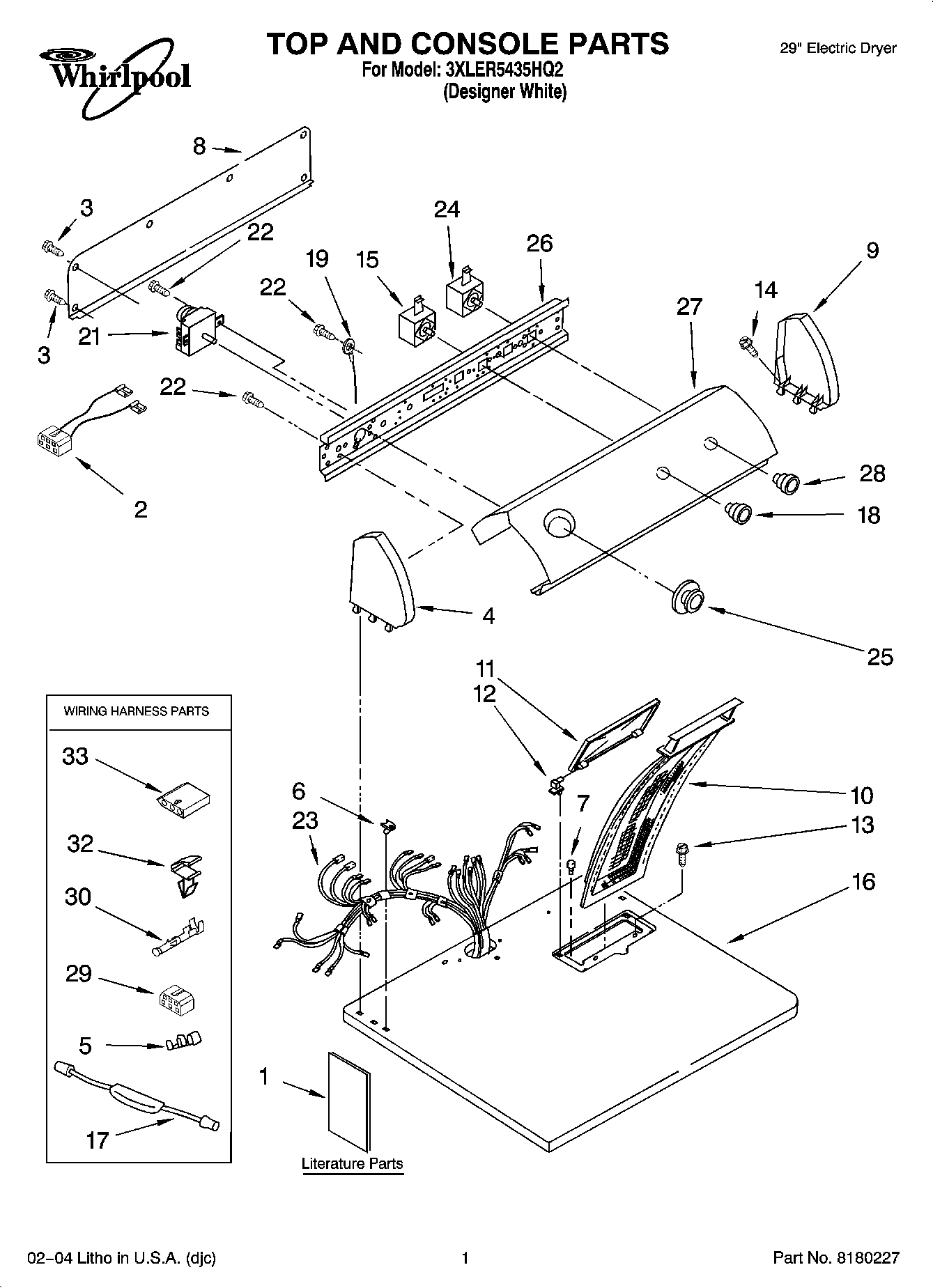

3XLER5435HQ2 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Dryer
1	Guide, Use & Care
1	Literature Parts (Installation Instructions (English))
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions (Spanish))
2	8283286 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	W10113937 Whirlpool Clamp
6	WP357213 Whirlpool Hinge Stopper
7	Bumper, Lint Lid
8	Panel, Rear Console
9	Cap, End (R.H.)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	3399638 Whirlpool Switch
16	TOP
17	279872 Whirlpool Resistor
18	WP3957796 Whirlpool Knob
19	Wire, Ground
21	WP3396215 Whirlpool Timer
22	WPW10139210 Whirlpool Screw
23	Harness, Wiring
24	WP3395382 Whirlpool Push To Start Switch
25	WP3957752 Whirlpool Knob
26	Bracket, Control
27	Panel, Control
28	WP3957800 Whirlpool Knob
29	Block, Disconnect
30	WP94614 Whirlpool Terminal
32	WP3394427 Whirlpool Clip
33	3404351 Whirlpool Dryer Rack
33	350938 Whirlpool Spray Gun
33	72017 Whirlpool Appliance Touch-Up Paint White
33	799344 Whirlpool Refrigerator Paint
33	350930 Whirlpool White Spray Paint
33	4392065 Whirlpool Dryer Maintenance Kit
33	3936144 Whirlpool Connector
33	ACCESSORY PARTS
