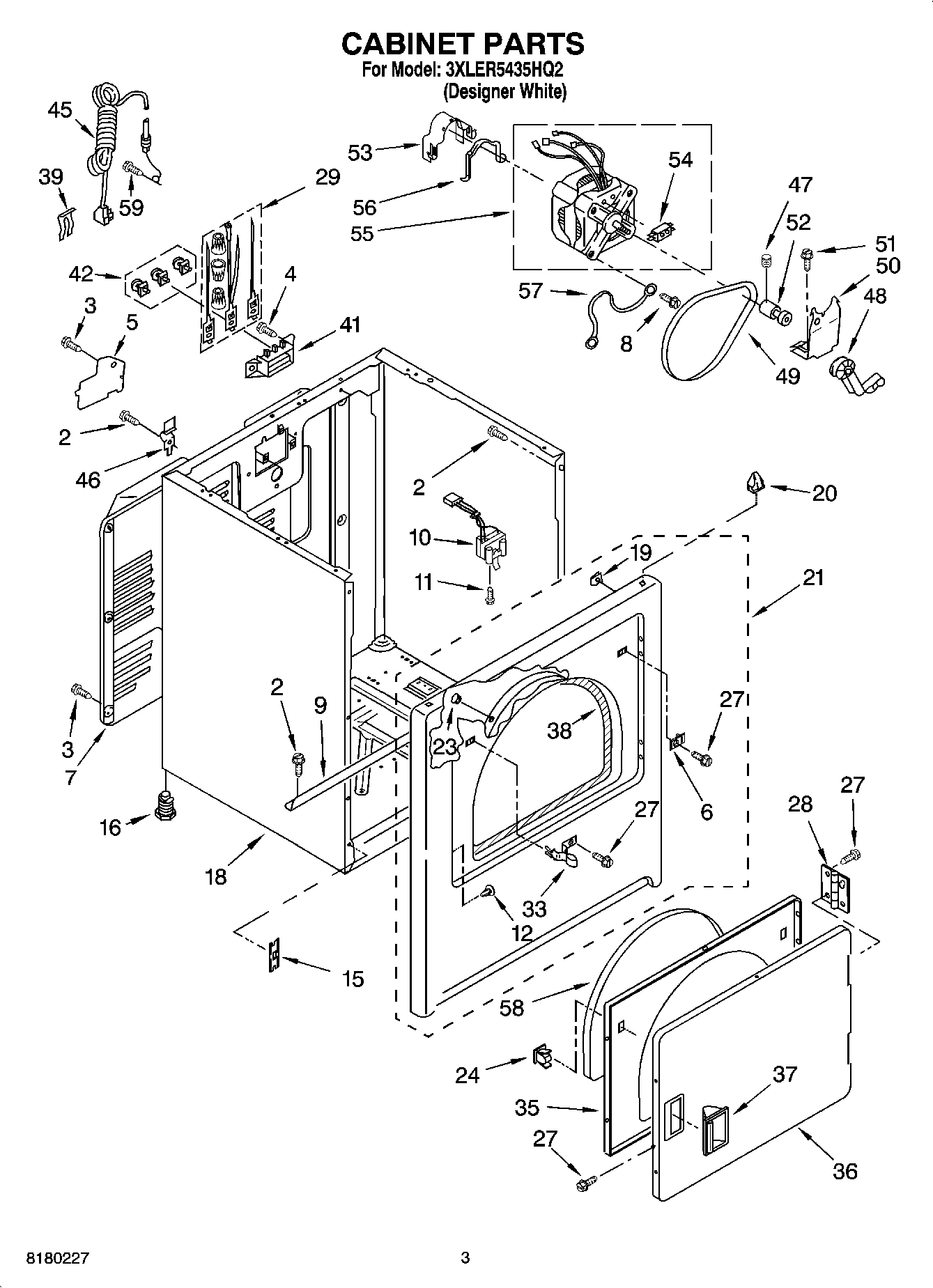

3XLER5435HQ2 02 – CABINET PARTS

Products

Position	Product
2	SCREW
3	WP693995 Whirlpool Screw
4	WP308685 Whirlpool Microwave Screw
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	Screw, No. 10
9	Bracket, Cabinet
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	279318 Whirlpool Terminal
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	W11712577 Whirlpool Clip
41	WP3397659 Whirlpool Terminal Block
42	279393 Whirlpool Terminal Block Screw and Nut Kit
45	Cord, Power
46	WP8066217 Whirlpool Hinge
47	SCREW, SET
48	WP691366 Whirlpool Dryer Idler Pulley Assembly
49	341241 Whirlpool Dryer Drum Belt
50	WP348780 Whirlpool Base
51	3400500 Whirlpool Screw
52	W11618508 Whirlpool Drive Motor
53	WP3404162 Whirlpool Clamp
54	279827 Whirlpool Dryer Drive Motor
56	WP660658 Whirlpool Clamp
57	Wire, Ground (Motor)
58	SEAL-DOOR DRYER
59	W10850756 Whirlpool Screw
