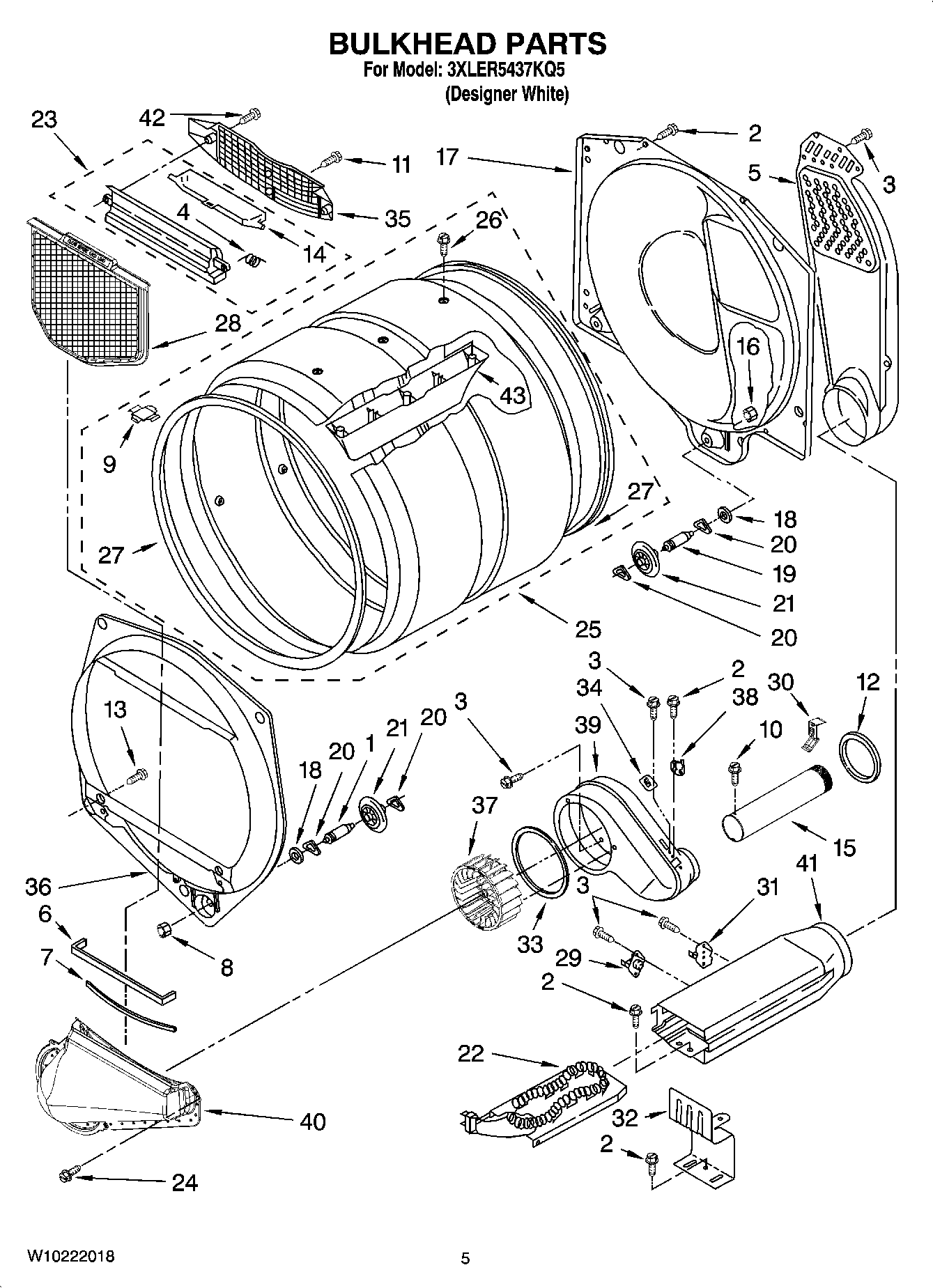

3XLER5437KQ5 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

3XLER5437KQ5 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3XLER5437KQ5 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392067 Whirlpool Dryer Repair Kit
8212450A Whirlpool Dryer Rack Assembly
ACCESSORY PARTS
W11224254 Whirlpool Test Kit
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
4WP3394986 Whirlpool Spring
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
98066086 Whirlpool Plug
10WP90767 Whirlpool Screw
12W11233063 Whirlpool Shield Assembly
13WP3387230 Whirlpool Screw
14W11222846 Whirlpool Door
15279936 Whirlpool Exhaust Pipe
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22Heater Element
23W11129408 Whirlpool Out Housing
24WP489463 Whirlpool Refrigerator Screw
25W10545923 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28W10120998 Whirlpool Dryer Lint Screen Filter
29WP8572767 Whirlpool Cutoff TML
30W11684573 Whirlpool Clip Assembly
31279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
328066099 Whirlpool Bracket
33WP697770 Whirlpool Blower Cover Plate Seal
34WP3392519 Whirlpool Dryer Thermal Fuse
35W11086603 Whirlpool Dryer Link Screen Air Grille
36WP697557 Whirlpool Bulkhead Assembly
37WHEEL
38WPW10168174 Whirlpool Thermostat
39WP8544363 Whirlpool Housing
40WPW10128606 Whirlpool Lint Duct
41W10802681 Whirlpool Box Assembly
42WP308685 Whirlpool Microwave Screw
43WPW10113136 Whirlpool Drum Baffle
