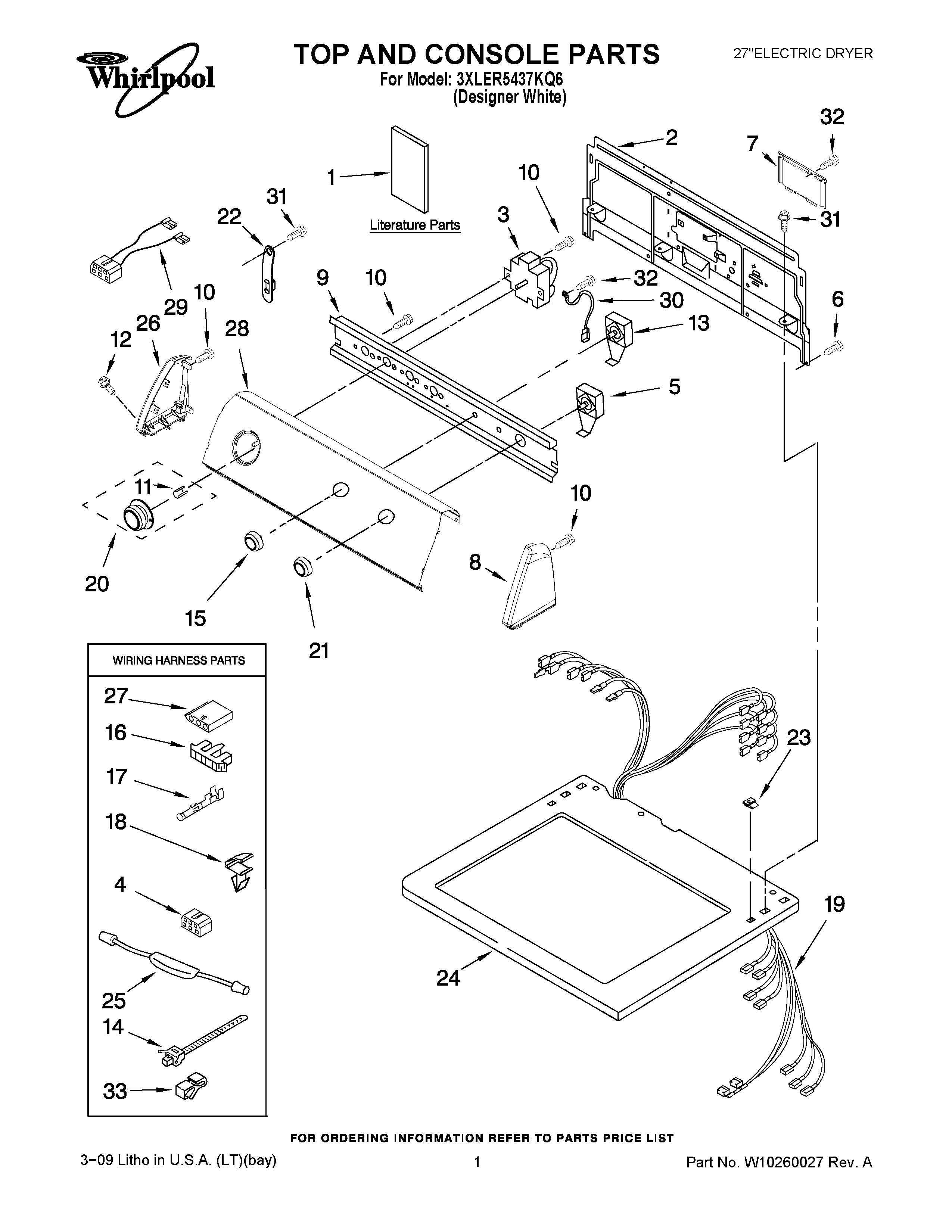

3XLER5437KQ6 01 – TOP AND CONSOLE PARTS

3XLER5437KQ6 01 – TOP AND CONSOLE PARTS

Written by

in

3XLER5437KQ6 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Instructions, Installation
1Guide, Use & Care
1Wiring Diagram
2285909 Whirlpool Rear Panel
3TIMER
4Block, Disconnect
5WP3395382 Whirlpool Push To Start Switch
6WP693995 Whirlpool Screw
7Cover, Terminal Block
8W10820038 Whirlpool Endcap
9Bracket, Control
10WP90767 Whirlpool Screw
11WP688805 Whirlpool Spring Clip
12WP388326 Whirlpool Screw
13Switch, Temperature
14WP3391018 Whirlpool Wire Tie
15WP3957799 Whirlpool Knob
16Connector, Timer
17WP94614 Whirlpool Terminal
18WP3394427 Whirlpool Clip
19Harness, Wiring
20WP3957754 Whirlpool Knob Assembly
213957804 Whirlpool Knob
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
25279872 Whirlpool Resistor
273936144 Whirlpool Connector
28Panel, Control
298283286 Whirlpool Wire Harness
30Wire, Ground
31WP488729 Whirlpool Refrigerator Door Screw
32303776 Whirlpool Dishwasher Screw
33W10113937 Whirlpool Clamp
