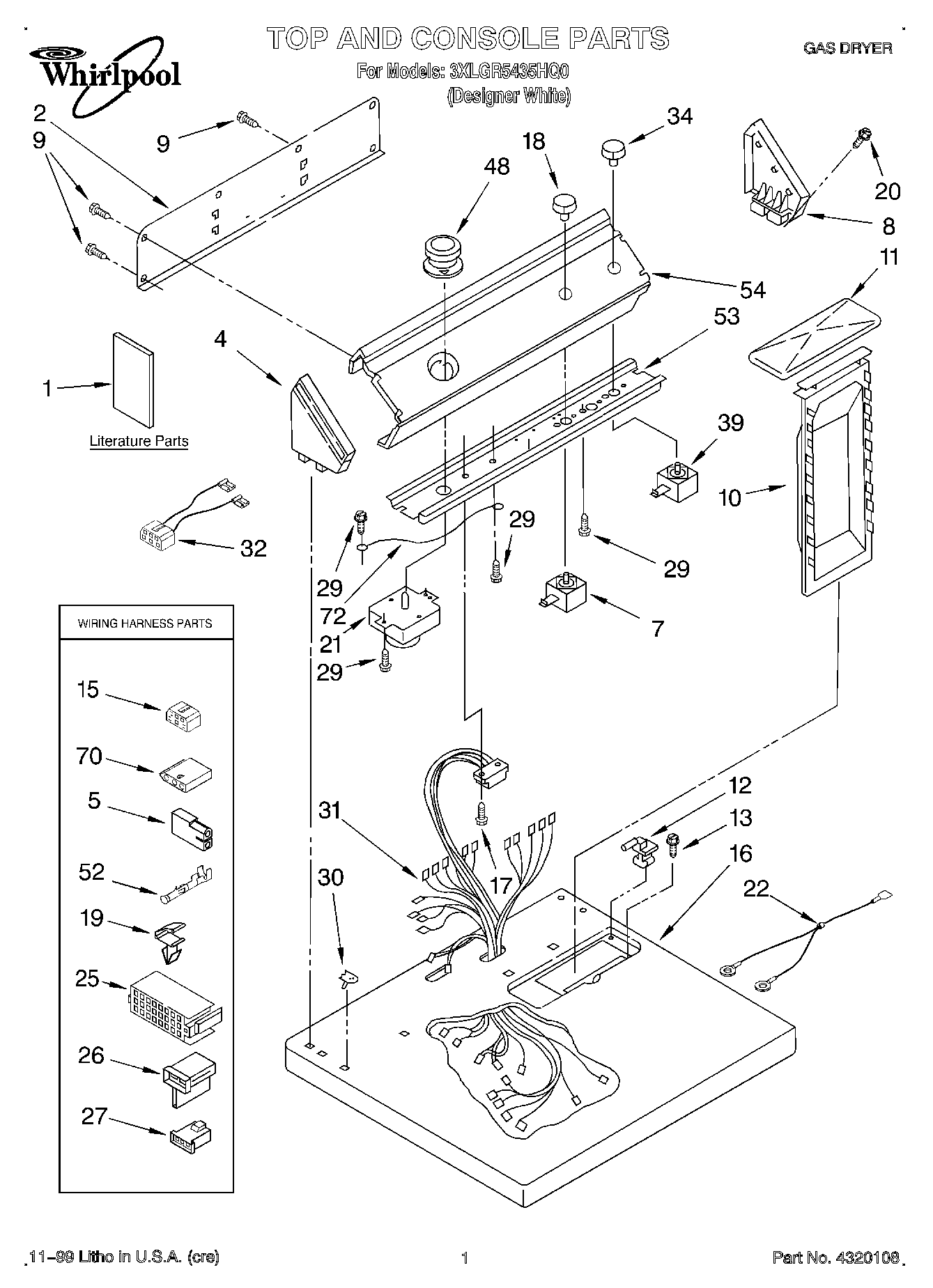

3XLGR5435HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

3XLGR5435HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

3XLGR5435HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Instructions, Installation
1Label, Wiring Diagram
1Guide, Use & Care
2Panel, Rear Console
4Cap, End (L.H.)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
73399638 Whirlpool Switch
8Cap, End (R.H.)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Block, Disconnect
16Top (White)
17SCREW
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3396215 Whirlpool Timer
22Harness, Ground
25W10113937 Whirlpool Clamp
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328283286 Whirlpool Wire Harness
34WP3957800 Whirlpool Knob
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
703936144 Whirlpool Connector
72WP3397659 Whirlpool Terminal Block
72350930 Whirlpool White Spray Paint
72Wire, Ground
72350938 Whirlpool Spray Gun
72350956 Whirlpool Spray Assembly
7272017 Whirlpool Appliance Touch-Up Paint White
72Almond (Uncut)
72WP72107 Whirlpool Touchup
72W10851673 Whirlpool Transformer
72799344 Whirlpool Refrigerator Paint
