3XLGR5437KQ4 04 – BURNER ASSEMBLY – OPTIONAL PARTS

3XLGR5437KQ4 04 – BURNER ASSEMBLY – OPTIONAL PARTS

Written by

in

3XLGR5437KQ4 04 – BURNER ASSEMBLY – OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
279918A Whirlpool LP Conversion Kit
350938 Whirlpool Spray Gun
8212450A Whirlpool Dryer Rack Assembly
4392067 Whirlpool Dryer Repair Kit
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
W11224254 Whirlpool Test Kit

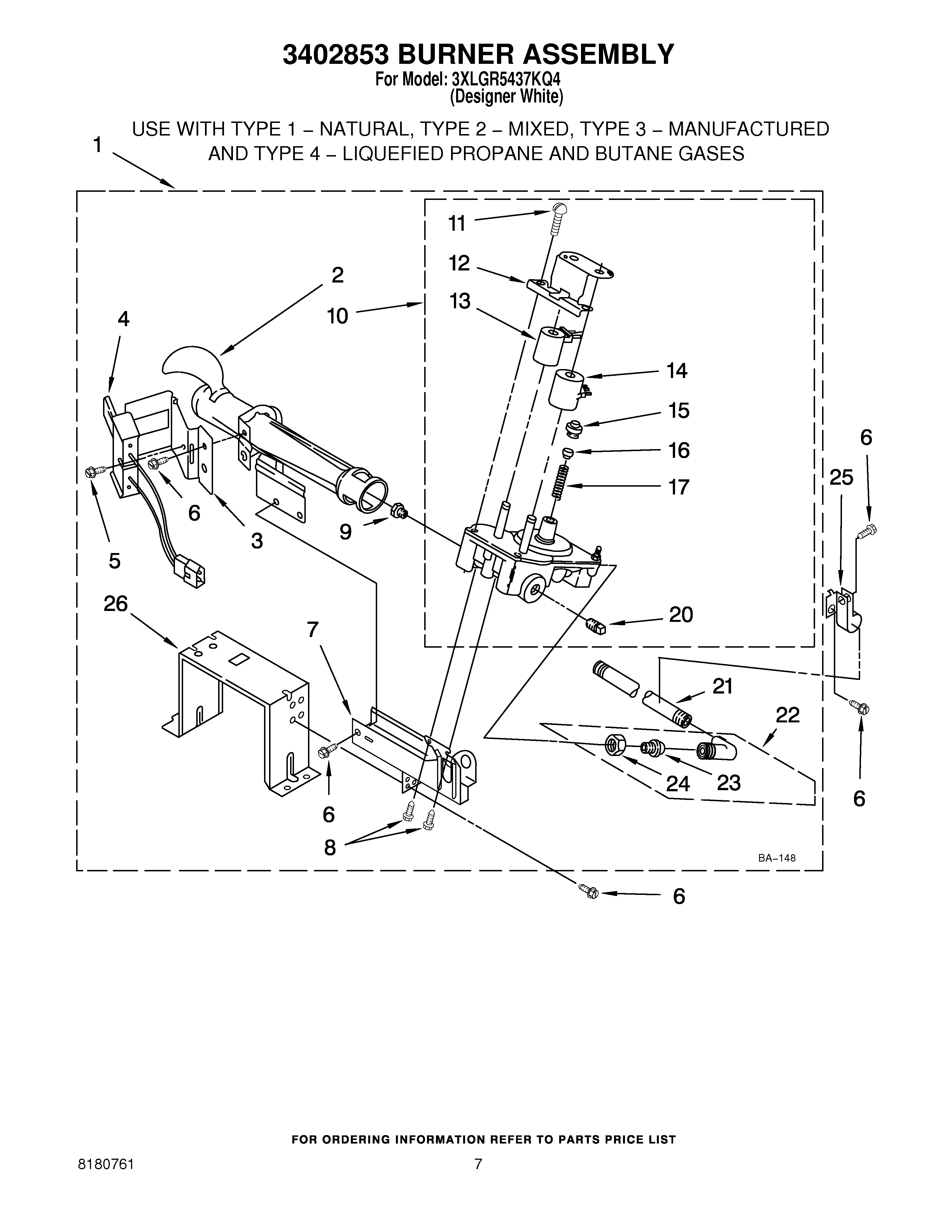

1Burner Assembly 50 Hz. (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6WP3351614 Whirlpool Screw
7Base, Burner
8WP693995 Whirlpool Screw
9ORIFICE, BURNER TYPE 1
9Orifice, Burner (Type 4 (Butane))
10WP8281918 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
13WP307930 Whirlpool Coil Valve
14WPY307931 Whirlpool Valve Coil
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
223406051 Whirlpool Elbow
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
26Bracket, Support
