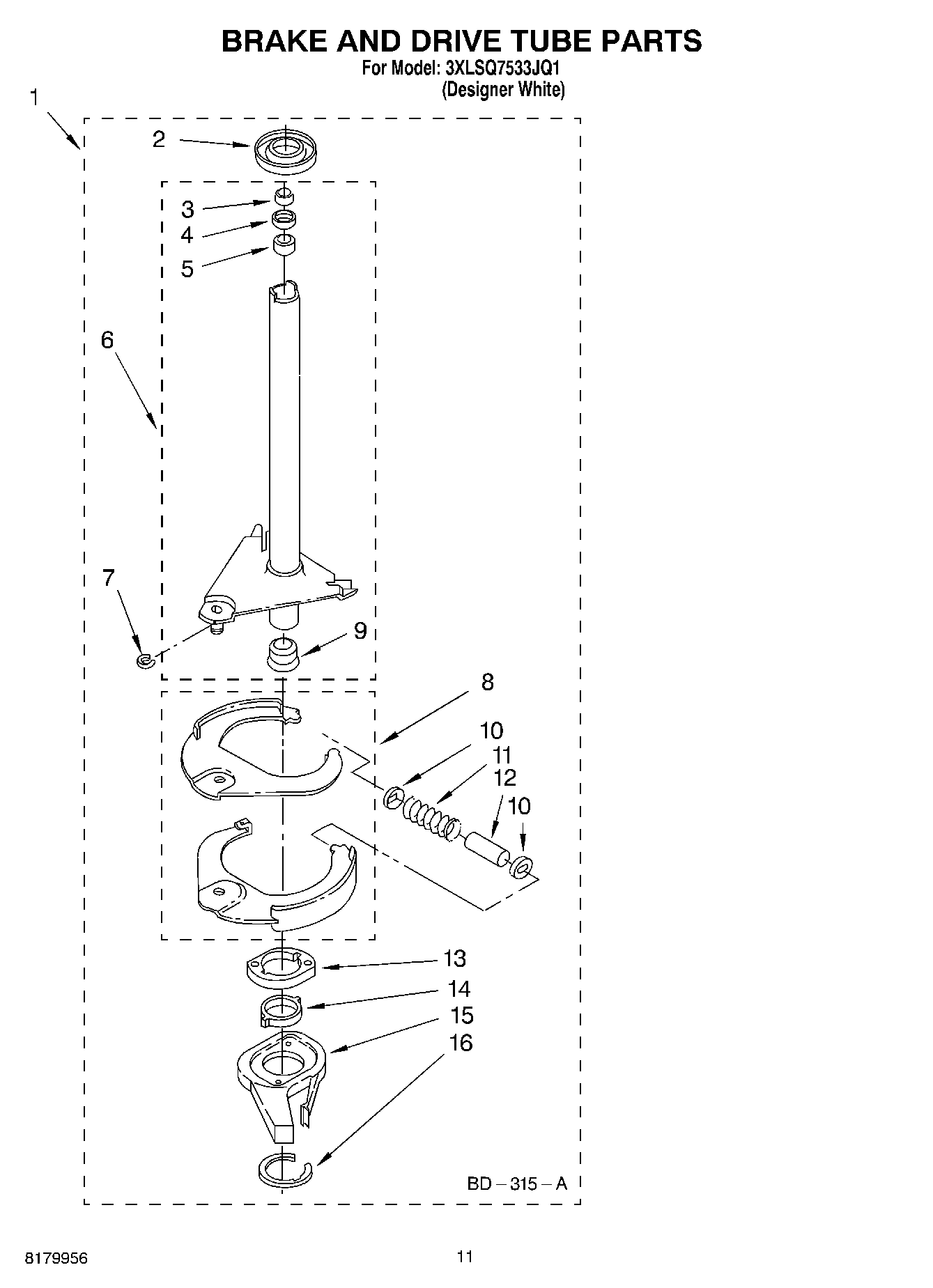

3XLSQ7533JQ1 07 – BRAKE AND DRIVE TUBE PARTS

3XLSQ7533JQ1 07 – BRAKE AND DRIVE TUBE PARTS

Written by

in

3XLSQ7533JQ1 07 – BRAKE AND DRIVE TUBE PARTS

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP62658 Whirlpool Seal Ring
3WP91939 Whirlpool Shaft Seal
4WP356427 Whirlpool Shaft Seal
5Spacer, Drive Tube
6WP64208 Whirlpool Spin Tube
7W10083190 Whirlpool Ring-E
8285438 Whirlpool Brake Shoe
9WP8546462 Whirlpool Bearing
10285658 Whirlpool Sleeve Kit
11Spring, Brake
13WP8546461 Whirlpool Brake Cam Assembly
14WP63022 Whirlpool Sleeve
15285790 Whirlpool Washer Clutch Band and Lining Kit
16WPW10083200 Whirlpool Wire Ring
16LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
16FOLLOWING PARTS NOT ILLUSTRATED
