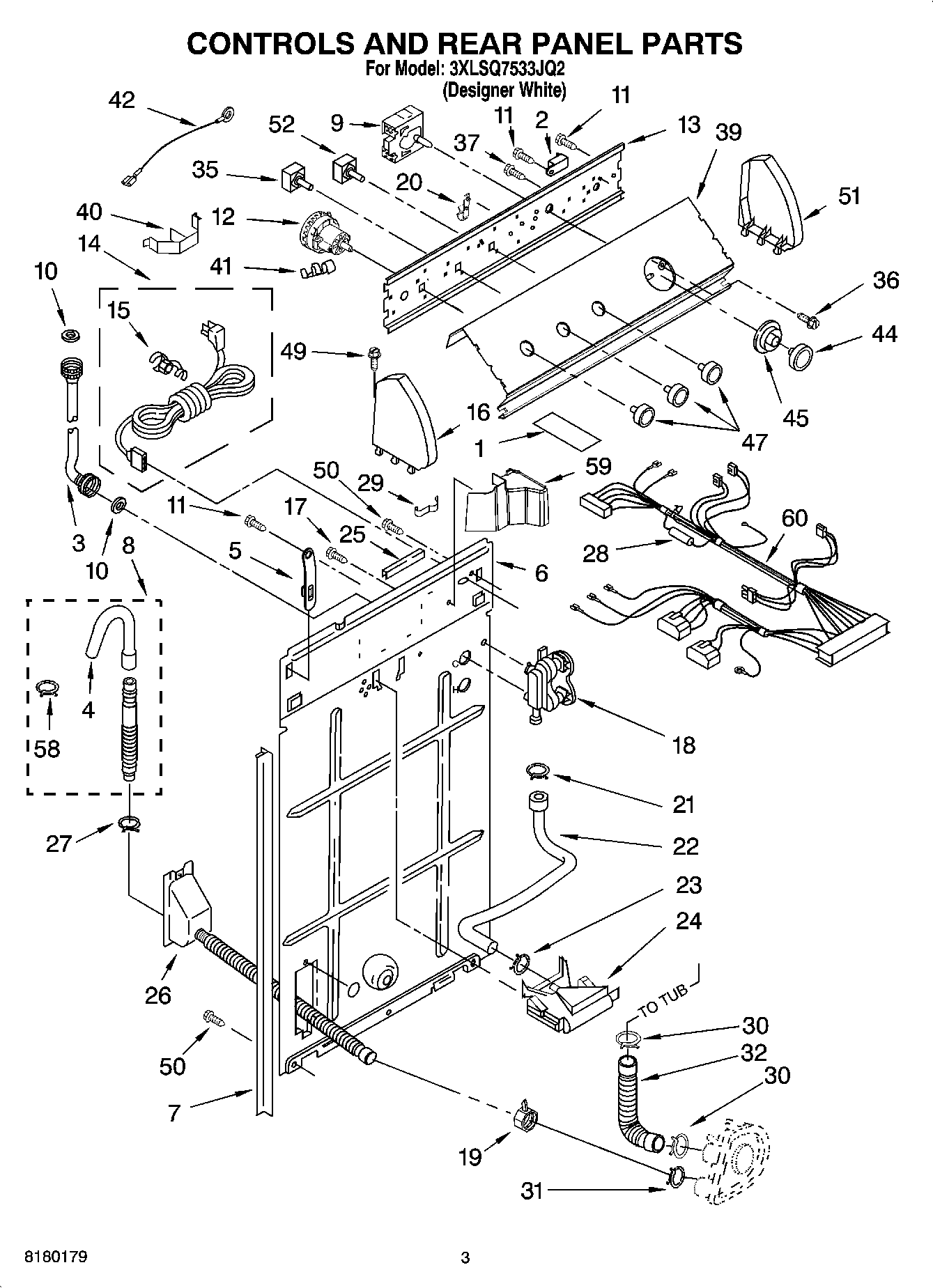

3XLSQ7533JQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Extension, Shield
23952439 Whirlpool Buzzer
3WPW10615809 Whirlpool Fill Hose
3WPW10615831 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10WP16123 Whirlpool Washer
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
19Clamp, Hose
20Retainer, Harness
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WPW10111181 Whirlpool Fuse Assembly
298528351 Whirlpool Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37Screw (6)
39Panel, Console
40Clip, Harness & Pressure Hose
41W10113937 Whirlpool Clamp
42Wire, Ground
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52WPW10168257 Whirlpool Cycle Switch
58WP3357331 Whirlpool Clamp
59Sh
60WPL 3956871
