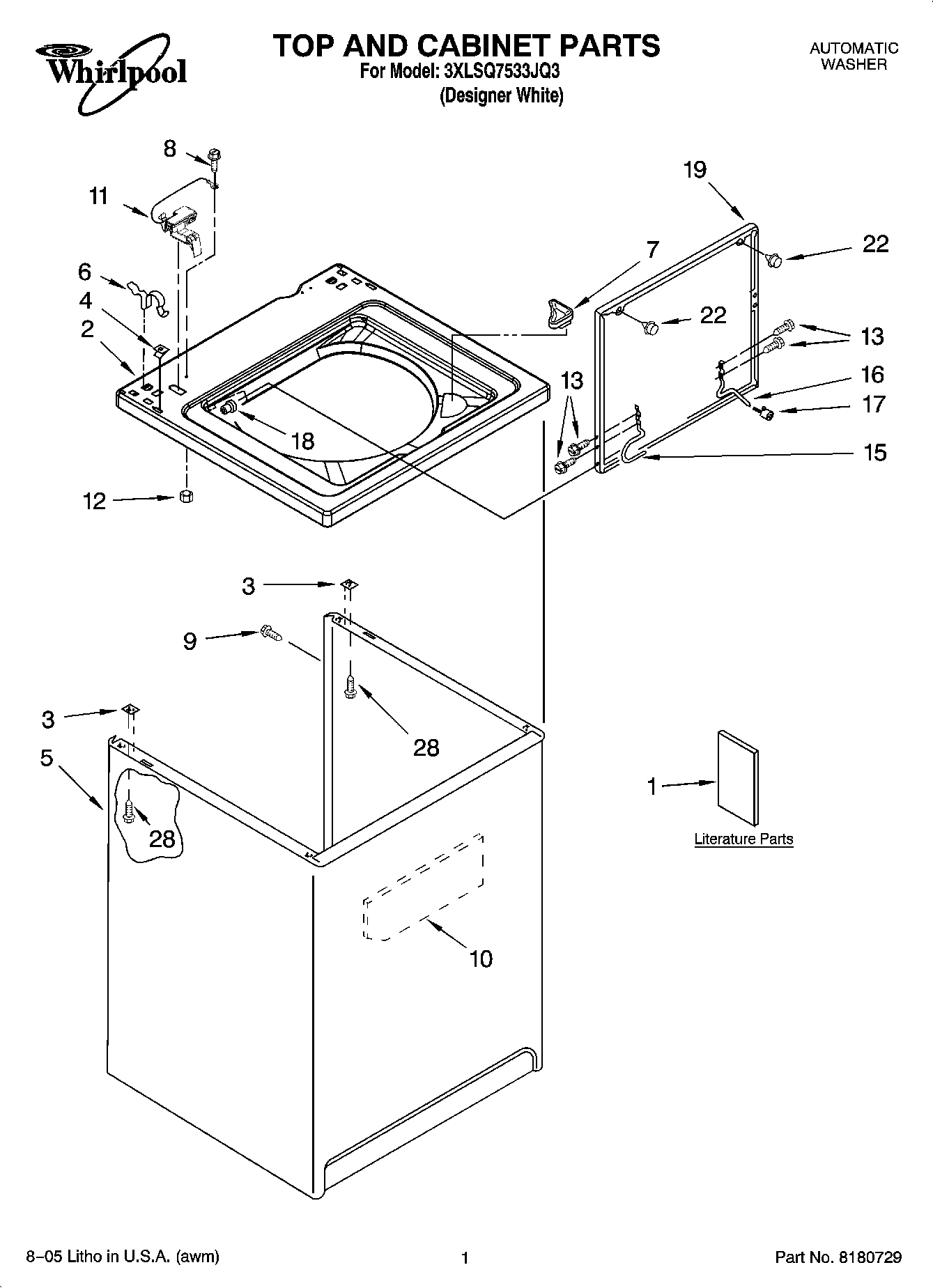

3XLSQ7533JQ3 01 – TOP AND CABINET PARTS

3XLSQ7533JQ3 01 – TOP AND CABINET PARTS

Written by

in

3XLSQ7533JQ3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10Cabinet – Sound Damper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12W10080180 Whirlpool Nut
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
