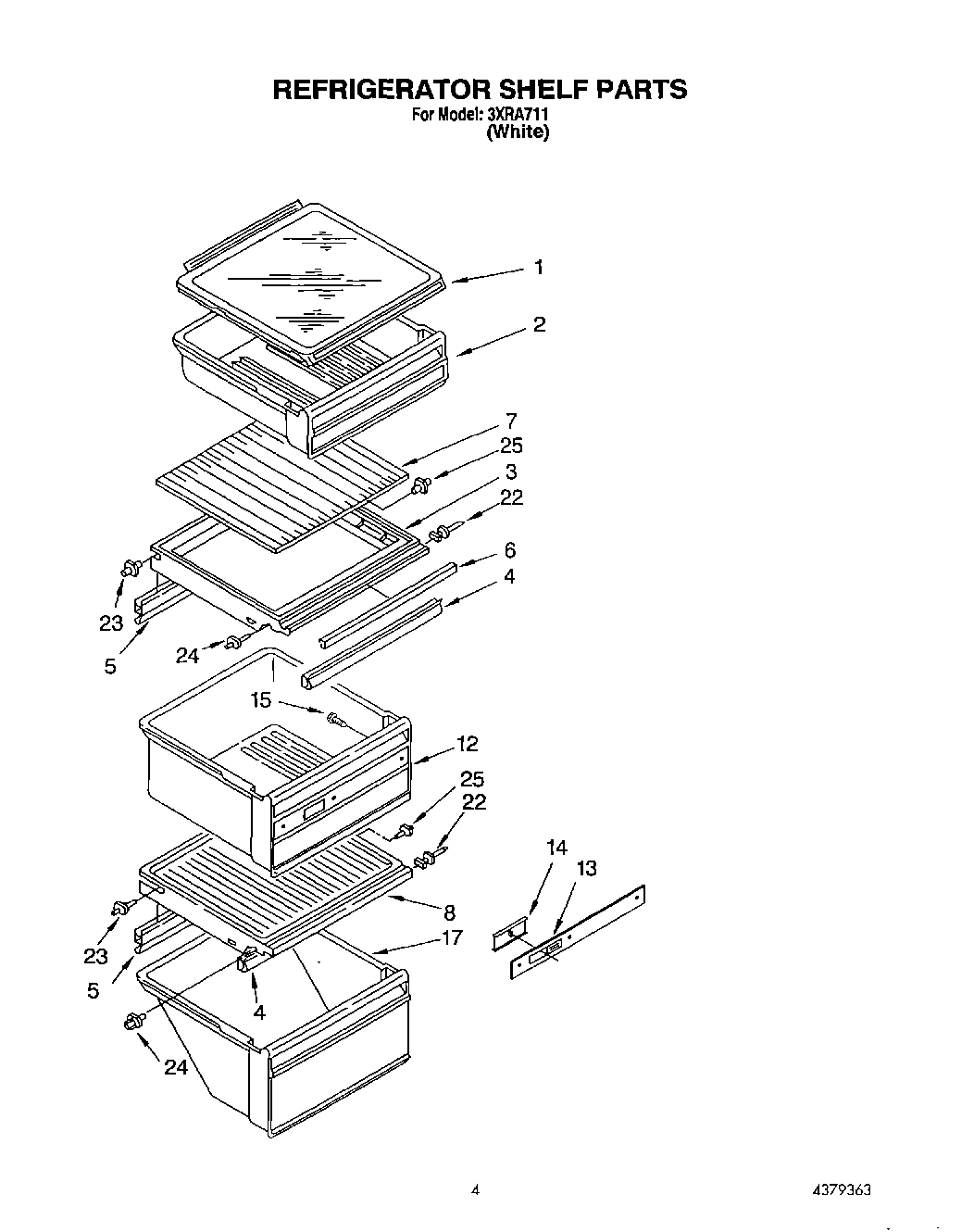

3XRA711 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Glass Sliding (3)
2	Snack Bin
3	WP1126289 Whirlpool Refrigerator Cover
4	Gasket, Crisper (Front)
5	Gasket, Crisper (Rear)
6	Trim, Crisper Cover
7	Glass, Crisper Cover
8	WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
12	Pan, Crisper
13	Front, Crisper Pan
14	Slide, Crisper
15	Screw (6)
17	Meat Pan
23	Stud (2)
24	WP2149540 Whirlpool Shelf Support
25	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
