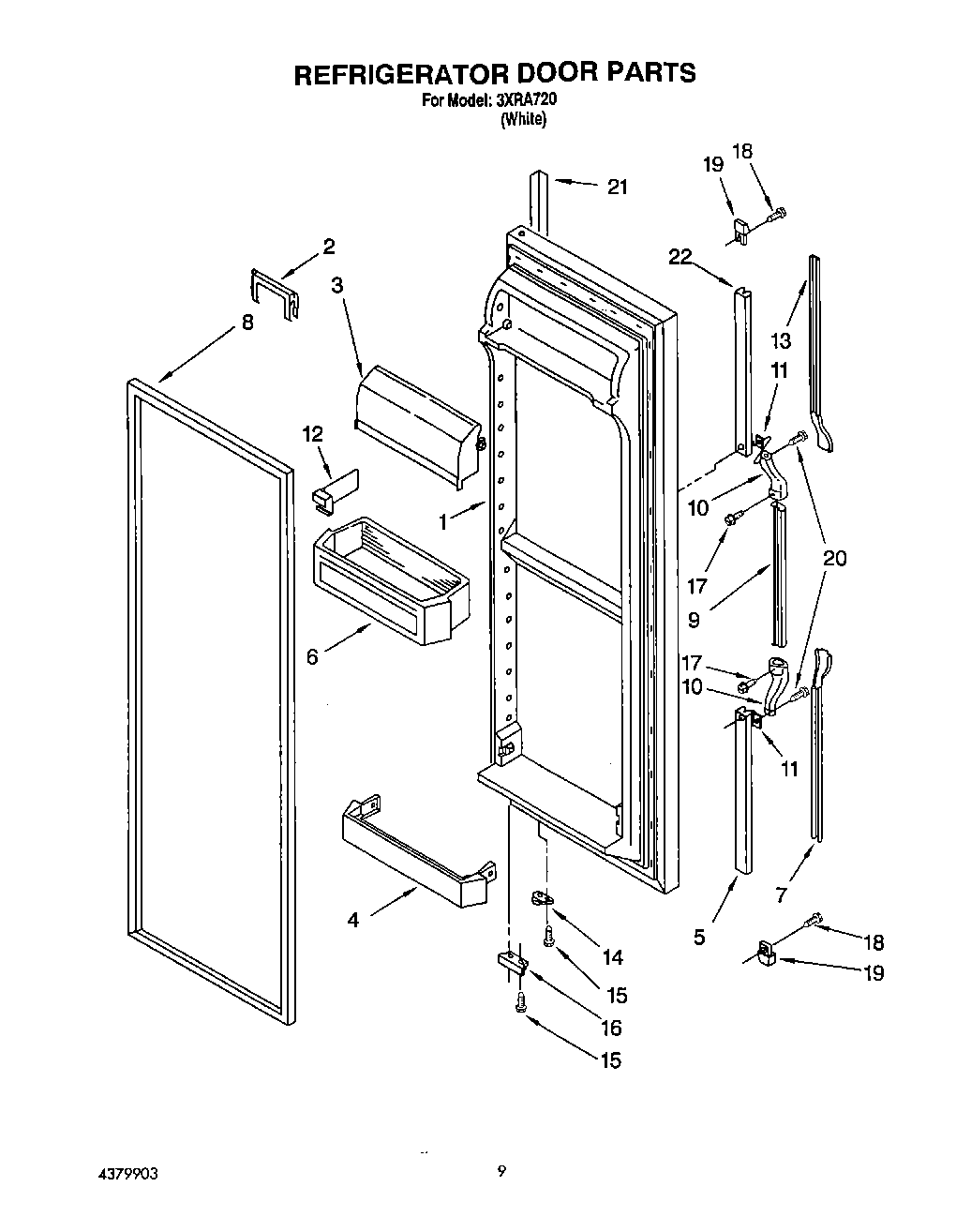

3XRA720 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	Retainer, Insert (Bottom)
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Insert, Handle (White)
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (White)
10	End Cap, Center Handle
11	Shim
12	WPL 2171284
13	Insert, Handle (White)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
17	Screw
18	Screw
19	End Cap (2)
21	Trim, Door
22	Retainer, Insert
