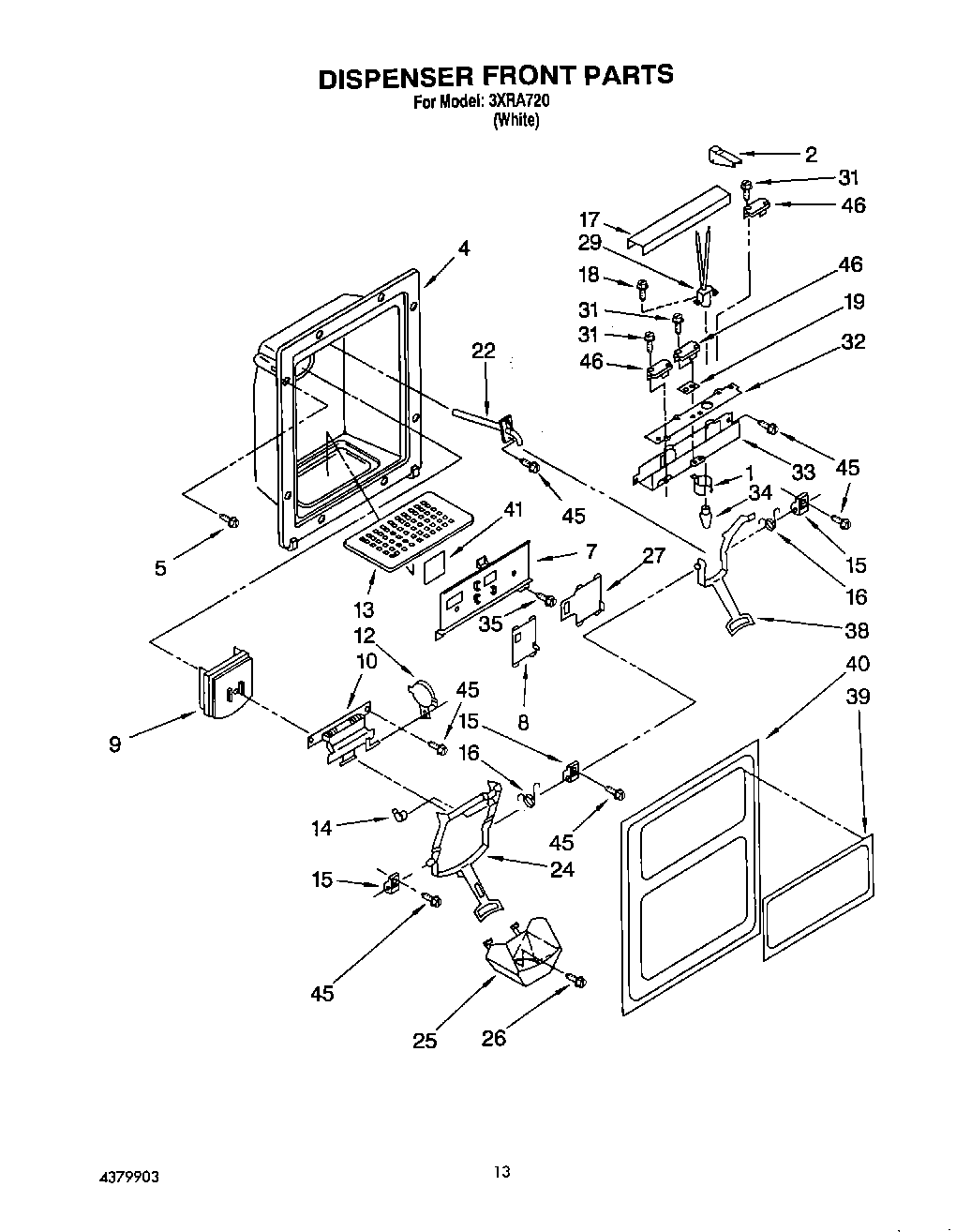

3XRA720 08 – DISPENSER FRONT

Products

PositionProduct
1Shroud, Bracket
2Cover, Switch
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
7Frame, Slides
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (White)
25Guide, Ice
26Screw
27Slide, Light Switch
29Lamp Holder
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34Bulb, Light
35WP489069 Whirlpool Compactor Screw
38Lever, Water Dispenser (White)
39Plaque, Front Cover
40Front Cover, Housing (Includes Item 39)
41Heat Shield, Frame
45WP3400906 Whirlpool Refrigerator Screw
46WP2162361 Whirlpool Switch
