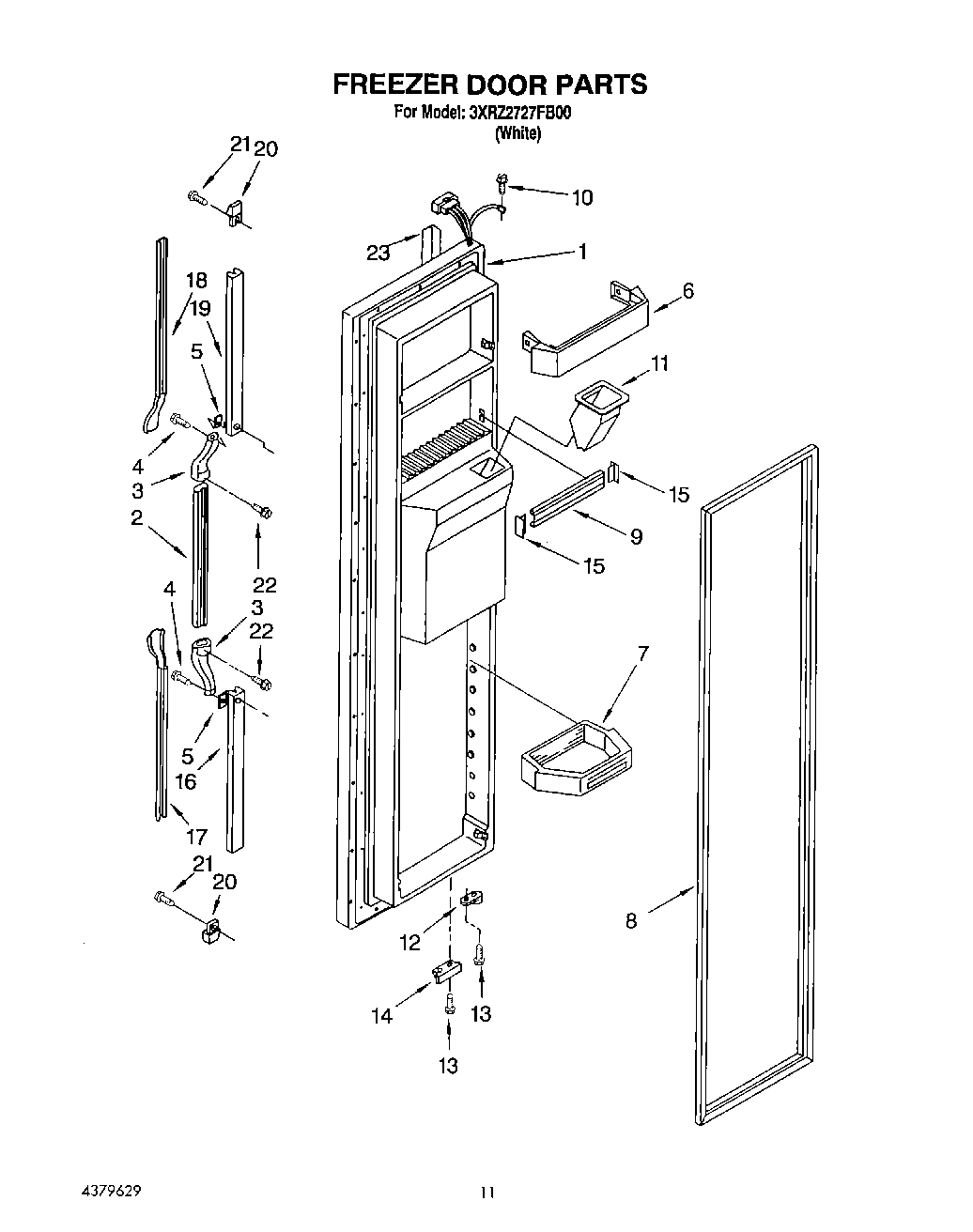

3XRZ2727FB00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle, Center
3	End Cap, Center Handle
5	Shim
6	Trivet, Door Shelf
7	Shelf Bin (2)
8	2159074 Whirlpool Door Gasket Seal
9	Trim, Door Shelf
10	WP488234 Whirlpool Air Conditioner Screw
11	Chute, Ice
12	4318165 Whirlpool Refrigerator Door Closure Cam Kit
13	WP999367 Whirlpool Refrigerator Screw
14	Bracket, Door Stop
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	Retainer, Insert (Bottom)
17	Insert, Handle (Black)
18	Insert, Handle (Black)
19	Retainer, Insert
20	End Cap (2)
21	Screw
22	Screw
23	Trim, Door
