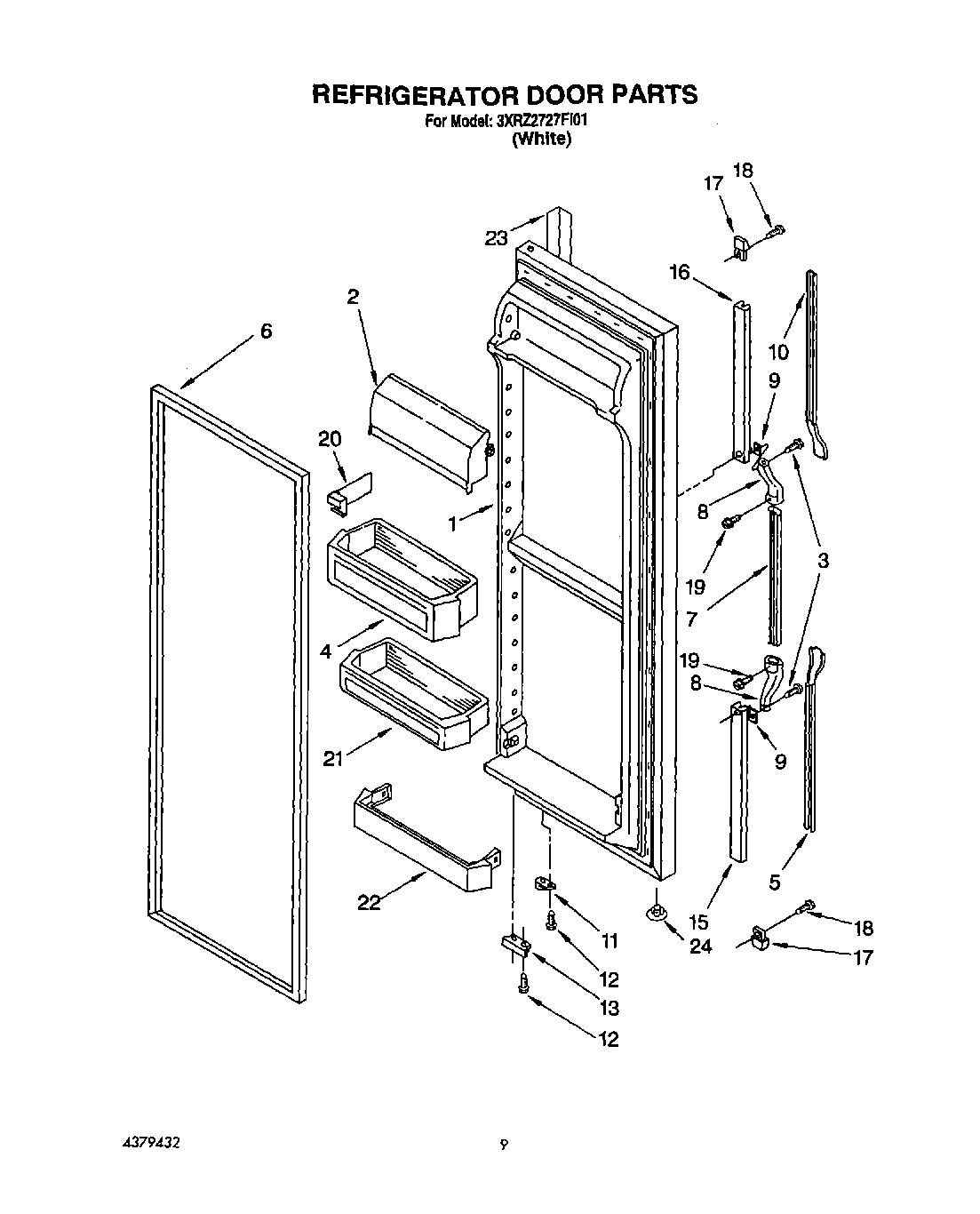

3XRZ2727FI01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
2	WP2256101 Whirlpool Dairy Door
4	Shelf Bin (2)
5	Insert, Handle (Black)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center
8	End Cap, Center Handle
9	Shim
10	Insert, Handle (Black)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP999367 Whirlpool Refrigerator Screw
13	Bracket, Door Stop
15	Retainer, Insert (Bottom)
16	Retainer, Insert
17	End Cap (2)
18	Screw
19	Screw
20	Divider (3)
21	Shelf Bin (2)
22	WP2177962K Whirlpool Refrigerator Door Trim
23	Trim, Door
24	Hole Plug (6) (Almond)
