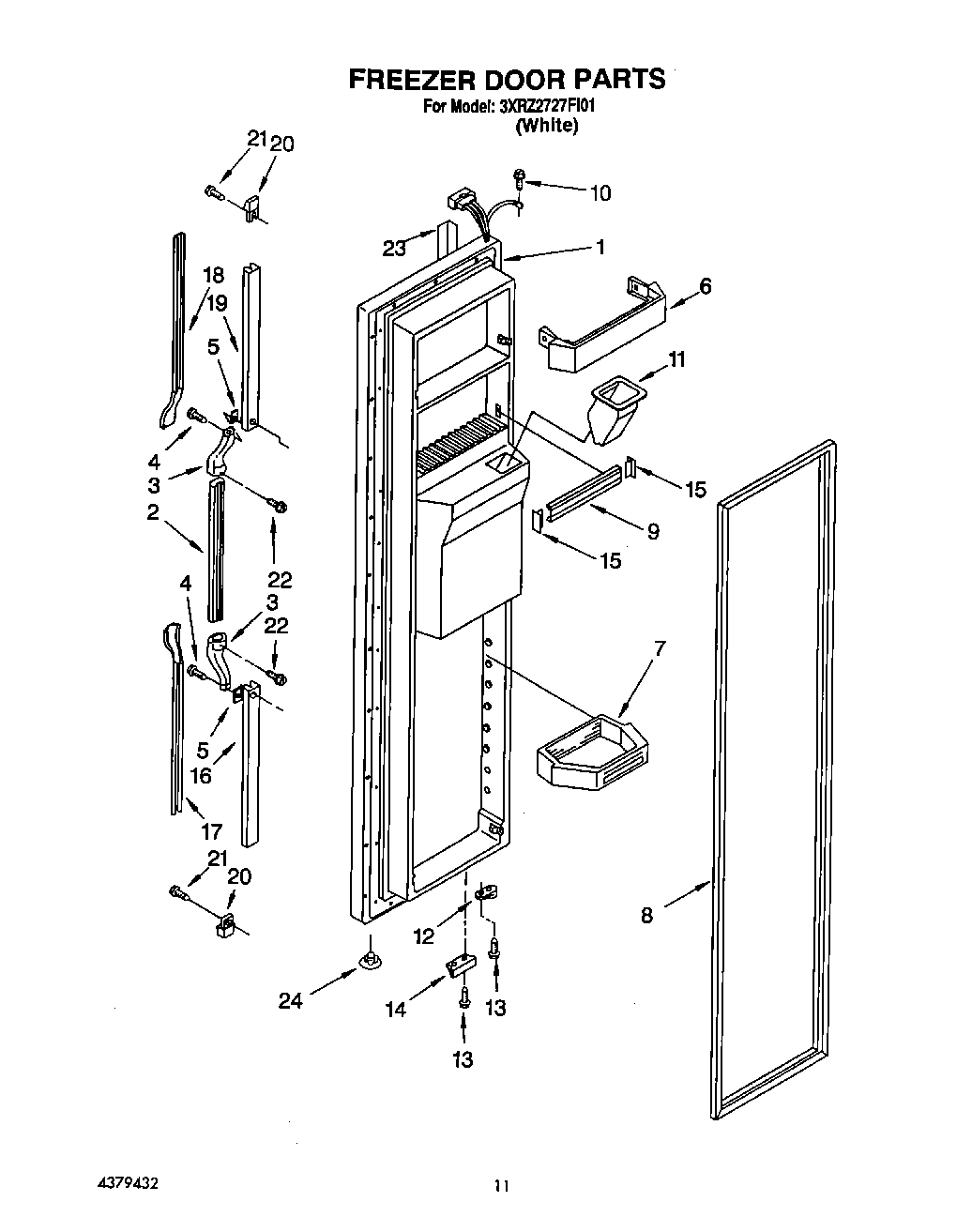

3XRZ2727FI01 07 – FREEZER DOORadmin2025-04-26T11:32:28+00:003XRZ2727FI01 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) |
| 2 | Handle, Center |
| 3 | End Cap, Center Handle |
| 5 | Shim |
| 6 | Trivet, Door Shelf |
| 7 | Shelf Bin (2) |
| 8 | 2159074 Whirlpool Door Gasket Seal |
| 9 | Trim, Door Shelf |
| 10 | WP488234 Whirlpool Air Conditioner Screw |
| 11 | Chute, Ice |
| 12 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 13 | WP999367 Whirlpool Refrigerator Screw |
| 14 | Bracket, Door Stop |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 16 | Retainer, Insert (Bottom) |
| 17 | Insert, Handle (Black) |
| 18 | Insert, Handle (Black) |
| 19 | Retainer, Insert |
| 20 | End Cap (2) |
| 21 | Screw |
| 22 | Screw |
| 23 | Trim, Door |
| 24 | Hole Plug (6) (Almond) |
