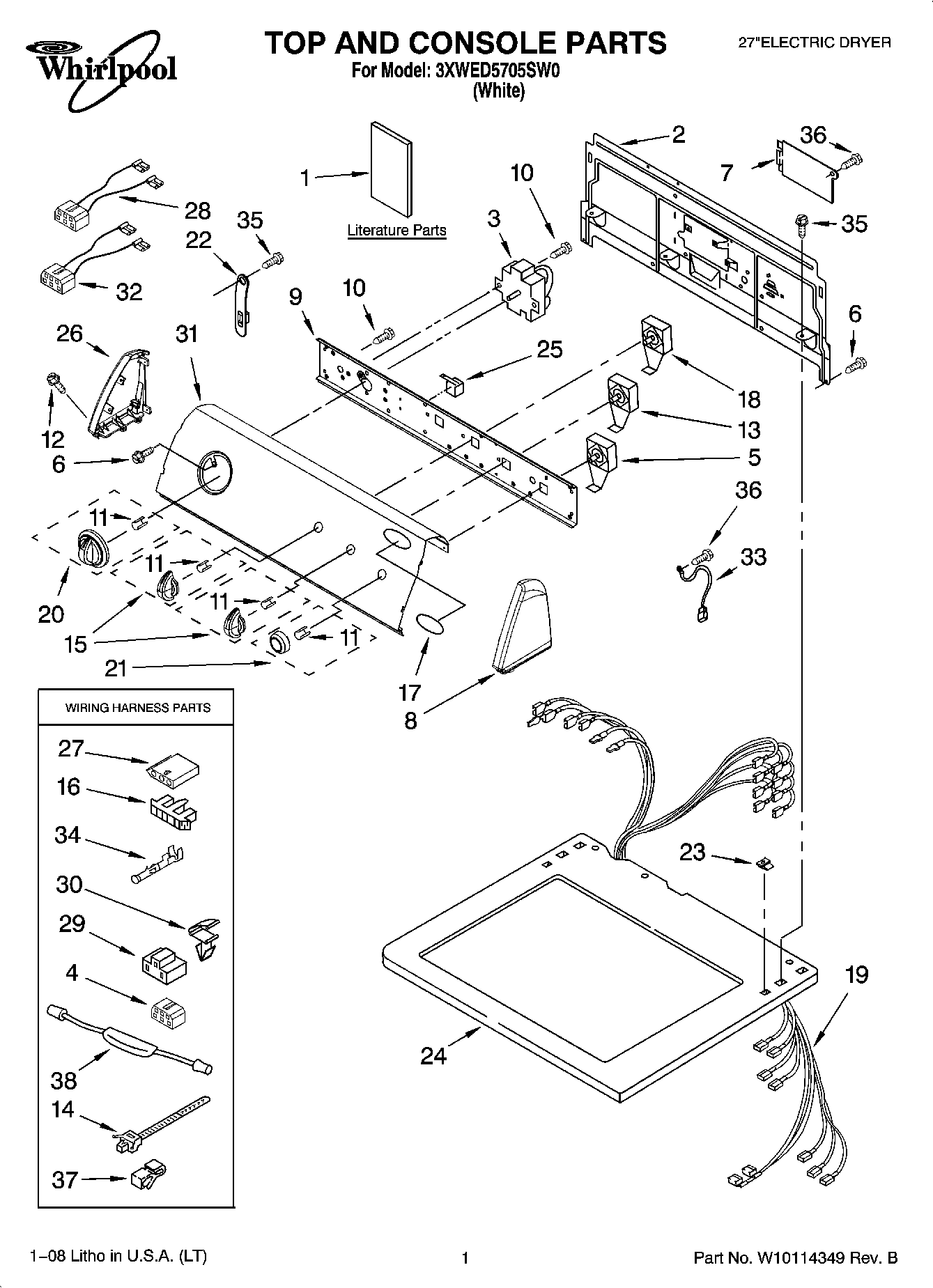

3XWED5705SW0 01 – TOP AND CONSOLE PARTS

3XWED5705SW0 01 – TOP AND CONSOLE PARTS

Written by

in

3XWED5705SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Guide, Use & Care
1Instructions, Installation
1WPL 677818
2285909 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4Block, Disconnect
5WPW10112633 Whirlpool Relay Parts
7WPW10119283 Whirlpool Terminal Cover
8W10820038 Whirlpool Endcap
9Bracket, Control
103400859 Whirlpool Screw
11WP8536939 Whirlpool Spring Clip
12WP388326 Whirlpool Screw
13W10168170 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15Knob, Control (3)
16Connector, Timer
17Medallion
18WP3399639 Whirlpool Switch
19HARNS-WIRE
20TIMER KNOB ASSEMBLY
21WPW10034790 Whirlpool Knob
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
25Buzzer, Mini
273936144 Whirlpool Connector
28Wire, Jumper (Guard On/Off)
293401144 Whirlpool Connector
30WP3394427 Whirlpool Clip
31Panel, Control
32Wire, Jumper Assembly
33Wire, Ground
34WP94614 Whirlpool Terminal
35WP488729 Whirlpool Refrigerator Door Screw
36303776 Whirlpool Dishwasher Screw
37W10113937 Whirlpool Clamp
38279872 Whirlpool Resistor
