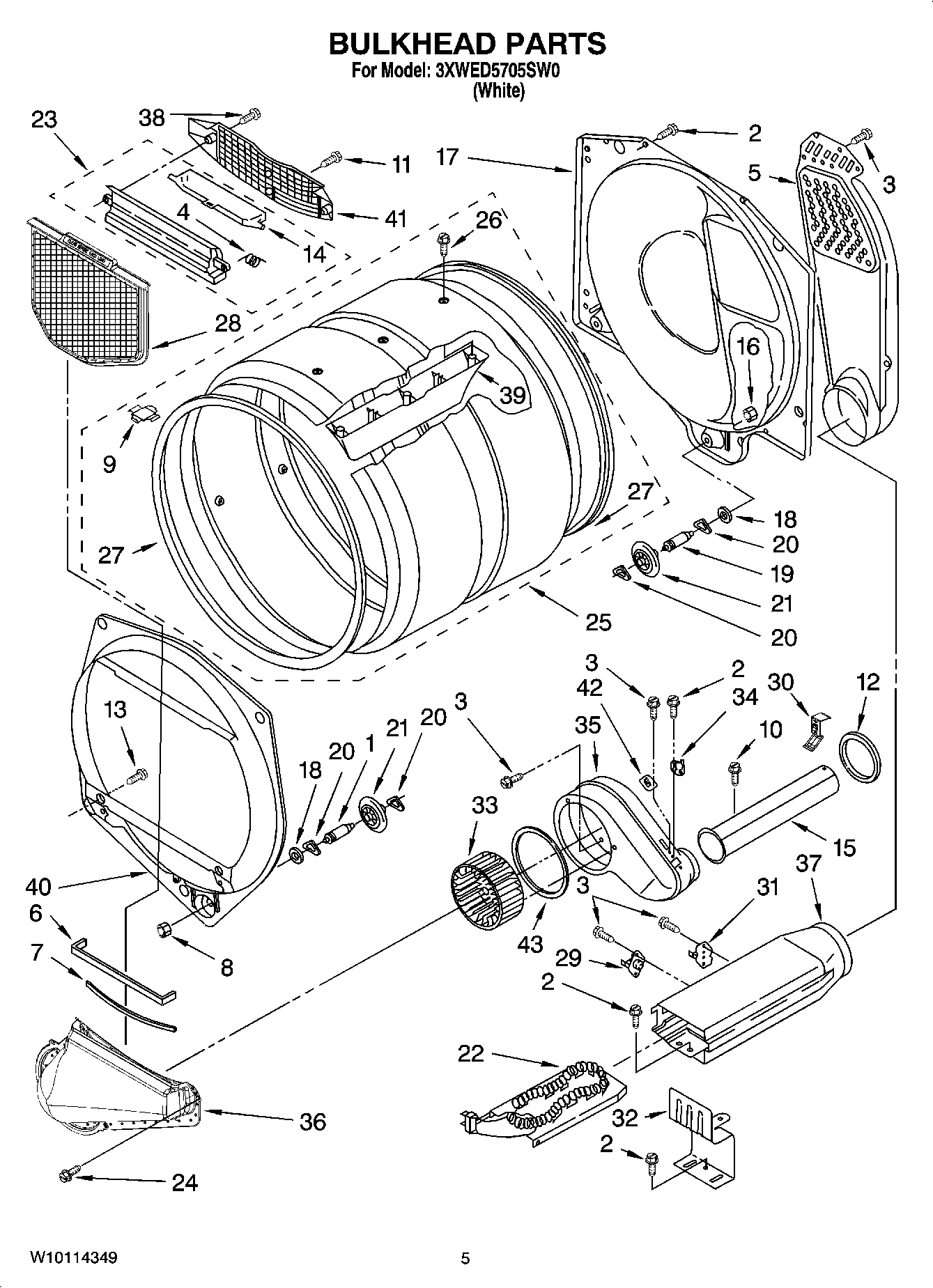

3XWED5705SW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

3XWED5705SW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3XWED5705SW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	W11224254 Whirlpool Test Kit
	ACCESSORY PARTS
	4392067 Whirlpool Dryer Repair Kit
	8212450A Whirlpool Dryer Rack Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
4	WP3394986 Whirlpool Spring
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	8066086 Whirlpool Plug
10	WP90767 Whirlpool Screw
12	W11233063 Whirlpool Shield Assembly
13	WP3387230 Whirlpool Screw
14	W11222846 Whirlpool Door
15	Exhaust Pipe
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	Heater Element
23	W11129408 Whirlpool Out Housing
24	WP489463 Whirlpool Refrigerator Screw
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10120998 Whirlpool Dryer Lint Screen Filter
29	WP3390291 Whirlpool High Limit Thermostat
30	W11684573 Whirlpool Clip Assembly
31	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
32	8066099 Whirlpool Bracket
33	WHEEL
34	WP3387137 Whirlpool Thermostat
35	W10888146 Whirlpool Housing
36	WPW10128606 Whirlpool Lint Duct
37	W10802681 Whirlpool Box Assembly
38	WP308685 Whirlpool Microwave Screw
39	WPW10113136 Whirlpool Drum Baffle
40	WP697557 Whirlpool Bulkhead Assembly
41	W11086603 Whirlpool Dryer Link Screen Air Grille
42	WP3392519 Whirlpool Dryer Thermal Fuse
43	WP697770 Whirlpool Blower Cover Plate Seal
