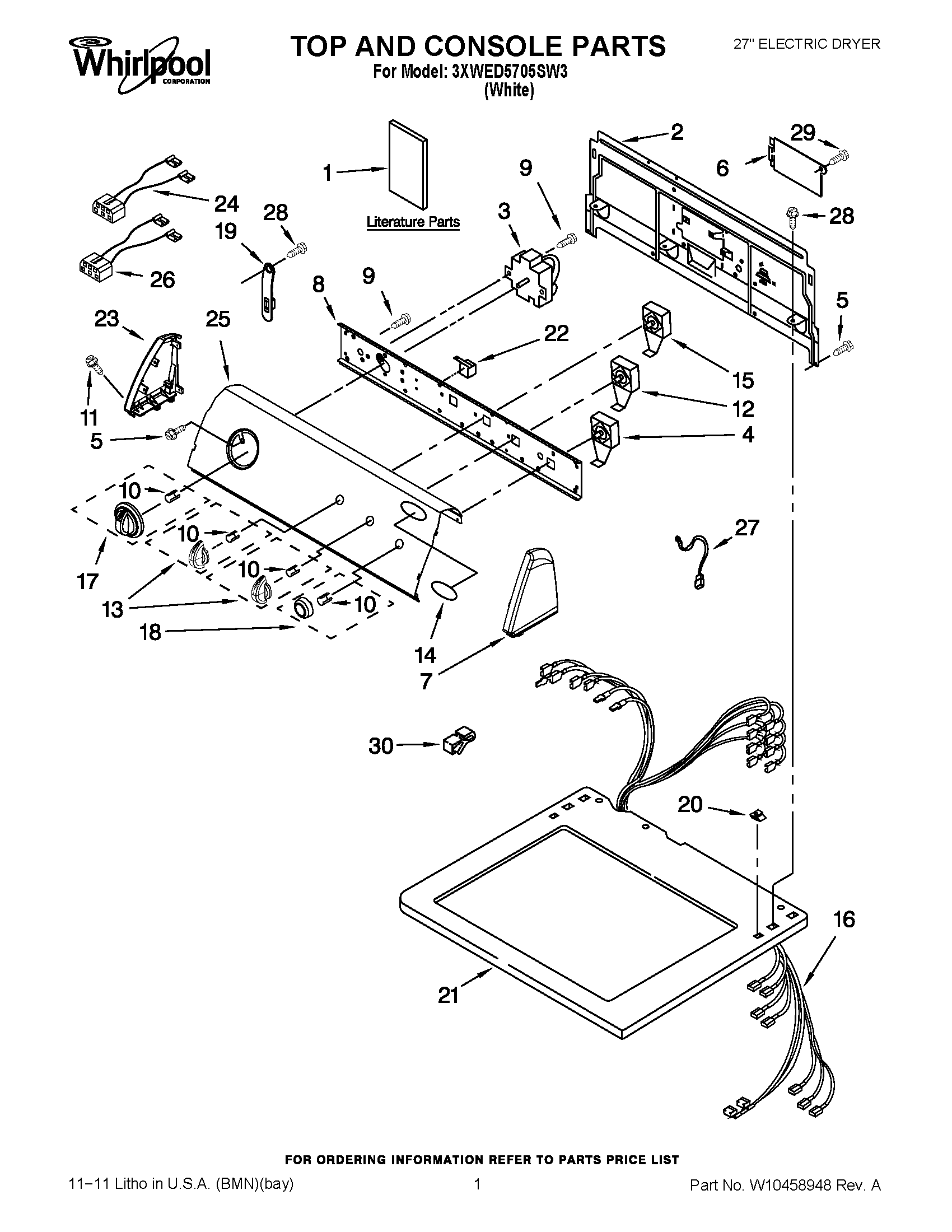

3XWED5705SW3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation
1	Guide, Use & Care
1	WIRING DIAGRAM
2	285909 Whirlpool Rear Panel
3	WPW10116281 Whirlpool Timer
4	W10238464 Whirlpool Relay Parts
6	Cover, Terminal Block
7	W10820038 Whirlpool Endcap
8	Bracket, Control
9	3400859 Whirlpool Screw
10	WP8536939 Whirlpool Spring Clip
11	WP388326 Whirlpool Screw
12	W10168170 Whirlpool Switch
13	Knob, Control (3)
14	Medallion
15	W11235848 Whirlpool Switch
16	HARNESS, WIRING
17	TIMER KNOB ASSEMBLY
18	WPW10034790 Whirlpool Knob
19	WP8568314 Whirlpool Strap
20	WP357213 Whirlpool Hinge Stopper
21	Top
22	Buzzer, Mini
24	Wire, Jumper (Guard On/Off)
25	Panel, Control
26	Wire, Jumper Assembly
27	GROUND WIRE
28	WP488729 Whirlpool Refrigerator Door Screw
29	303776 Whirlpool Dishwasher Screw
30	W10113937 Whirlpool Clamp
