  • 3XWED5705SW3 02 – CABINET PARTS

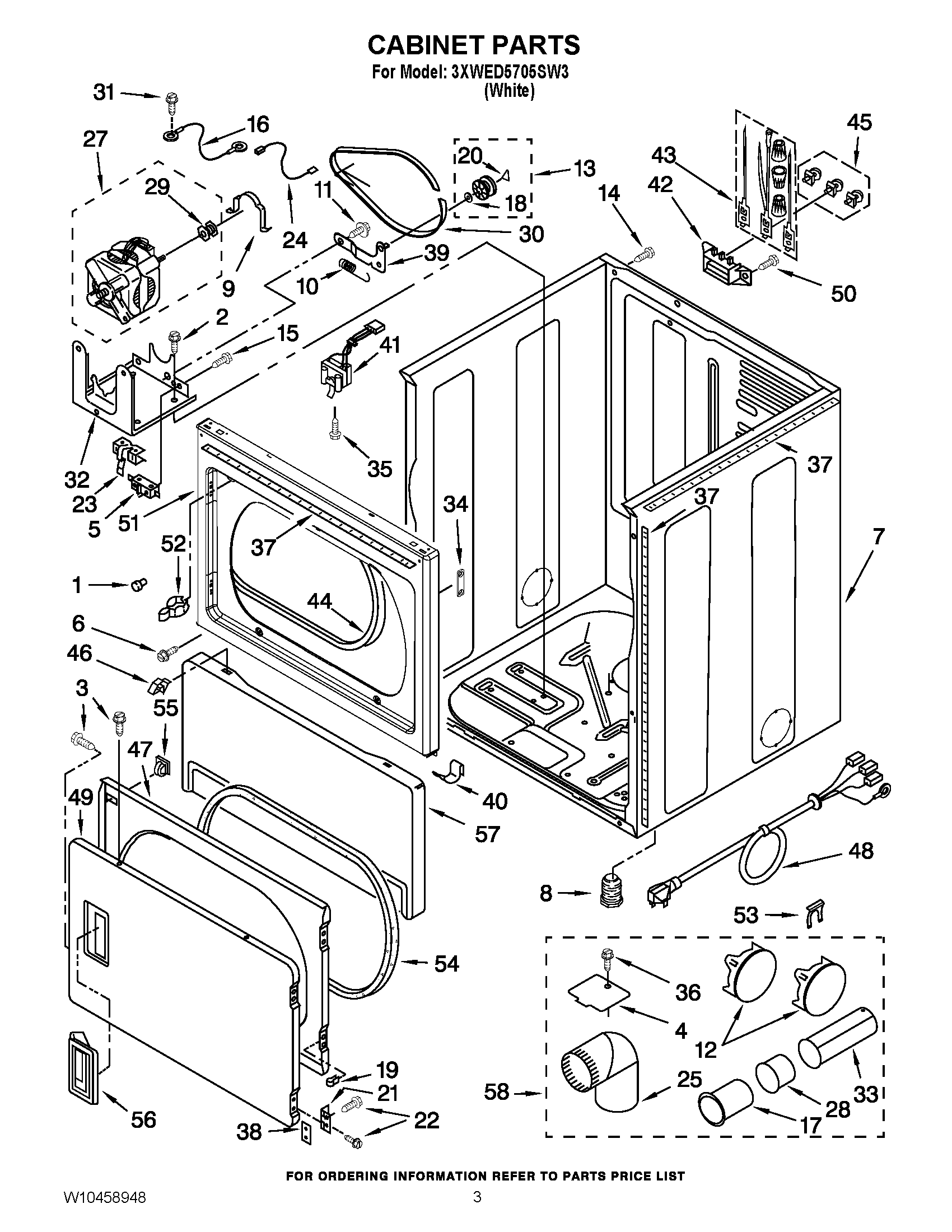

3XWED5705SW3 02 – CABINET PARTS

3XWED5705SW3 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1693152 Whirlpool Bumper
2303776 Whirlpool Dishwasher Screw
3WP90767 Whirlpool Screw
4WPW10354249 Whirlpool Cover
5WP8318457 Whirlpool Switch Plug
6W10891954 Whirlpool Screw
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14W10850756 Whirlpool Screw
153400934 Whirlpool Screw
16Wire, Ground
17WP8563747 Whirlpool Exhaust Pipe
18WPW10121334 Whirlpool Washer
19Nut, ``U`` (4)
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10279703 Whirlpool Hinge Assembly
22WP488627 Whirlpool Refrigerator Screw
23WP8066120 Whirlpool Lever Assembly
24Wire, Belt Switch
25WPW10416072 Whirlpool Elbow
27W10416573 Whirlpool Drive Motor
28WPW10331278 Whirlpool Exhaust Pipe
293402548 Whirlpool Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31SCREW
32WP3387118 Whirlpool Base Assembly
33WP8563749 Whirlpool Exhaust Pipe
34W10191265 Whirlpool Plug
35WP3395530 Whirlpool Screw
36WP693995 Whirlpool Screw
37Seal, Foam
38WP3390902 Whirlpool Clip
39W10837240 Whirlpool Dryer Idler Pulley
40WPW10291934 Whirlpool Clip
41SWITCH-DOOR DRYER
42WP3397659 Whirlpool Terminal Block
43279318 Whirlpool Terminal
44WP3387242 Whirlpool Seal
45279393 Whirlpool Terminal Block Screw and Nut Kit
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48Cord, Power
49W11663440 Whirlpool Door
50WP308685 Whirlpool Microwave Screw
51PANEL, FRONT (WHITE)
53W11712577 Whirlpool Clip
54WP3390735 Whirlpool Door Seal
55279570 Whirlpool Dryer Door Latch Kit
563389522 Whirlpool Handle
57WP3406797 Whirlpool Toe Panel
